CHAPTER 2. REMOVING OF MAJOR PARTS
[2.1] REMOVING OF MAJOR PARTS(LC-19S7E-BK)
1. Assy/Panel Removal
Notes: Please put your machine on soft material to avoid to scrape panel when you disassemble it.

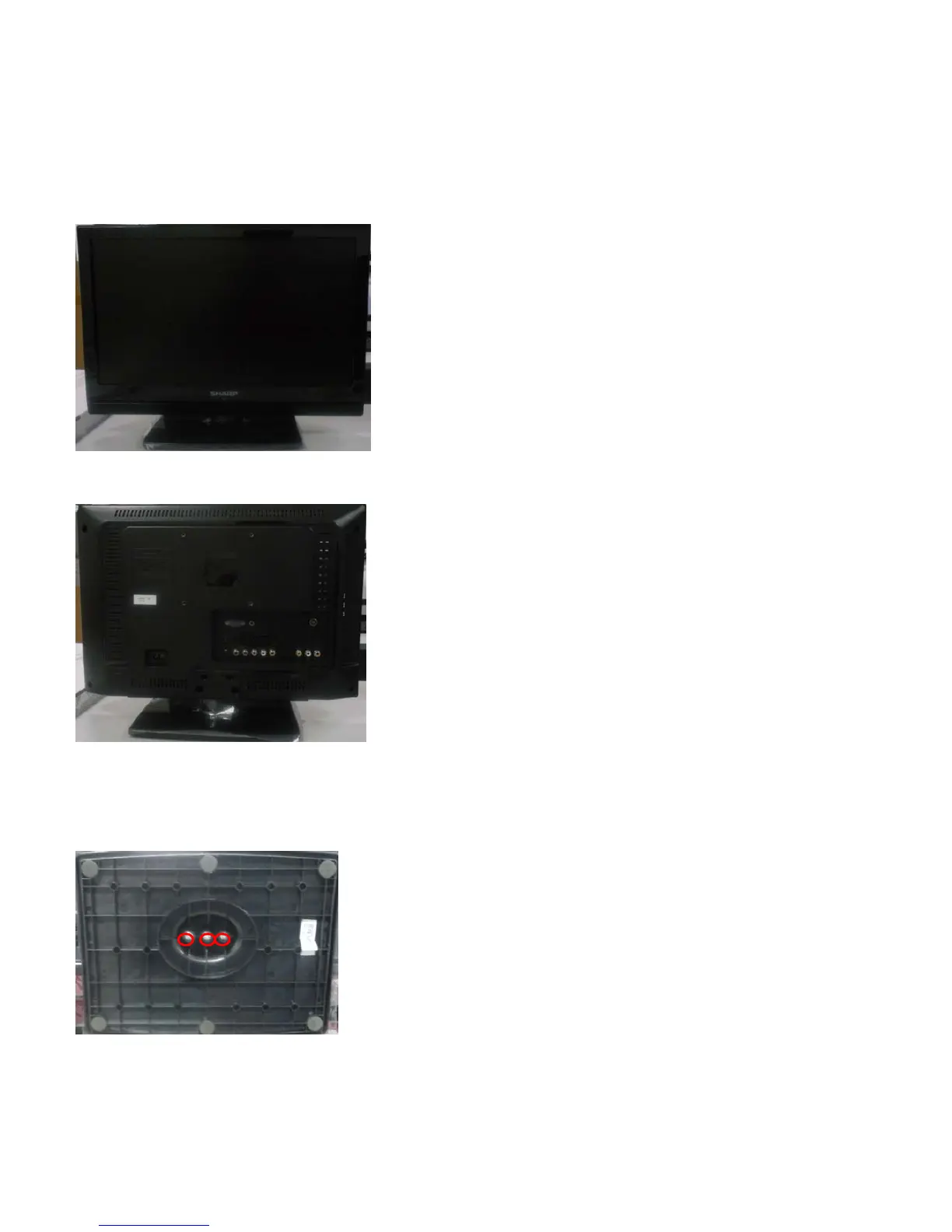

Front view
Fig.1
Back view
Fig.2
Step 1. Remove the Base Assy.
1. Remove the base as Fig.3.
Remove the 3 screws and pull out the base plate as Fig.3
Fig.3
2. Remove the 4 screws. Detach the BASE STAND as Fig.4.

Sharp LC-26S7E-BK Specifications

General

Game mode	No
Teletext function	Yes
Display diagonal	26 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Viewing angle, vertical	150 °
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
RS-232 ports	0
Headphone outputs	1
SCART ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	200 x 100 mm
Power consumption (sleep)	0.19 W
Power consumption (standby)	0.21 W
Power consumption (typical)	67.6 W
RMS rated power	10 W
Tuner type	Analog

Weight and Dimensions

Depth (with stand)	239.8 mm
Width (with stand)	657.8 mm
Height (with stand)	491.1 mm
Weight (with stand)	8400 g
Depth (without stand)	91.6 mm
Height (without stand)	448.4 mm
