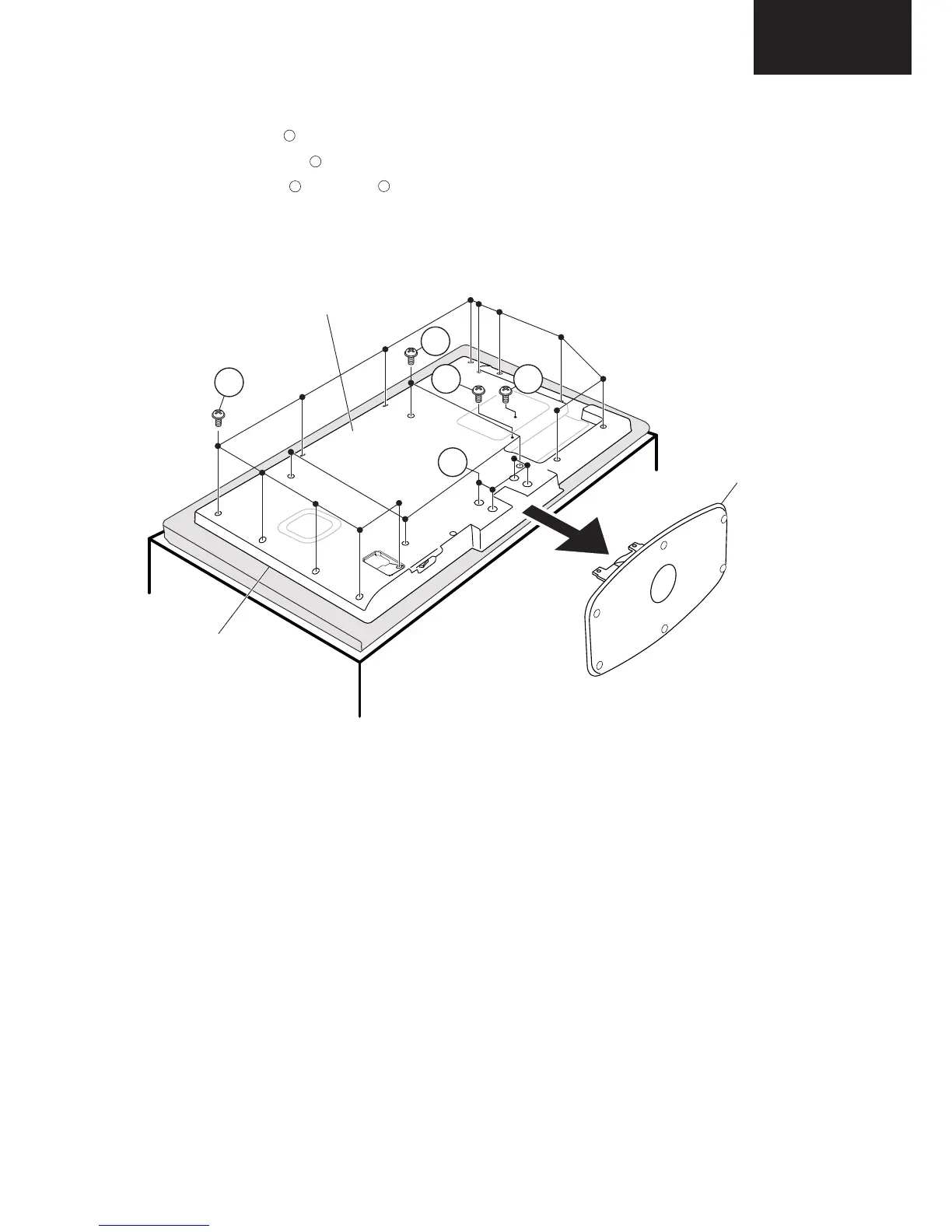

4.3.8 Removing of major Parts 40”
1. Remove the 4 lock screws and detach the Stand.
2. Remove the 4 screw hole plugs .
1
4
3
Stand
3. Remove the 14 lock screws , 1 lock screw and detach the Rear Cabinet.
2
Rear
Cabinet
Front Cabinet
2
1
3
3
4
