68
LC-32LE63x
LC-40LE63x
LC-46LE63x
Alignments (continued)
6.5.1 SSB identification
Whenever ordering a new SSB, it should be noted that the
correct ordering number (12nc) of a SSB is located on a sticker
on the SSB. The format is <12nc SSB><serial number>. The
ordering number of a “Service” SSB is the same as the ordering
number of an initial “factory” SSB.

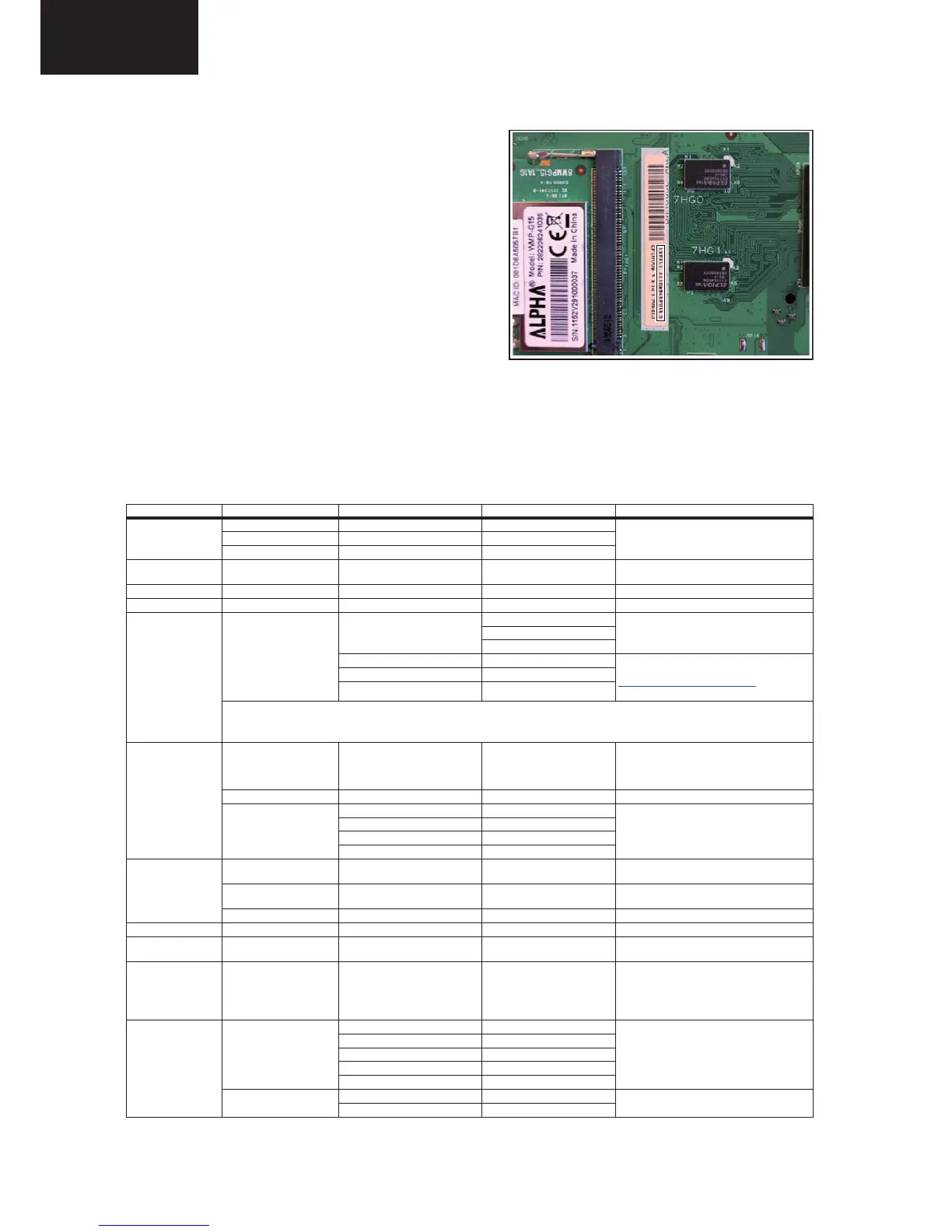

Figure 6-1 SSB identification
6.6 Total Overview SAM modes
Table 6-6 SAM mode overview
Main Menu Sub-menu 1 Sub-menu 2 Sub-menu 3 Description
Hardware Info A. SW version e.g. “Q5551_0.9.1.0 Display TV & Stand-by SW version and CTN serial
number
B. Stand-by processor version e.g. “STDBY_83.84.0.0”
C. Production code e.g. “see type plate”
Operation hours Displays the accumulated total of operation hours.TV
switched “on/off” & every 0.5 hours is increase one
Errors Displayed the most recent errors
Reset error buffer Clears all content in the error buffer
Alignment White point Colour temperature Normal 3 different modes of colour temperature can be
selected
Warn
Cool
White point red LCD White Point Alignment. For values,
see Table 6-3 White tone default setting 32"
(Blockbuster) to 6-5 White tone default setting 40"
(Blockbuster)
White point green
White point blue
Ambilight Select module
Brightness
Select matrix
Dealer options Virgin mode Off/On Select Virgin mode On/Off. TV starts up / does not
start up (once) with a language selection menu after
the mains switch is turned “on” for the first time (virgin
mode)
E-sticker Off/On Select E-sticker On/Off (USP’s on-screen)
Auto store mode None
PDC/VPS
TXT page
PDC/VPS/TXT
Option numbers Group 1 e.g. “00008.00001.15421.02239” The first line (group 1) indicates hardware options 1
to 4
Group 2 e.g. “44816.34311.33024.00000” The second line (group 2) indicates software options
5 to 8
Store Store after changing
Initialise NVM N.A.
Store Select Store in the SAM root menu after making any
changes
Operation hours display 0003 In case the display must be swapped for repair, you
can reset the “”Display operation hours” to “0”. So,
this one does keeps up the lifetime of the display
itself (mainly to compensate the degeneration
behaviour)
Software maintenance Software events Display Display information is for development purposes
Clear
Test reboot
Test cold reboot
Test application crash
Hardware events Display Display information is for development purposes
Clear
“S5551_0.9.21.0”
“STDBY_89.167.5.0”
LCD White Point Alignment. For values, see
Table 6-1 White D alignment values
