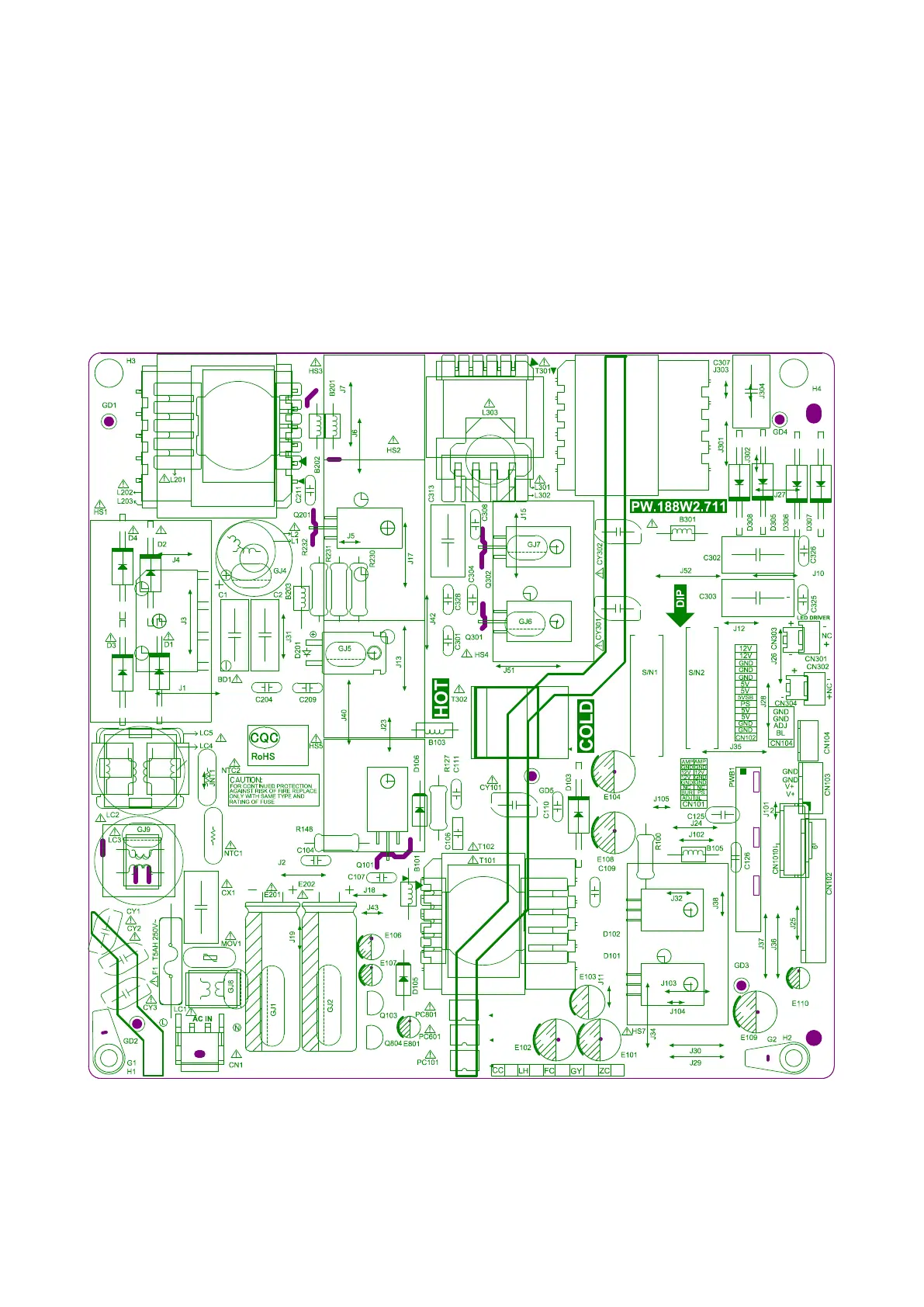

3.16 PCB layout of Power board - PW.188W2.711
- for models: LC-43CUF8472ES, LC-49CUF8372ES, LC-49CUF8472ES, LC-55CUF8472ES,
LC-55CUF8372ES, LC-49CUG8362KS, LC-43CUG8461KS, LC-43CUG8462KS,
LC-49CUG8462KS, LC-55CUG8461KS, LC-55CUG8462KS
