Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-52LE640U/C6400U)
1. Removing of Stand Unit and Rear Cabinet.
1. Remove the 4 lock screws and detach the Stand Unit .
2. Remove the 1 lock screw and detach the AC Cord Cover .
3. Disconnect AC wire and detach the AC Cord .
4. Remove the 4 VESA Hole Covers , 11 lock screws , 3 lock screws and 17 lock screws and detach the Rear Cabinet .
[Precaution when removing the rear cabinet]
If the rear cabinet is removed with the set upright, the speakers may fall; it results in connector disconnection. Therefore, never remove the rear cab-
inet with the set upright.
Be sure to remove the rear cabinet with the screen side down.
[Precaution when mounting the rear cabinet]
Put the speakers in place with the screen side down, and attach the rear cabinet.
Since the speakers are fixed by the rear cabinet, they cannot be fixed without the rear cabinet.

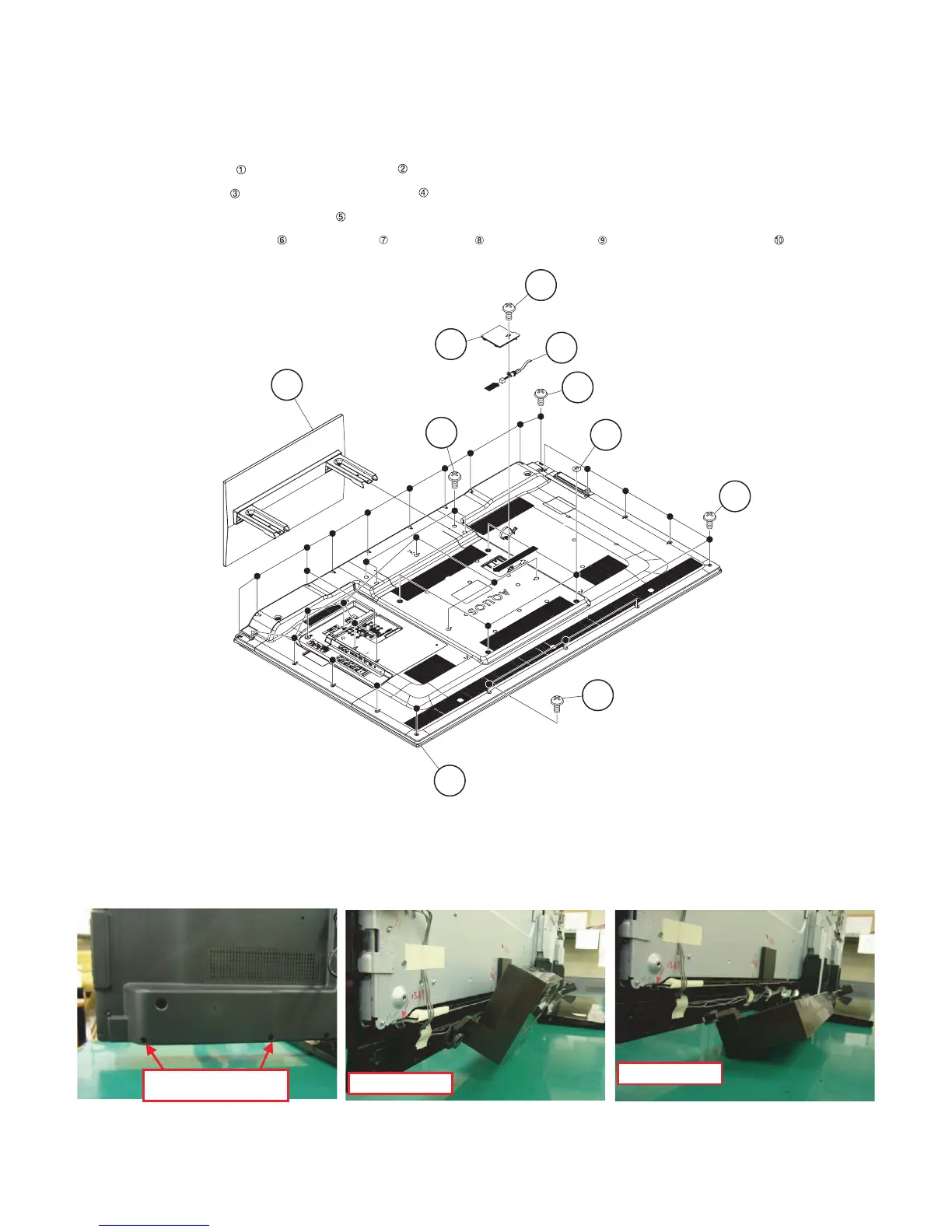

2Stand Unit
Rear Cabinet
10
4
AC Cord Cover
5
AC Cord
VESA Hole Cover
8
9
7
6
3
1
[AC]
[AC]
Screws for fixing Speaker
and Rear Cabinet
Speaker incline.
Speaker fall down.

Sharp LC-52LE640U Specifications

General

Display diagonal	52 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	120 Hz
Supported video modes	1080p
Viewing angle, vertical	176 °
Contrast ratio (dynamic)	4000000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Placement supported	Horizontal
Product color	Black
Panel mounting interface	- mm
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDCP	-
HDMI version	1.4
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Component video (YPbPr/YCbCr) in	1
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	150 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	333 mm
Height (with stand)	771 mm
Weight (with stand)	25500 g
Depth (without stand)	72 mm
Width (without stand)	1208 mm
Height (without stand)	739 mm
Weight (without stand)	22500 g
