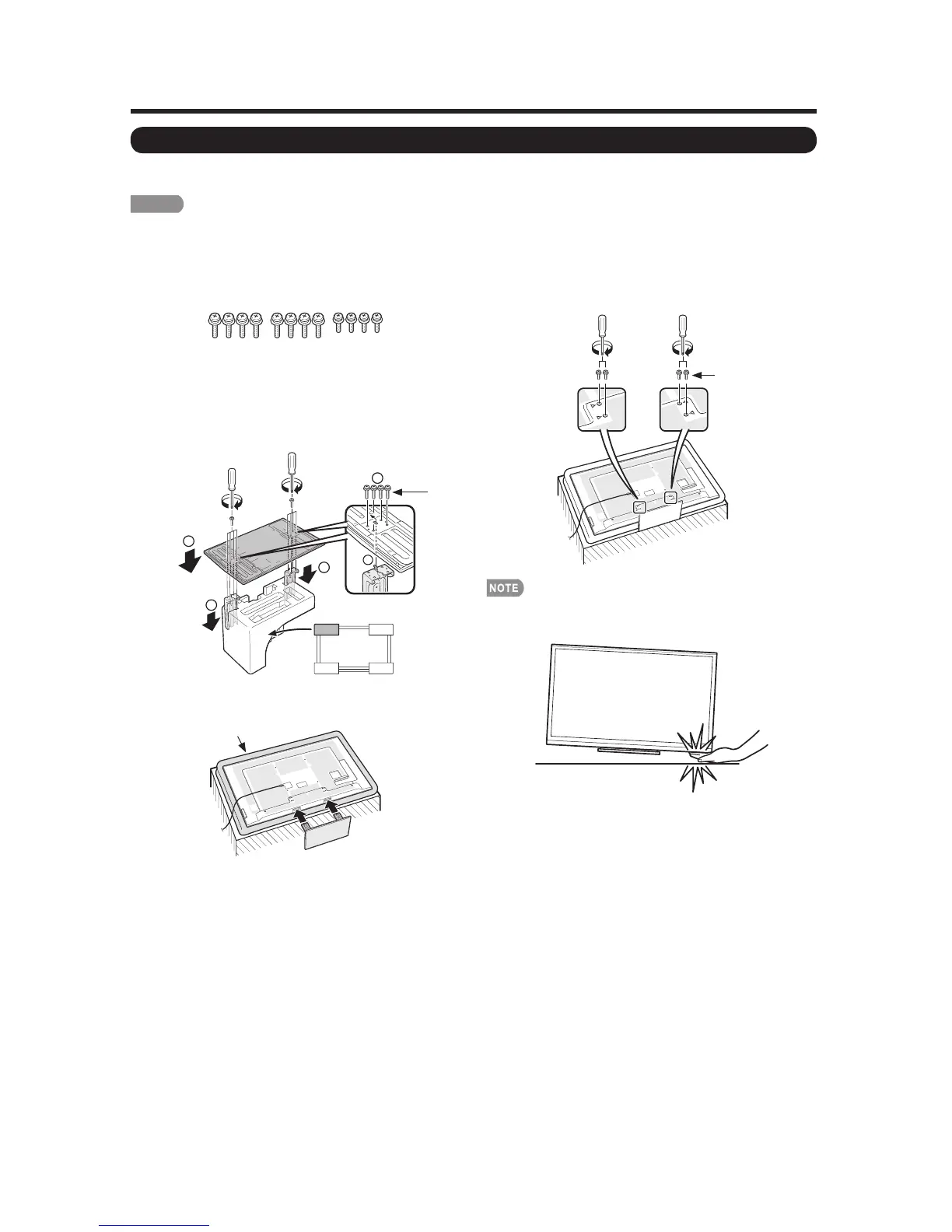

LC-52/60/70LE640U,C6400U (1st Edition)
2 – 3
1
Confirm that there are 12 screws (8 long screws
and 4 short screws) supplied with the stand unit.
2
Ԙ
Set the post for the stand unit onto the
polystyrene foam.
ԙ
Attachthebasetothepost.
Ԛ
Insert and tighten the 8 screws into the 8 holes
on the bottom of the base.
• Hold the stand unit securely with one hand, and then
tighten the screws.
FRONT
2
2
1
1
1
Long
screws
3
Insert the stand into the openings on the bottom of the TV.
• Make sure that the stand is firmly inserted into the TV.
Improper installation may result in tilting of the TV set.
Soft cushion
4
Insert and tighten the 4 screws into the 4 holes on
the rear of the TV.
Short screws
• To detach the stand, perform the steps in reverse order.
• In the installation procedure, be careful not to catch your
fingers between the TV set and the floor.
QUICK REFERENCE
Attaching the Stand
• Before attaching (or detaching) the stand, unplug the AC cord.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
CAUTION
• Attach the stand in the correct direction.
• Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
• After attaching the stand to the TV, do not hold the stand when you put up, set up, move or lay down the TV.
To Next Page
