Sharp LC-52LE640U User Manual

LC-52/60/70LE640U,C6400U (1st Edition)
5 – 10
6. Special features
* STANDBY CAUSE (Page 1/28)
Display of a cause (code) of the last standby
The cause of the last standby is recorded in EEPROM whenever possible.
Checking this code will be useful in finding a problem when you repair the troubled set.
* EEP SAVE (Page 28/28)
Storage of EEP adjustment value
* EEP RECOVER (Page 28/28)
Retrieval of EEP adjustment value from storage area
7. Writing the microprocessor software
7.1. Writing the main microprocessor software and monitor microprocessor software
(Main PWB: QPWBXF733WJN2)

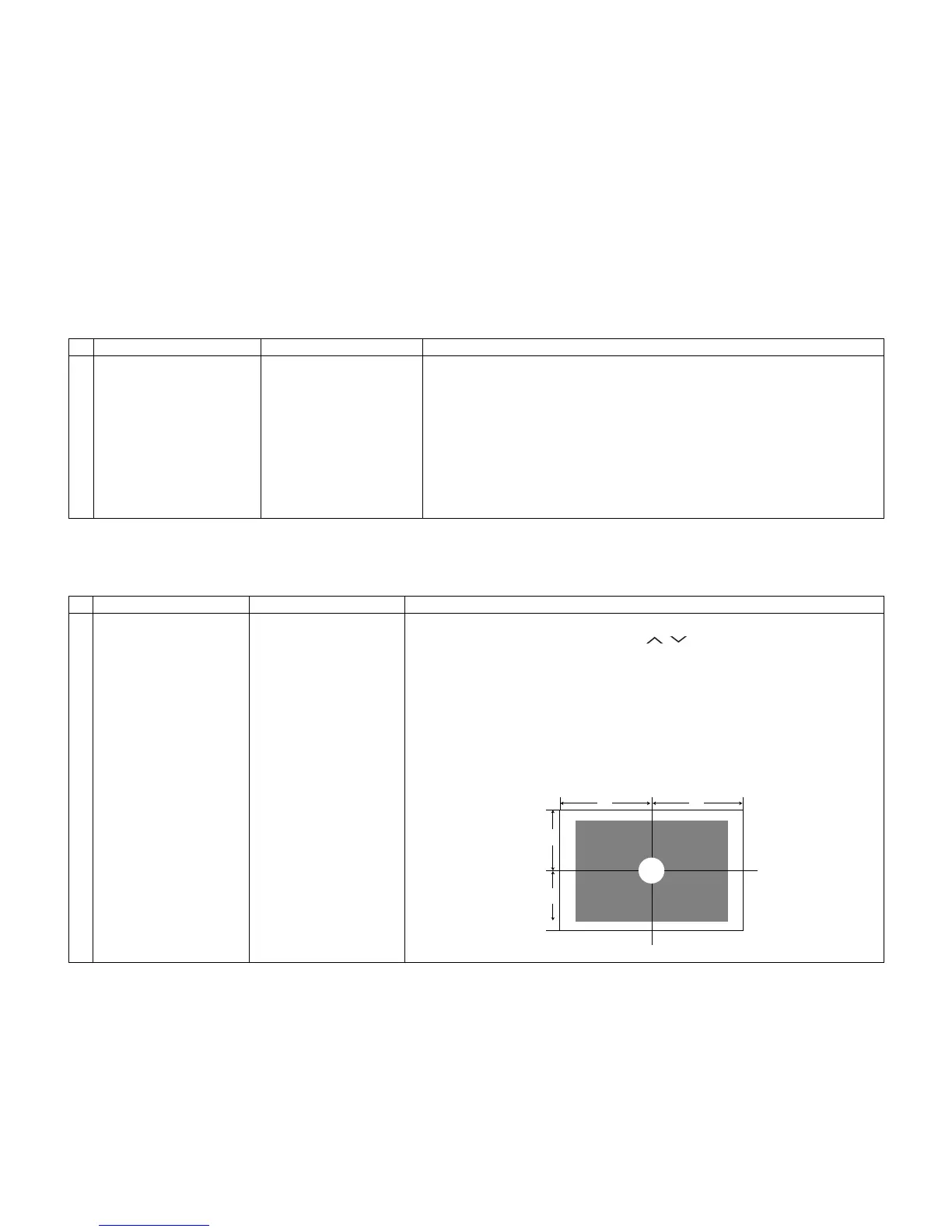

8. Signal adjustment
8.1. LCD section adjustment [LCD module adjustment]
Adjustment item Adjustment conditions Adjustment procedure
1 Writing the main micropro-
cessor software and moni-
tor microprocessor software
<Main PWB>
Checker process
Checking the file version
Checking the USB memory
1) Using the checker, connect the specified writing tool to the SC8452 (TL8461 -
TL8475).
2) Using the checker, connect the USB memory to the J9502 (TL9503, TL9506 -
9508).
3) Apply the specified voltage to the PWB and boot it up with the tool connected.
4) Send the software writing start command via RS232C.
5) Send the writing status check command and confirm the response of OK. Then
turn off the power.
CAUTION: When the USB memory is not inserted or reading error occurs, nothing
is written.
Adjustment item Adjustment conditions Adjustment procedure
1 Opposite bias adjustment
(LCD module adjustment
item)
Adjustment in the center
position of the panel
1) Enter the process mode using the process adjustment remote control.
2) Select [VCOM ADJ] using the Channel / keys on the remote control.
3) Press the Enter key to check that the pattern for adjustment is displayed.
4) Make adjustment so that the flicker located in the center of the screen is mini-
mized using the Volume +/- keys on the remote control.
5) If the optimum condition is obtained in step 4, press the Enter key to turn off the
pattern.
CAUTION: * Make adjustment with no ANT signal (since the brightness is changed
by the active backlight).
[Adjustment position]
1/2 1/2
1/2
1/2

Sharp LC-52LE640U Specifications

General

Display diagonal	52 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	120 Hz
Supported video modes	1080p
Viewing angle, vertical	176 °
Contrast ratio (dynamic)	4000000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Placement supported	Horizontal
Product color	Black
Panel mounting interface	- mm
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDCP	-
HDMI version	1.4
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Component video (YPbPr/YCbCr) in	1
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	150 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	333 mm
Height (with stand)	771 mm
Weight (with stand)	25500 g
Depth (without stand)	72 mm
Width (without stand)	1208 mm
Height (without stand)	739 mm
Weight (without stand)	22500 g
