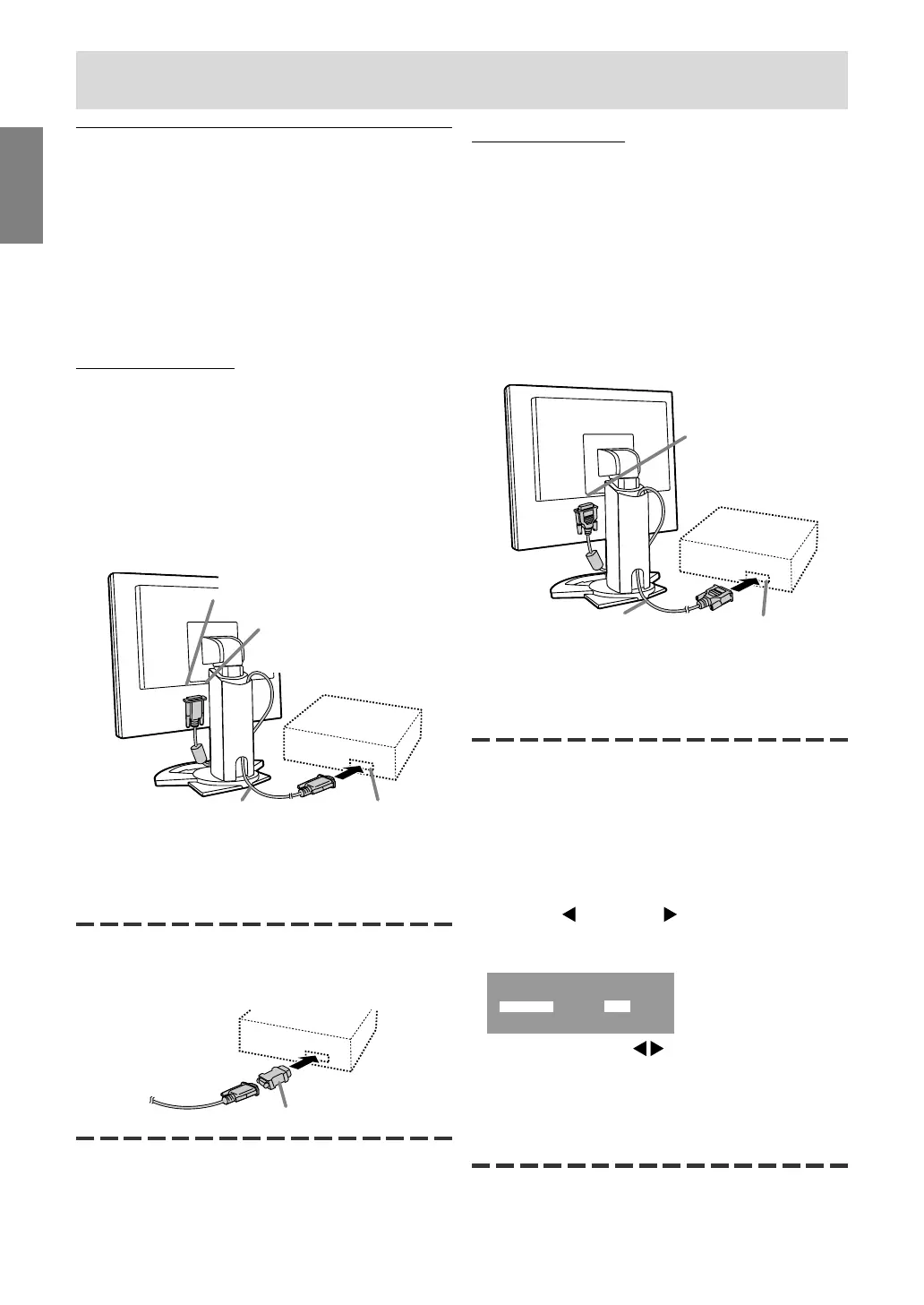

Connecting the monitor and turning the monitor on and off
Digital connection
Connect the accessory digital signal cable to the
digital RGB output terminal of the computer.
- The monitor has an input for connecting to a
computer with a DVI-compatible output
connector (DVI-D24 pin or DVI-I29 pin) and
UXGA output capability. (Depending on the type
of computer to be connected, the display may
not work correctly.)
- Use the accessory digital signal cable.
If using other commercially available digital
signal cables, correct display may not be
achieved.
- Paying attention to connector direction, firmly
insert the signal cable to terminal, and then
tighten the screws at both sides.
Set the monitor as follows when establishing a
digital connection with a Power Mac using an ADC-
DVI adapter made by Belkin. (Operation has been
checked with the Power Mac G4 M7627J/A.)
- Perform settings with the Power Mac power
supply off.
1.After connecting the power cord, turn on the
monitor's main power.
2.Press the button and button simultaneously,
and while doing this press the power button (i.e.
turn the power on).
MAC DIGITAL
INPUT-2 OFF ON
3.Set to [ON] with the buttons.
- Do not set to [ON] if you are not using a Belkin
ADC-DVI adapter, as this may result in
incorrect display.
4.Press the MENU button.
This completes setting.
Digital signal cable
Digital RGB output
terminal
DVI-I input terminal
(INPUT-2)
Connecting the monitor to a computer
The accessory signal cable enables connection of
two computers.
(One analog and one digital connection.)
- The separately sold 2-input cable enables connection of
two computers to the DVI-I input terminal.
- When using the 2-input cable, set the
connecting input terminal [INPUT-2] to [2LINES]
under the MODE SELECT-2 Menu. (p.24, 27)
Analog connection
Connect the accessory analog signal cable, or
separately-sold analog signal cable (model name:
NL-C02E) to the analog RGB output terminal of
the computer.
- Connect the accessory analog signal cable to
the analog RGB input terminal (INPUT-1).
- Connect the separately-sold analog signal cable
(model name: NL-C02E) to the DVI-I input
terminal (INPUT-2).
- Paying attention to connector direction, firmly
insert the signal cable to terminal, and then
tighten the screws at both sides.
If connecting to a D-sub15 pin 2 row Apple Power
Macintosh, attach a Macintosh conversion adapter
(commercially available) to the analog signal cable.
Note:
- If connecting to the Sun Ultra series, a
conversion adapter (commercially available)
may be required.
Analog signal cable
Analog RGB output
terminal
DVI-I input terminal
(INPUT-2)
Analog RGB
input terminal
(INPUT-1)
Macintosh conversion adapter
