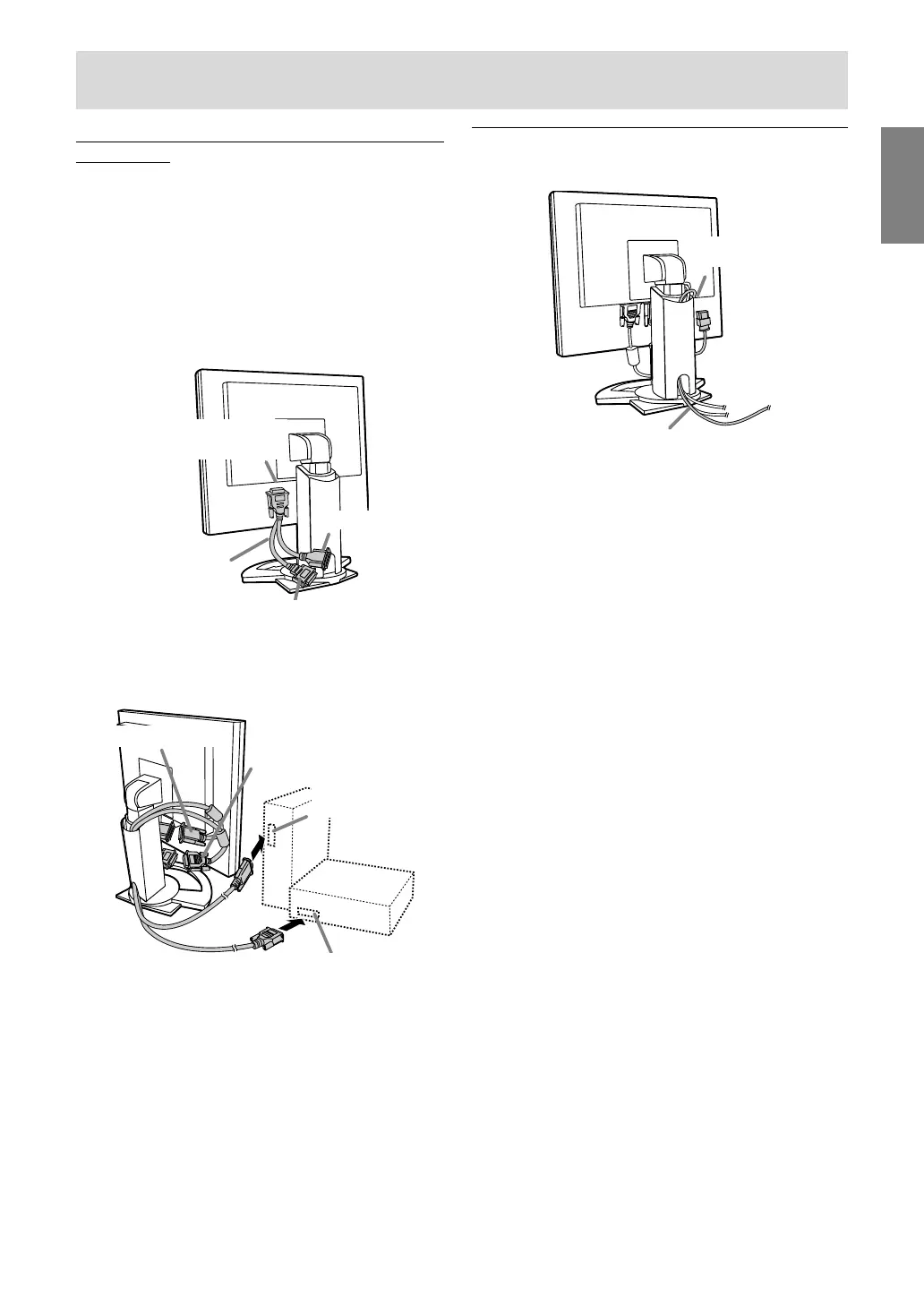

Connecting the monitor and turning the monitor on and off
Connecting the monitor to a power
source
When connecting using a separately sold 2-
input cable
The separately sold 2-input cable (model name:
NL-C03J) enables connection between the DVI-I
input terminal on the monitor and the two PCs.
(One analog and one digital connection.)
1.Connect the 2-input cable to the DVI-I input
terminal of the monitor.
2.Connect the accessory or commercially
available analog signal cable and the accessory
digital signal cable to the 2-input cable.
- When using commercially available analog
signal cable, both ends should be mini D-sub
15 pin.
3.Connect each signal cable to the computers.
- Paying attention to connector orientation,
firmly insert the signal cable into the PC, and
then tighten the screws at both sides.
Notes:
- When using the 2-input cable, set the
connecting input terminal [INPUT-2] to [2LINES]
under the MODE SELECT-2 Menu. (p.24, 27)
- The monitor connected to the 2-input cable by
analog connection may not be automatically
recognized and setup under Plug & Play.
Perform storage of setup information manually.
(p.33)
DVI-D24 pin
2-input cable
(purchased separately)
mini D-sub15 pin
DVI-I input terminal
(INPUT-2)
Digital RGB output terminal
Digital signal cable
Analog signal cable
Analog RGB
output terminal
Power terminal
Power cord
AC outlet
To Next Page
