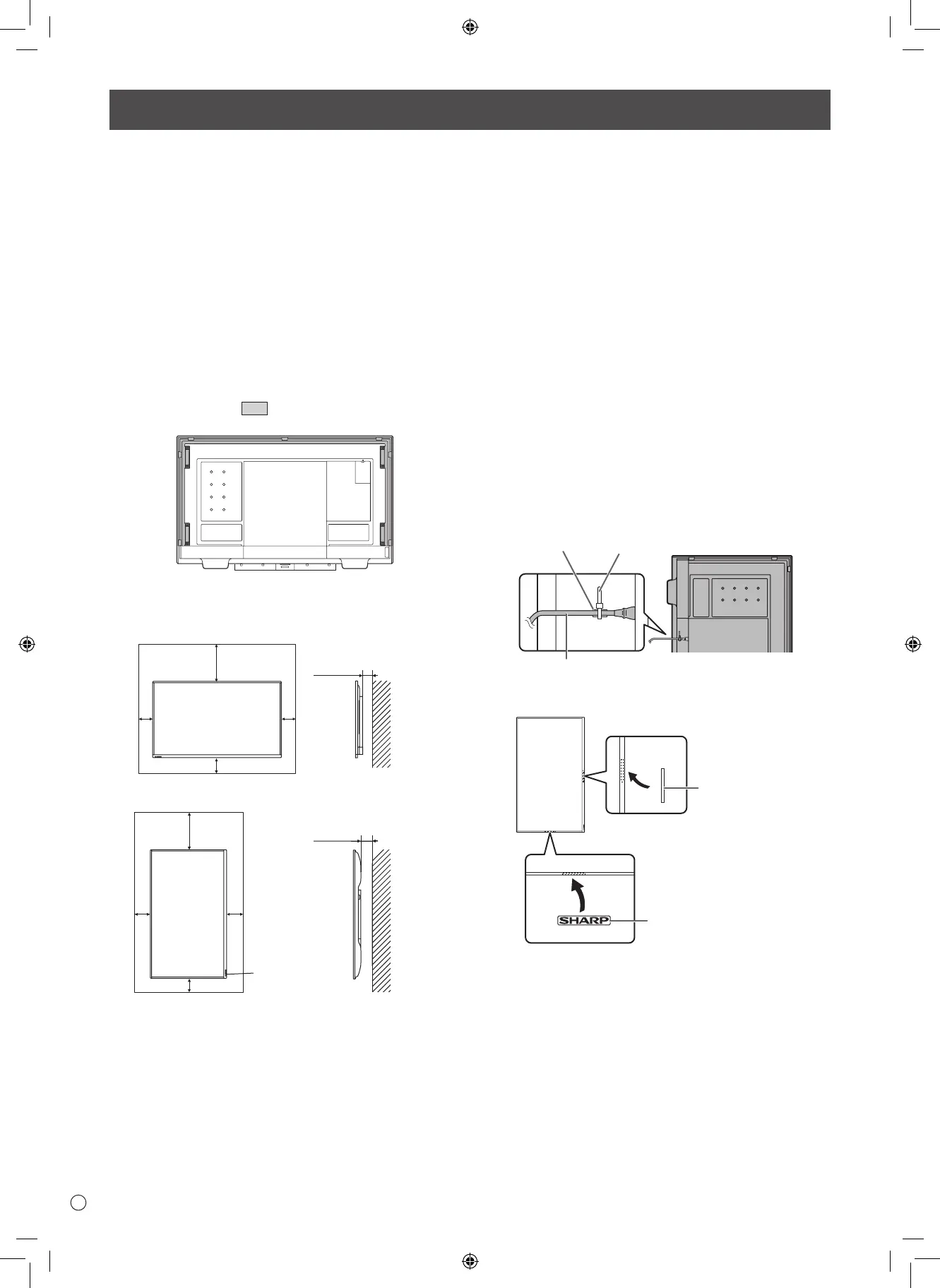

MOUNTING PRECAUTIONS
• Thisproductisforuseindoors.
• AmountingbracketcompliantwithVESAspecificationsis
required.
• Sincethemonitorisheavy,consultyourdealerbefore
installing, removing or moving the monitor.
•
Mounting the monitor on the wall requires special expertise
and the work must be performed by an authorized SHARP
dealer. You should never attempt to perform any of this work
yourself. Our company will bear no responsibility for accidents
or injuries caused by improper mounting or mishandling.
• Usethemonitorwiththesurfaceperpendiculartoalevel
surface. If necessary, the monitor may be tilted up to 20
degrees upward.
•
When using PN-L851H tilted upward from the perpendicular
in relation to a level surface, consult an authorized SHARP
dealer because there are some specific mounting conditions.
• Whenmovingthemonitor,besuretoholdthehandlesor
the parts marked by
below. Do not grasp the screen
or tray. This may cause product damage, failure, or injury.
• This monitor should be used at an ambient temperature
between 41°F (5°C) and 95°F (35°C). Provide enough space
around the monitor to prevent heat from accumulating inside.
For the monitor in landscape orientation
Unit: inch [mm]
Unit: inch [mm]
For the monitor in portrait orientation
7-7/8 [200]
2 [50]
2
[50]
2
[50]
1-7/16 [35]
1-7/16 [35]
2 [50]
7-7/8 [200]
2
[50]
2
[50]
Power LED
• Ifitisdifficulttoprovidesufficientspaceforanyreason
such as the installation of the monitor inside a housing or
of several units side-by-side, or if the ambient temperature
may be outside of the range of
41°F (5°C) to 95°F (35°C) ,
install a fan or take other measures to keep the ambient
temperature within the required range.
• Wheninstallingtwoormoremonitorunitsside-by-side,
provide space of at least 3/16 inch (5 mm) around them
to prevent stress on the adjacent unit or structure due to
thermal expansion.
• Temperatureconditionmaychangewhenusingthemonitor
together with the optional equipments recommended by
SHARP. In such cases, please check the temperature
condition specified by the optional equipments.
• Donotblockanyventilationopenings.Ifthetemperature
inside the monitor rises, this could lead to a malfunction.
• Donotplacethemonitoronadevicewhichgeneratesheat.
• Donotusetheproductinlocationswheretheunitis
exposed to direct sunlight or other strong light. Since this
product operates with infrared rays, such light may cause a
malfunction.
• Whenusingmultiplemonitorsclosely,besuretheinfrared
transmitter/receiver does not affect the other ones.
• Adheretothefollowingwheninstallingthemonitorinits
portrait orientation. Failing to adhere to the following may
cause malfunctions.
- Install the monitor such that the power LED is located on
the bottom side.
-
Set the PORTRAIT/LANDSCAPE INSTALL in the MONITOR
menu to PORTRAIT. (See OPERATION MANUAL.)
- Be sure to clamp the power cord (supplied) onto the cable
clamp attachment using the supplied cable clamp. When
clamping the power cord, take care not to stress the
terminal of the power cord. Do not bend the power cord
excessively.
Power cord (Supplied)
Cable clamp
Cable clamp
attachment
• Usethesuppliedverticalstickerwhenyouinstallthe
monitor in portrait orientation.
Cover SHARP
logo
Logo
