Sharp PN-L Series Setup Manual

ENGLISH
5
E

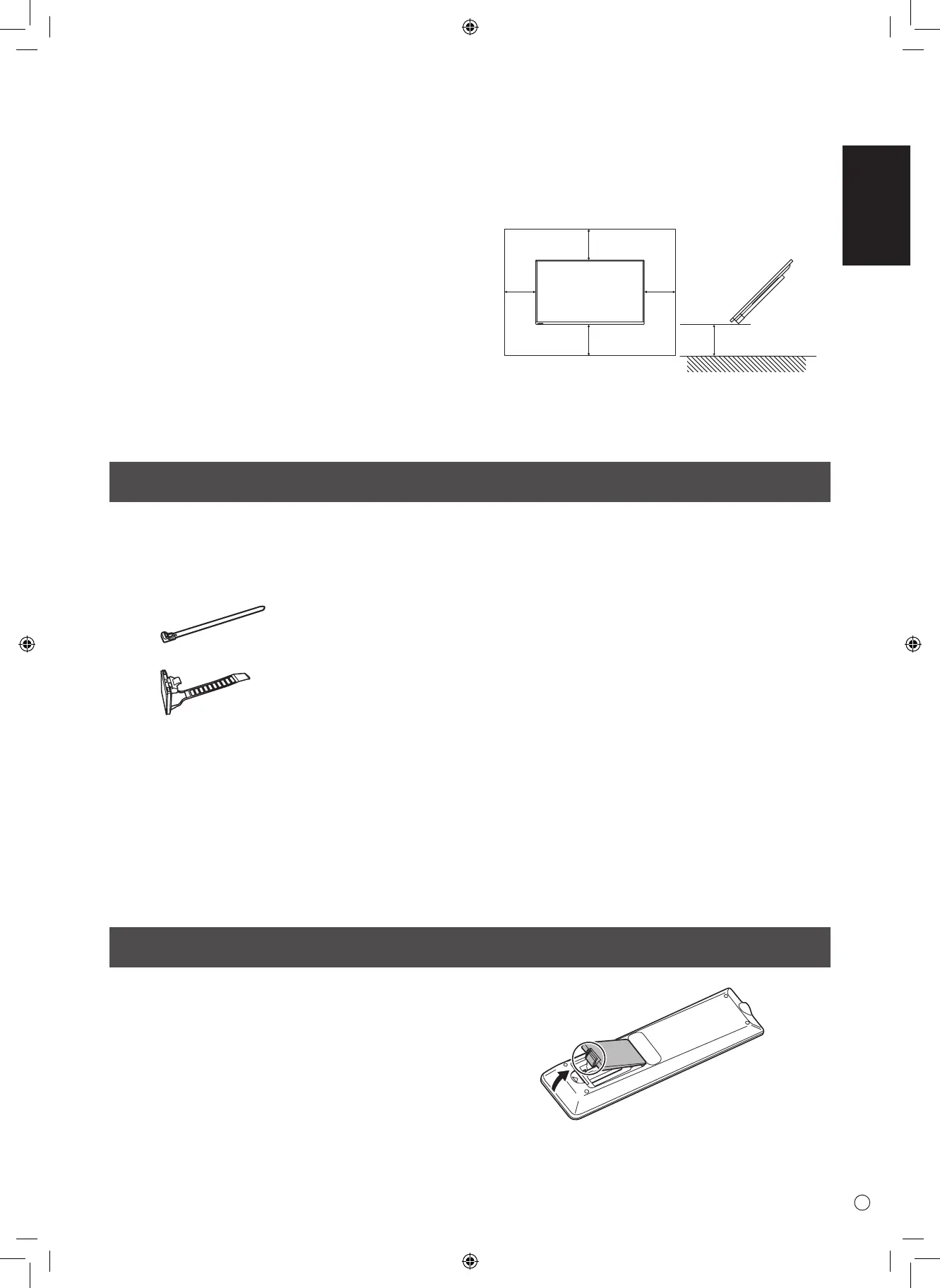

Supplied Components
Preparing the Remote Control Unit
1. Placeyourfingeronthepartmarkedwiththe▲,and
then pull the cover off.
2. See the instructions in the compartment and put in the
supplied batteries (R03 (“AAA” size) x 2) with their plus
(+) and minus (-) sides oriented correctly.
3. Close the cover.
If any component should be missing, please contact your dealer.

Liquid Crystal Display Monitor: 1

Remote control unit: 1

Cable clamp: 2

Cable clamp (affixing type): 3

Power cord: 1

R03 battery (“AAA” size): 2

CD-ROM (Utility Disk for Windows): 1

SHARP Display Connect License: 1

Setup Manual (this manual): 1

Specification sheet

Touch pen: 1 (PN-L851H: 2)

Eraser: 1

Tray: 1

USB flash drive / SD card cover: 1

Speaker cover: 2

Camera mount: 1

Tray mounting screws,
Speaker cover attachment screws (M3x10): 9

Camera mount screws (M3x5): 2

USB flash drive / SD card cover fixing screw (knurled screw): 1

Camera screw (inch thread): 1

Wireless LAN antenna: 2

USB cable: 1

Vertical sticker (Logo): 1

Cover SHARP logo: 1
Place this sticker onto the SHARP logo to cover the logo.
* SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
* For environmental protection!
Do not dispose of batteries in household waste. Follow the disposal instructions for your area.
Backward tilt installation
• Whenusingthismonitortiltedmorethan20degrees
upward from the perpendicular in relation to a level surface,
consult an authorized SHARP dealer because there are
some specific mounting conditions.
Adhere to the following. Failing to adhere to the following
may cause malfunctions.
- This monitor can be tilted up to 45 degrees upward.
- Set BACKWARD TILT INSTALLATION in the MONITOR
menu to ON. (See OPERATION MANUAL.)
- Use this monitor at the ambient temperature between
41°F (5°C) and 86°F (30°C). Provide 7-7/8 inch (200 mm)
or more space between the monitor and the floor or other
mounting surfaces and surrounding objects to prevent
heat from accumulating inside.
If it is difficult to provide sufficient space or if the ambient
temperature may be outside of the range of 41°F (5°C) to
86°F (30°C), install a fan or take other measures to keep
the ambient temperature within the required range.
Unit: inch [mm]
7-7/8 [200]
7-7/8 [200]
7-7/8 [200]
7-7/8
[200]
7-7/8
[200]
- Do not press hard on the screen or otherwise subject it to
impacts.
