Sharp R-15AT Service Manual

R-15AT
29
TEST DATA AT A GLANCE
PARTS SYMBOL VALUE / DATA
Fuse F1 F10A
Thermal cut-out TC1 125°C Off
Thermal cut-out TC2 145°C Off
Oven lamp OL 240 V 25W E14
High voltage capacitor C 1.07µF AC 2300V
Magnetron MG Filament < 1Ω / Filament – chassis ∞ ohm.
High voltage transformer T
Filament winding < 1Ω
Secondary winding Approx. 90 Ω / Primary winding Approx. 1.3 Ω
High voltage fuse F2 0.75A 5kV
WARNING: DISCONNECT THE PLUG WHEN MEASURING RESISTANCE.
MICROWAVE MEASUREMENT
After adjustment of door latch switches, monitor switch
and door are completed individually or collectively, the
following leakage test must be performed with a survey
instrument and it must be confirmed that the result meets
the requirements of the performance standard for micro-
wave oven.
REQUIREMENT
The safety switch must prevent microwave radiation emis-
sion in excess of 5mW/cm
2
at any point 5cm or more from
external surface of the oven.
PREPARATION FOR TESTING:
Before beginning the actual test for leakage, proceed as
follows;
1. Make sure that the test instrument is operating nor-
mally as specified in its instruction booklet.
Important:
Survey instruments that comply with the requirement
for instrumentations as prescribed by the performance
standard for microwave ovens must be used for test-
ing.
Recommended instruments are:
NARDA 8100
NARDA 8200
HOLADAY HI 1500
SIMPSON 380M
2. Place the oven tray into the oven cavity.
3. Place the load of 275 ± 15ml of water initially at 20
± 5˚C in the centre of the oven tray. The water
container should be a low form of 600 ml beaker with
inside diameter of approx. 8.5cm and made of an
electrically non-conductive material such as glass
or plastic.
The placing of this standard load in the oven is impor-
tant not only to protect the oven, but also to insure that
any leakage is measured accurately.
4. Close the door and turn the oven ON with the timer set
for several minutes. If the water begins to boil before
the survey is completed, replace it with 275ml of cool
water.
5. Move the probe slowly (not faster that 2.5cm/sec.)
along the gap.
6. The microwave radiation emission should be meas-
ured at any point of 5cm or more from the external
surface of the oven.
mW cm
2
mW cm
2

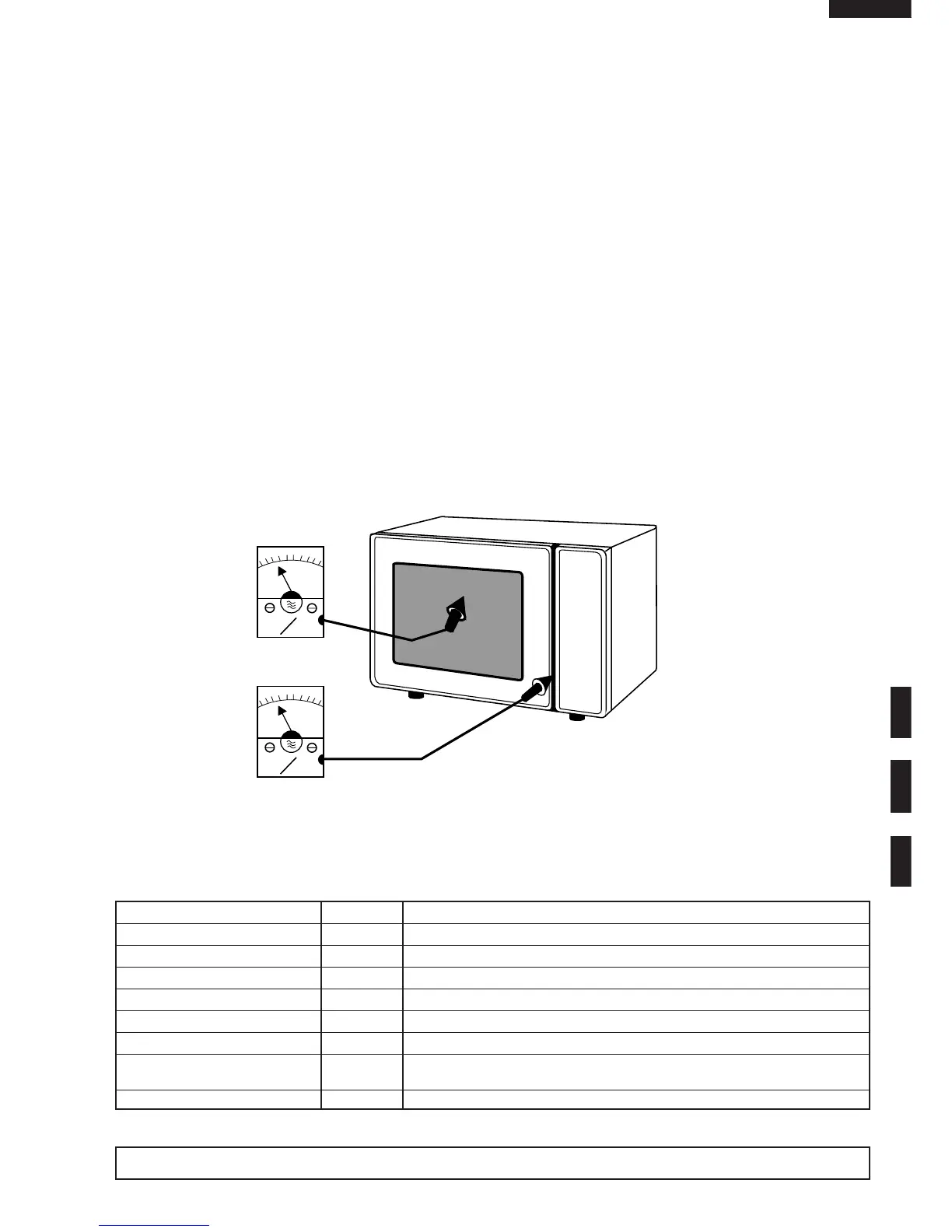

Microwave leakage measurement at 5 cm distance
SHARP

Sharp R-15AT Specifications

General

Grill	No
Rotisserie	-
Control type	Buttons
Display type	LCD
Product type	Solo microwave
Certification	CE
Product color	Stainless steel
Microwave power	1000 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	11
Current	16 A
Connected load	- W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	424 mm
Width	520 mm
Height	309 mm
Weight	18000 g
Interior dimensions (W x D x H)	351 x 372 x 211 mm
