Side-Power SP 75 T User Manual

33
SP 75 T / SP 95 T / SP 125 T 1.0 - 2002
Schaltplan
D

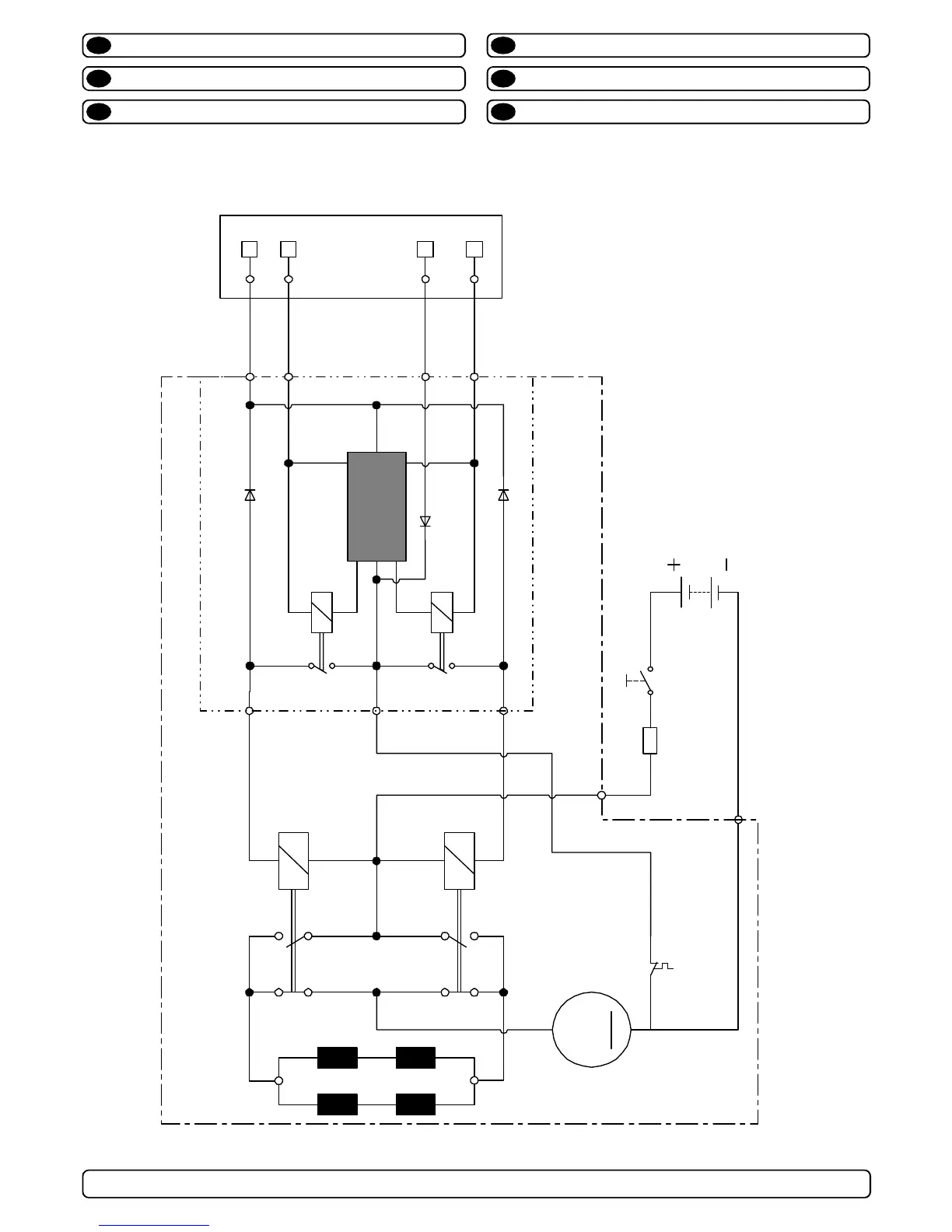

Technical wiring diagram
GB
Schema di connessione tecnico
I
Schéma technique de branchement
F
Tekninen kytkentäkaava
FI
Koblingsskjema
N
M
Thermal
switch
Electronic interface box
Electronic
logics
D2
D1
A2 A1
4 pin
AMP
connector
On Motor
4 2 1 3
Fuse
Battery
main
switch
2
5
4
1
6
8
3
red
grey blue
black
red
grey blue
black

Side-Power SP 75 T Specifications

General

Brand	Side-Power
Model	SP 75 T
Category	Outboard Motor
Language	English
