Siemens CPU 314 User Manual

Cycle and reaction times
5.3 Response time
CPU 31xC and CPU 31x, Technical Data
Manual, 01/2006 Edition, A5E00105475-06
5-15
5.3.2 Shortest response time
Conditions for the shortest response time

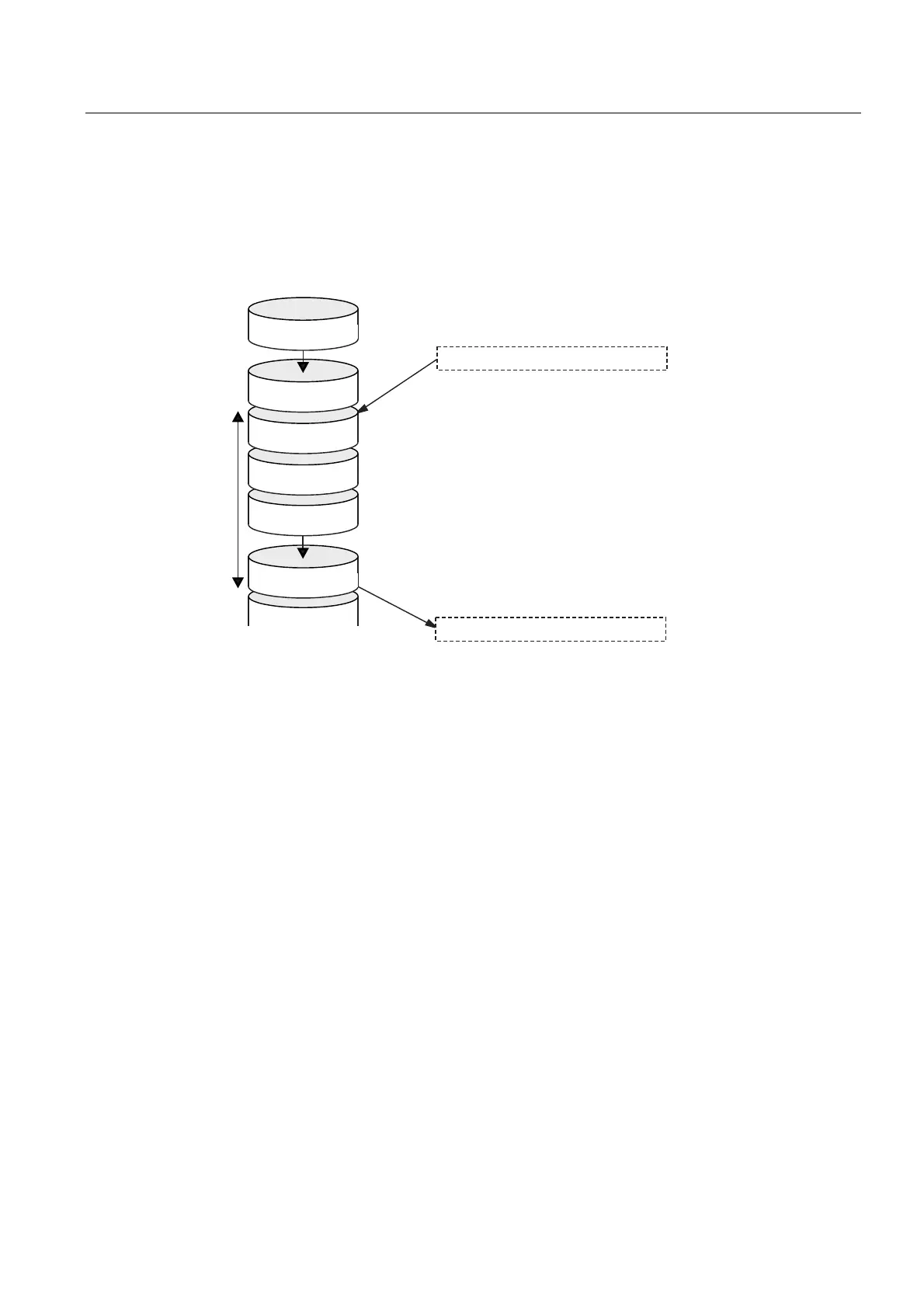

The figure below shows the conditions under which the shortest response time is reached.
'HOD\RILQSXWV
,PPHGLDWHO\EHIRUHUHDGLQJLQWKH3,,WKHVWDWXVRI
WKHPRQLWRUHGLQSXWFKDQJHV7KLVFKDQJHRIWKHLQSXW
VLJQDOLVVWLOOLQFOXGHGLQWKH3,,
7KHFKDQJHRIWKHLQSXWVLJQDOLVSURFHVVHGE\
WKHDSSOLFDWLRQSURJUDP
7KHUHVSRQVHRIWKHXVHUSURJUDPWRWKHFKDQJH
RIWKHLQSXWVLJQDOLVLVVXHGWRWKHRXWSXWV
'HOD\RIRXWSXWV
5HVSRQVHWLPH
&&326
3,2
3,,
8VHUSURJUDP
&&326
3,2
Calculation
The (shortest) response time is the sum of:
Table 5-10 Formula: Shortest response time
1 x process image transfer time for the inputs
+ 1 x process image transfer time for the outputs
+ 1 x program processing time
+ 1 × operating system processing time at the SCC
+ I/O delay
= Shortest response time
The result is equivalent to the sum of the cycle time plus the I/O delay times.
See also
Overview (Page 5-13)
