3.2 Communication services
CPU 31xC and CPU 31x, Technical Data
3-14 Manual, 01/2006 Edition, A5E00105475-06
Routing: Example of a TeleService application

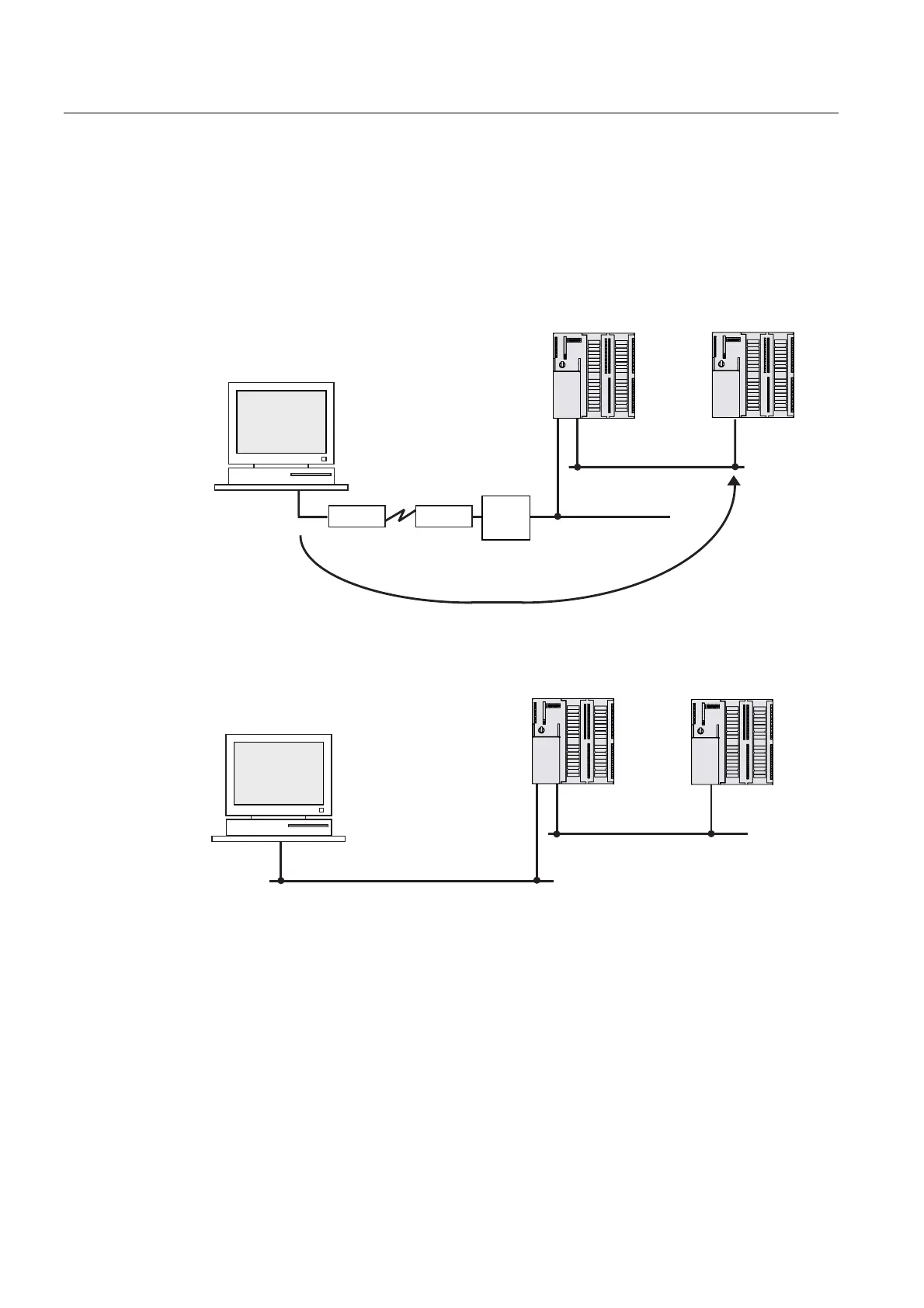

The figure below shows the example of an application for remote maintenance of an S7
station using a PG. The connection to other subnets is here established via modem
connection.
The lower section of the figure shows how to configure this in STEP 7.
3*
3*
'3PDVWHU
6XEQHW
HJ03,
6XEQHW
HJ352),%86'3
0RGHP
6XEQHW
HJ03,
6XEQHW
HJ352),%86'3
'3VODYH
7HOH6HUYLFH
DGDSWHU
HJ[&'3
HJ[&'3
0RGHP
5HDOLQVWDOODWLRQ
&RQILJXUDWLRQLQ67(3
'3PDVWHU
'3VODYH
HJ&38[&'3
HJ&38[&'3
