24
en
Electrical connection
Electrical data:
Are to be found on the name plate inside the appli-
ance after removal of the lterframe.
Before undertaking any repairs, always
disconnect the extractor hood from the electricity
supply.
Length of the connecting cable: 1.30 m.
This extractor hood corresponds to EC regulations
concerning RF interference suppression.
Risk of electric shock!
The appliance features an EU safety plug. To ensure
protective earthing in a Danish socket, the appliance
must be connected to a suitable plug adapter. This
adapter (permitted up to max. 13 amps) is available
from customer service (spare part no. 616581).

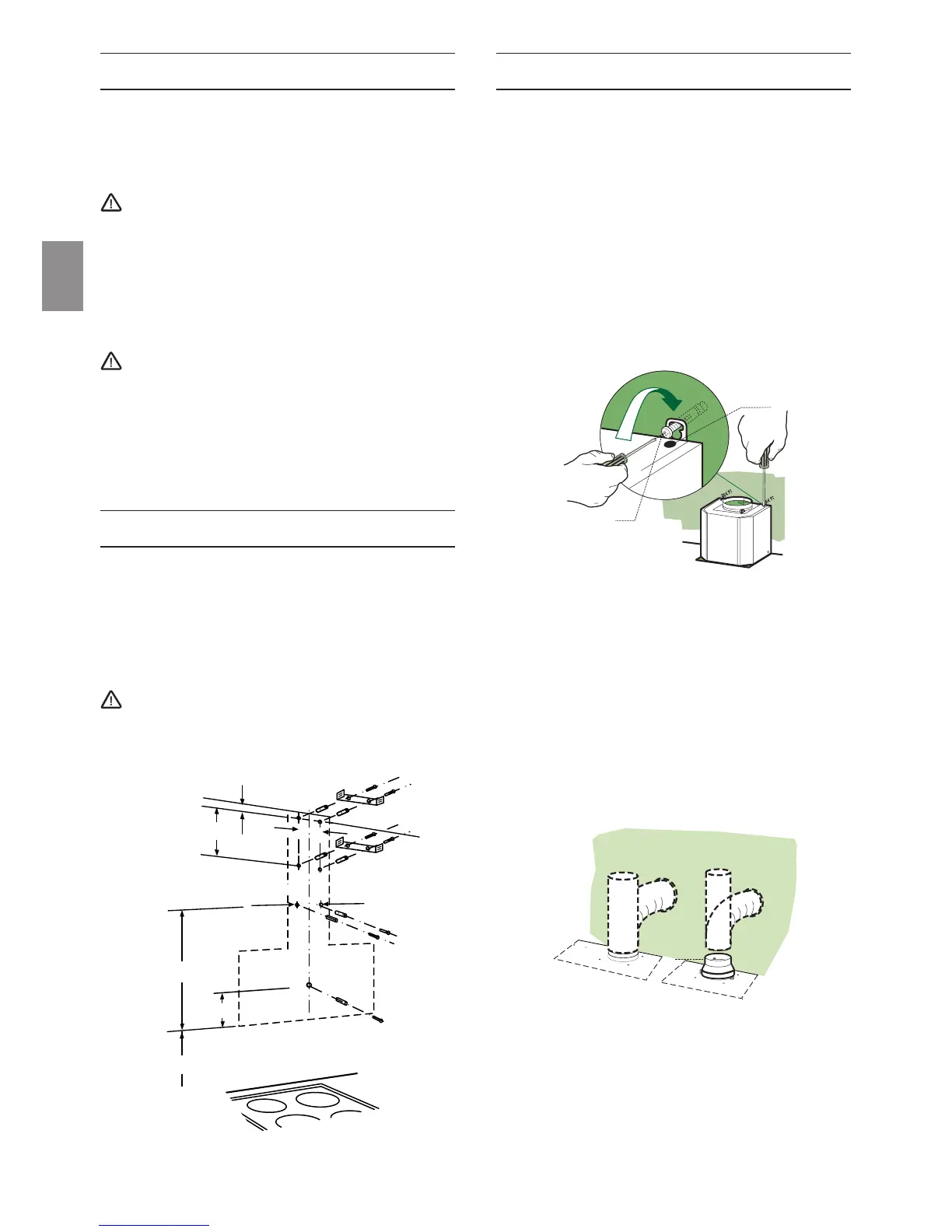

Installation
1. Draw a line on the wall from the ceiling to the
lower edge of the hood at the centre of the lo-
cation where the hood is going to be mounted.
2. Use the template or following the picture to
mark the points (A-B-C) on the wall where the
screws will be mounted.
Ensure that the minimum distance between the
hob and the extractor hood is maintained 460 mm
for the gas hob and electric hod
Installation
Note: Take into account any special accessories
that are going to be tted.
qTo install a ø 120 mm air exhaust connection,
insert the reducer ange 9 on the hood body
outlet.
qFix the pipe in position using sufcient pipe
clamps (not supplied).
qRemove charcoal lters, if present.
8. Hook the hood body onto the screws 12a into
the holes A.
9. Fully tighten support screws 12a.
10. Adjust screws Vr to level the hood body.
11. Tighten the safety screw 11 in holes B.
Connection in Ducting Version
When installing the ducting version, connect the
hood to the chimney using either a exible or rigid
pipe ø 150 or 120 mm, the choice of which is left to
the installer.
3. Drill ø 8 mm holes A and B for the extractor
hood. Drill ø 8 mm holes C for the chimney
brackets.
4. Insert plugs 11 into the holes A,B and C so that
they are ush with the wall.
5. Fix the brackets 7.2.1 using the screws sup-
plied.
6. Insert not totally the screw into the holes A.
Mounting the hood body
7. Before attaching the hood body, tighten the two
screws Vr located on the hood body mounting
points.
