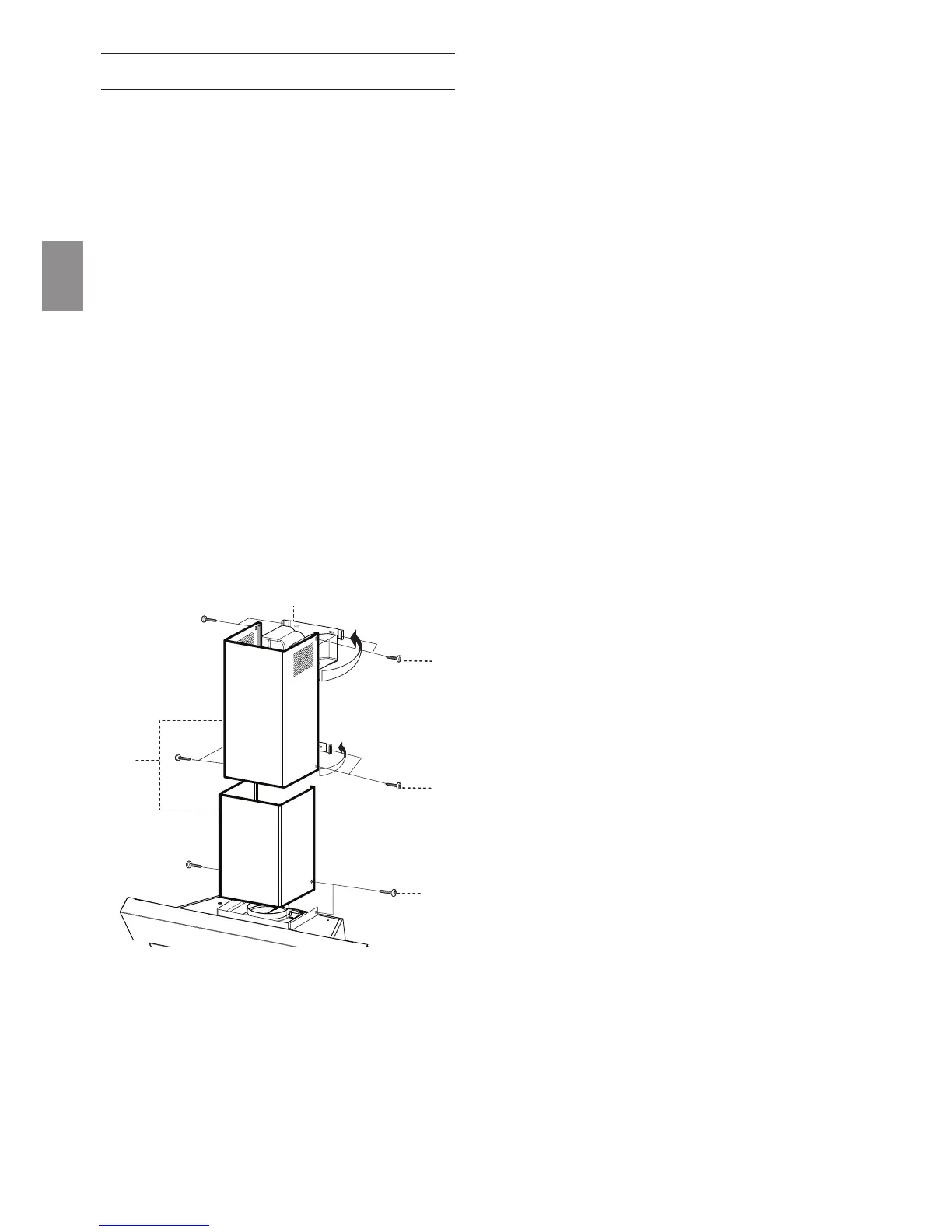

Chimney assembly
Upper Chimney
qSlightly widen the two sides of the upper Chim-
ney and hook them behind the brackets 7.2.1,
making sure that they are well seated.
qSecure the sides to the brackets using the 4
screws 12c supplied.
qMake sure that the outlet of the extensions
pieces is aligned with the chimney outlets.
Lower Chimney
qSlightly widen the two sides of the Chimney
and hook them between the upper Chimney
and the wall, making sure that they are well
seated.
qFix the lower part laterally to the hood body us-
ing the 2 screws 12c supplied.
