Siemens
4 Mounting and connecting
4.1 Preparations
Check the package content for visible signs of transport damage and for
completeness.
Do not install parts damaged during shipment. Contact your Siemens
representative in the event of damaged parts.
Note the information in the following sections of these operating instructions before
installing the Climatix touch panel:
● Climatic ambient conditions
● Protection classes

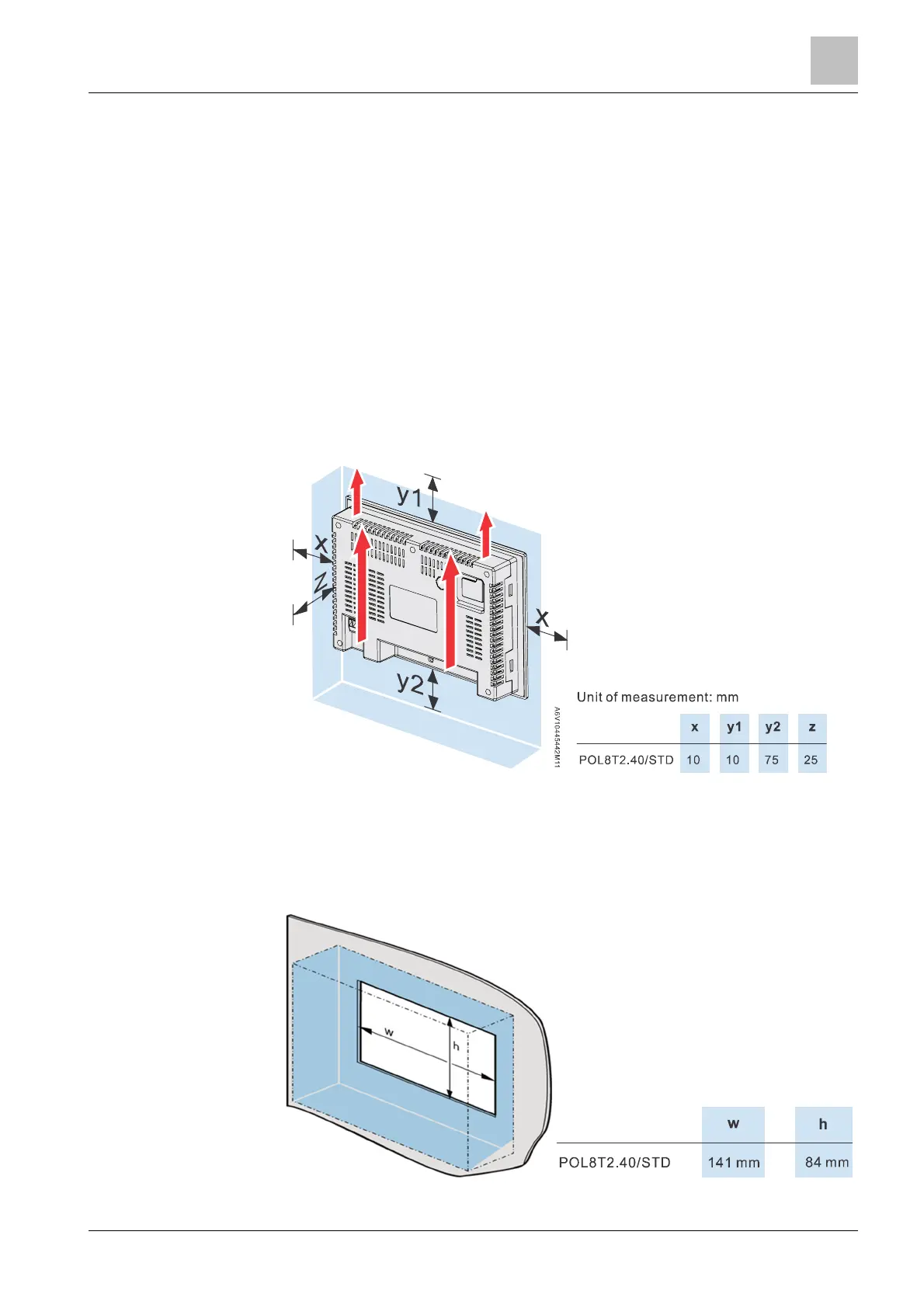

The following clearances are required around the Climatix touch panel to ensure
sufficient self-ventilation:
Avoid mounting the Climatix touch panel near other devices’ AC power cable,
controller output module, relay, or other electrical equipments.
Keep the Climatix touch panel away from equipments such as frequency
converters and power supply units, and shields all input or output cables to the
equipment. The shielding must be properly earth grounded.
Dimensions of the mounting cutout for the Climatix touch panel:
Check package contents
Note:
Check operating
conditions
Check clearances
Note:
Make the mounting cutout
