Siemens POL8T2.40/STD User Manual

Technical specifications
Interface description
8
27 |
30
Siemens
A6V11348824_en
--
_a
Smart Infrastructure
2018
-
04
-
10

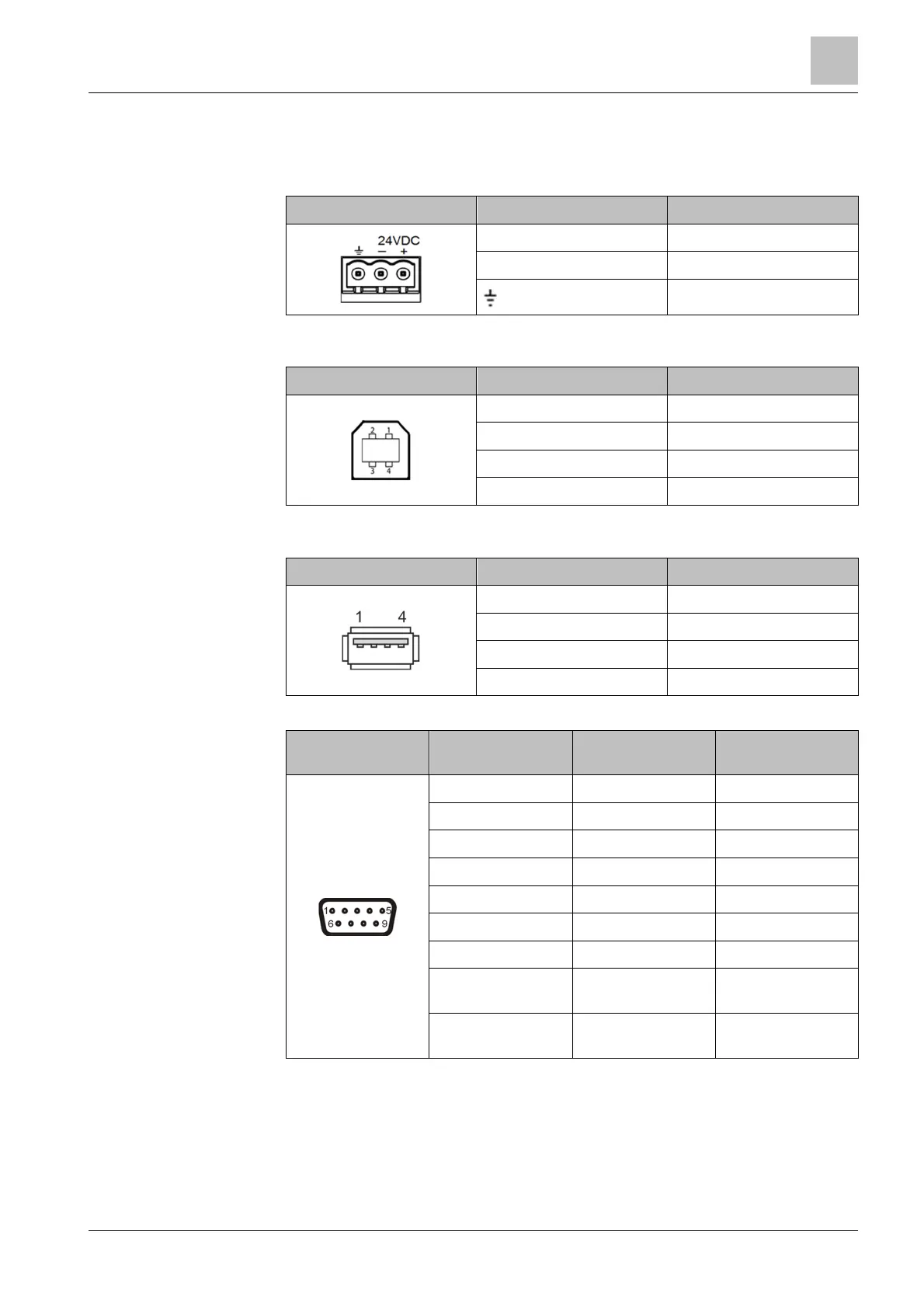

8.2 Interface description
Figure Pin Description
+ DC 24 V
- 0 V
Ground
A standard USB interface. Used for connecting to a configuration PC.
Figure Pin Description
1 DC 5 V out
2 Data -
3 Data +
4 Ground
A standard USB interface. Used for exporting data to a USB stick.
Figure Pin Description
1 DC 5 V out, max. 500 mA
2 Data -
3 Data +
4 Ground
Figure Pin RS485
Connect to
controller port
1
2
3
4
5 REF REF (for RS485)
6
7
8 Data -
RS485 B- (for
RS485 connection)
9 Data +
RS485 A+ (for
RS485 connection)
Power interface
USB-A
USB-B
Serial port interface
