Technical features

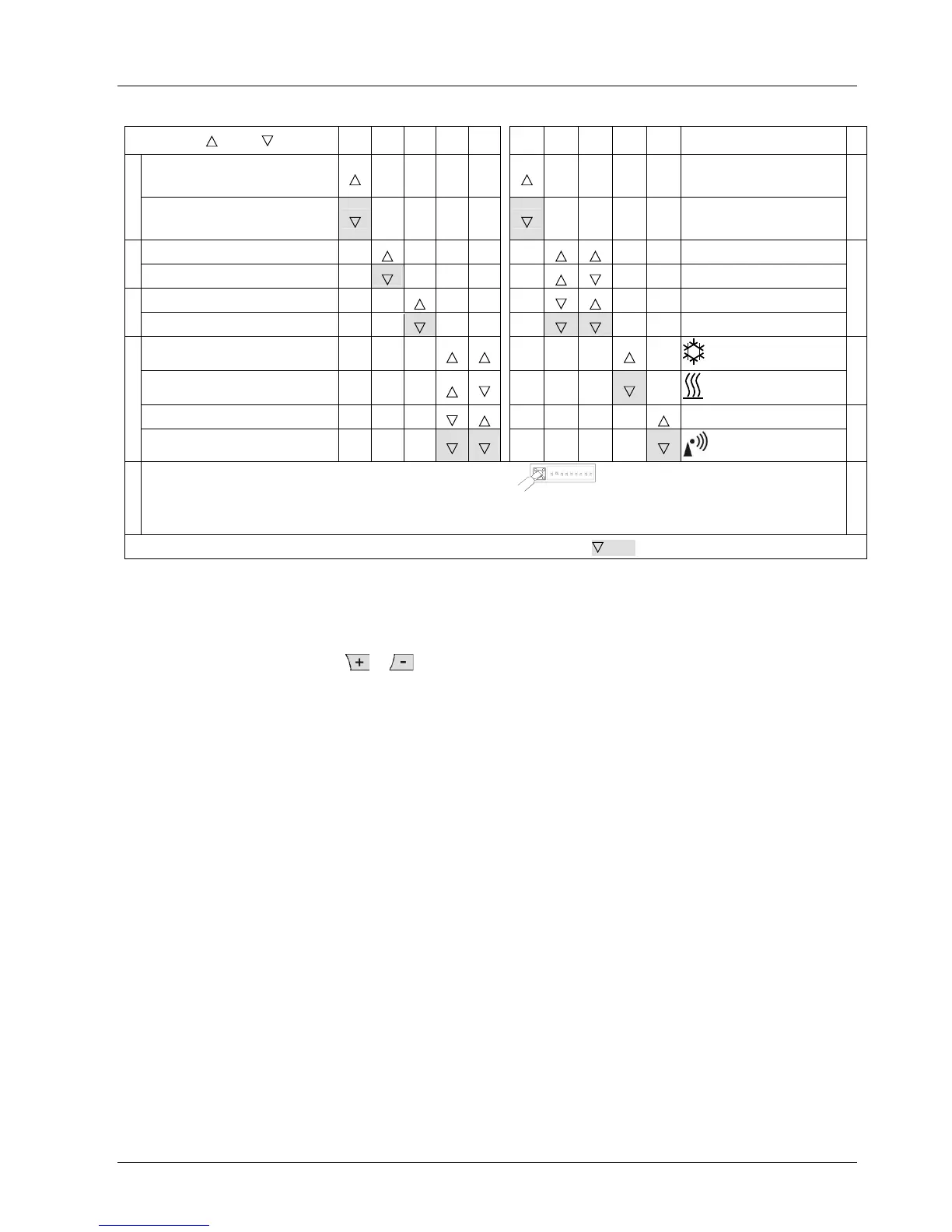

DIP switches
DIP switch
ON / OFF
1 2 3 4 5 6 7 8 9 10
Sensor calibration On
Periodic pump run and
anti-lime function On
A
Sensor calibration Off
Periodic pump run and
anti-lime function Off
E
Setpoint limitation 16…35 °C
Start optimization: 1 h/°C
B
Setpoint limitation 3…35 °C
Start optimization: ¼ h/°C
Temperature display °F
Start optimization: ½ h/°C
C
Temperature display °C
Start optimization: Off
F
PID self-learning
(Op. mode: Cooling)
PID 6
(Op. mode: Heating)
G
PID12
Quartz
D
2-point
Radio clock
H
J
DIP switch reset
ON
1 342
2211Z32
567 89
After you change one or several DIP switch positions, you must press the DIP switch reset button to reset the DIP
switch. Otherwise, the previous setting remains active!
J
Factory setting: All DIP switches to OFF
If the displayed room temperature does not match the measured room temperature, the
temperature sensor can be recalibrated.
Set DIP switch to ON and press the DIP switch reset button:
CAL symbol is displayed. The currently measured temperature flashes.
Press
or to recalibrate by max. ± 5 °C.
Set DIP switch to OFF and press the DIP switch reset button to save the settings.
The minimum setpoint limitation of 16 °C prevents undesired heat transfer to neighboring
spaces in buildings featuring several heating zones.
DIP switch ON: Setpoint limitation 16…35 °C.
DIP switch OFF: Setpoint limitation 3…35 °C (factory setting).
Press the DIP switch reset button to save the settings.
DIP switch ON: Temperature display in °F.
DIP switch OFF: Temperature display in °C (factory setting).
Press the DIP switch reset button to save the settings.
The REV24… is a two-position controller with PID control. The room temperature is
controlled through cyclic switching of an actuating unit.
DIP switches 4 ON and 5 ON: PID self-learning
Adaptive control for all applications.
DIP switches 4 ON and 5 OFF: PID 6
Fast controlled system for applications in locations with
large temperature deviations.
DIP switches 4 OFF and 5 ON: PID 12
Normal controlled system for applications in locations with
normal temperature deviations.
DIP switches 4 OFF and 5 OFF: 2-point
A Sensor calibration:
DIP switch 1
B Setpoint limitation:
DIP switch 2
C Temperature display in
°C or °F:
DIP switch 3
D Control behavior:
DIP switches 4 and 5
