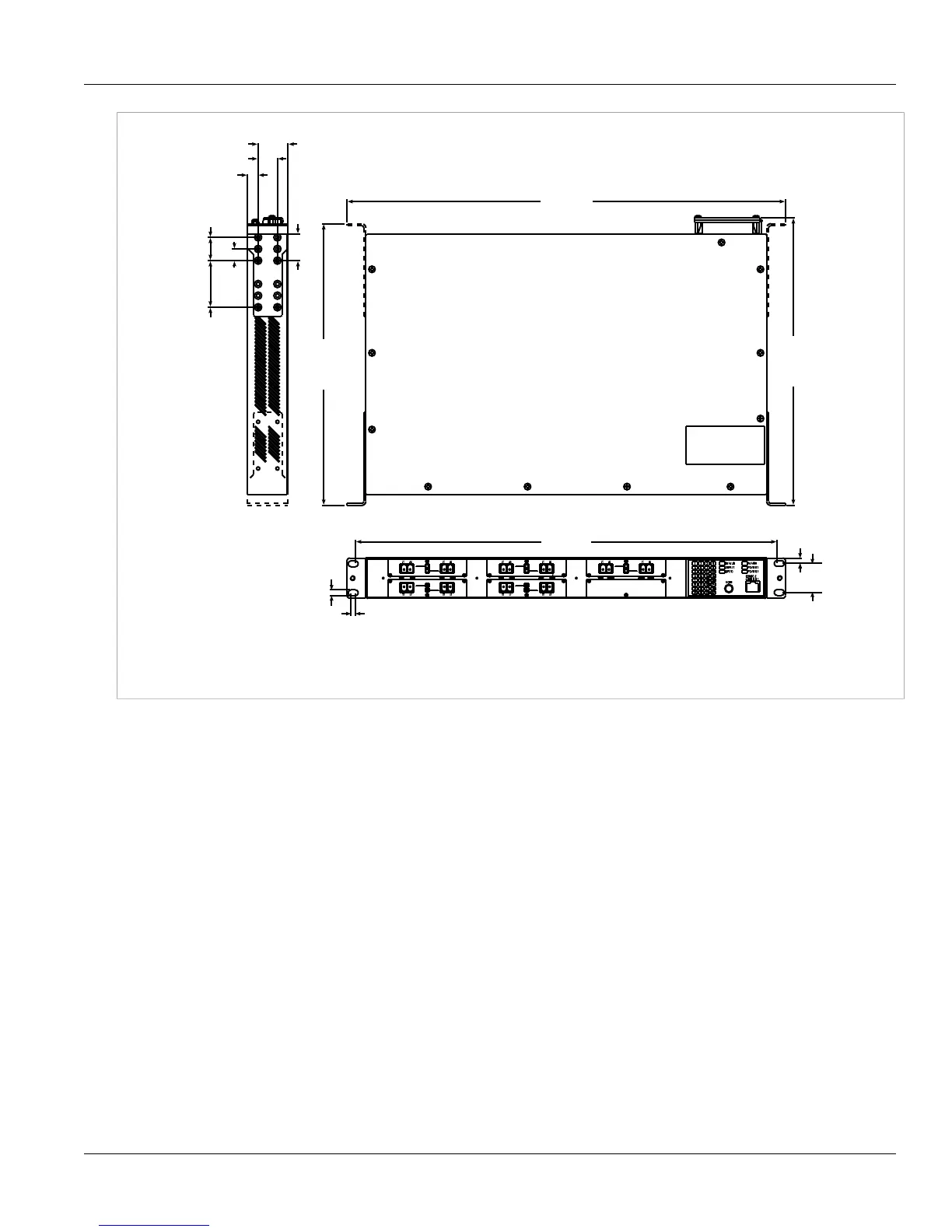

Technical Specifications
5
This section details the specifications and operating conditions of the device.
5.1 Power Supply Specifications
The RUGGEDCOM RSG2100 can be equipped with the following power supplies:
CAUTION
Electrical hazard – risk of power supply failure or damage to the device
Make sure power input to the device is within the specified input range. If power in-
put is too high, damage to the power supply may occur. If power input is too low,
damage to the device may occur.
Hazardous Environments
Input RangePower Sup-
ply Type
Minimum Maximum
Internal Fuse
Rating
a b
Maximum Power
Consumption
c
24 VDC 24 VDC 24 VDC 2.0 A(F)
48 VDC 48 VDC 48 VDC 1.0 A(T)
HI (125/250 VDC)
d
125 VDC 250 VDC 600 mA(T)
HI (100/240 VAC)
d
100 VAC 240 VAC 600 mA(T)
28 W
a
(F) denotes fast-acting fuse
b
(T) denotes time-delay fuse.
c
Power consumption varies based on configuration. 10/100Base-TX ports consume roughly 1 W less than
fiber optic ports.
d
The HI power supply is the same power supply for both AC and DC.
Non-Hazardous Environments
Input RangePower Sup-
ply Type
Minimum Maximum
Internal Fuse
Rating
a b
Maximum Power
Consumption
c
24 VDC 10 VDC 36 VDC 6.3 A(F)
48 VDC 36 VDC 72 VDC 3.15 A(T)
HI (125/250 VDC)
d
88 VDC 300 VDC 2 A(T)
HI (110/230 VAC)
d
85 VAC 264 VAC 2 A(T)
28 W
a
(F) denotes fast-acting fuse
b
(T) denotes time-delay fuse.
c
Power consumption varies based on configuration. 10/100Base-TX ports consume roughly 1 W less than
fiber optic ports.
RUGGEDCOM RSG2100
Installation Manual, 03/2020, C79000-G8976-1040-17
