18/126
Siemens Building Technologies SED2 variable speed drives CM1U5192en
HVAC Products Mechanical installation 01.2002
3.3.4 Mounting SED2 drives with IP54 / NEMA 12 rating
Hole spacing Clearance (mm)
Frame size
H (mm) W(mm) Top Botto
m
Side
Mounting materials
Tightening
torque
B 342.8 230 150 150 100
4xM6 bolts
4xM6 washers
4xM6 spring lock washers
5Nm
C 564 312.7 150 150 100
4xM6 bolts
4xM6 washers
4xM6 spring lock washers
5Nm
D 647 310 200 200 150
4xM8 bolts
4xM8 washers
4xM8 spring lock washers
13 Nm
E 847 310 200 200 150
4xM8 bolts
4xM8 washers
4xM8 spring lock washers
13 Nm
F 1112 400 300 250 150
4xM8 bolts
4xM8 washers
4xM8 spring lock washers
20 Nm

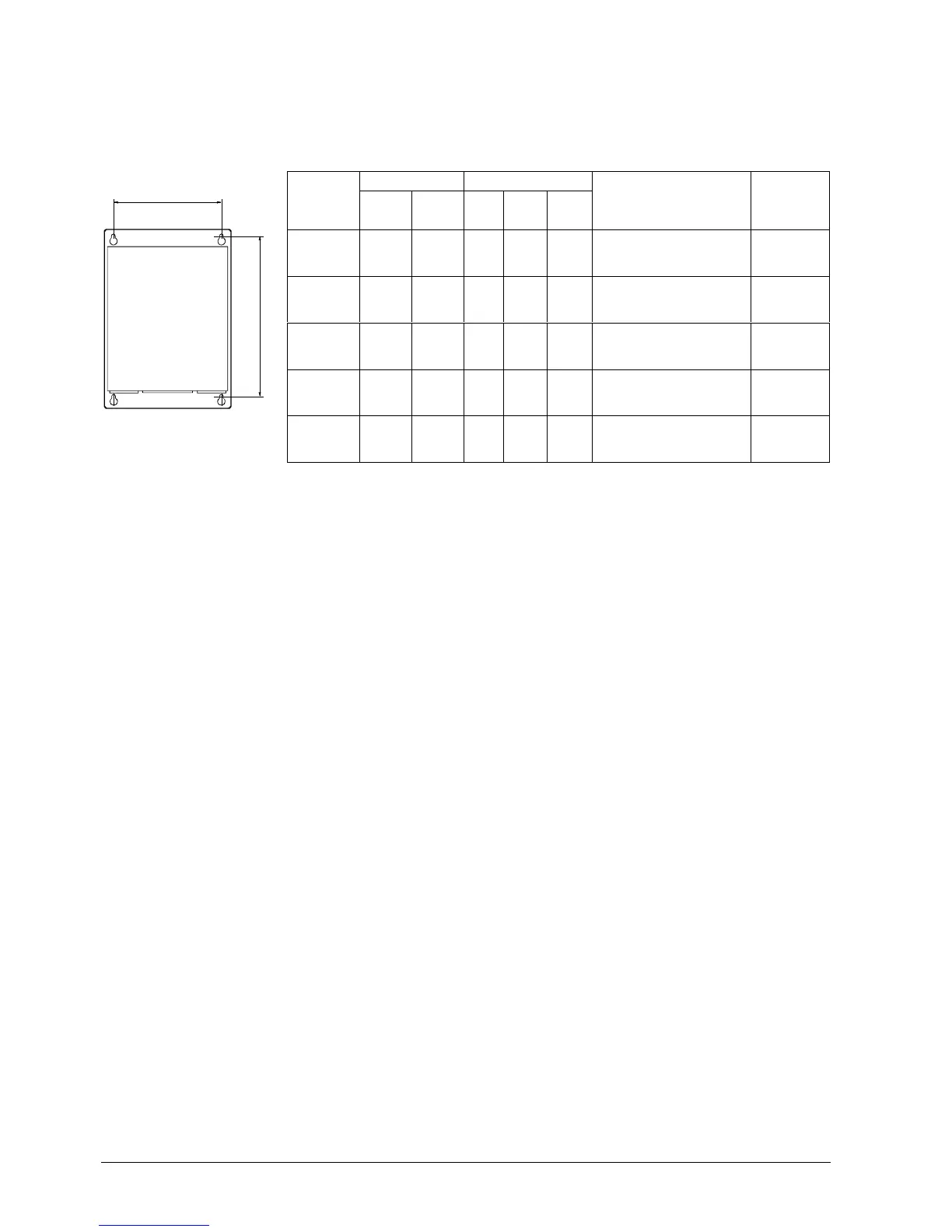

Drilling plan for SED2
IP54
W
H
5192M02
