60/126
Siemens Building Technologies SED2 variable speed drives CM1U5192en
HVAC Products Programming 01.2002

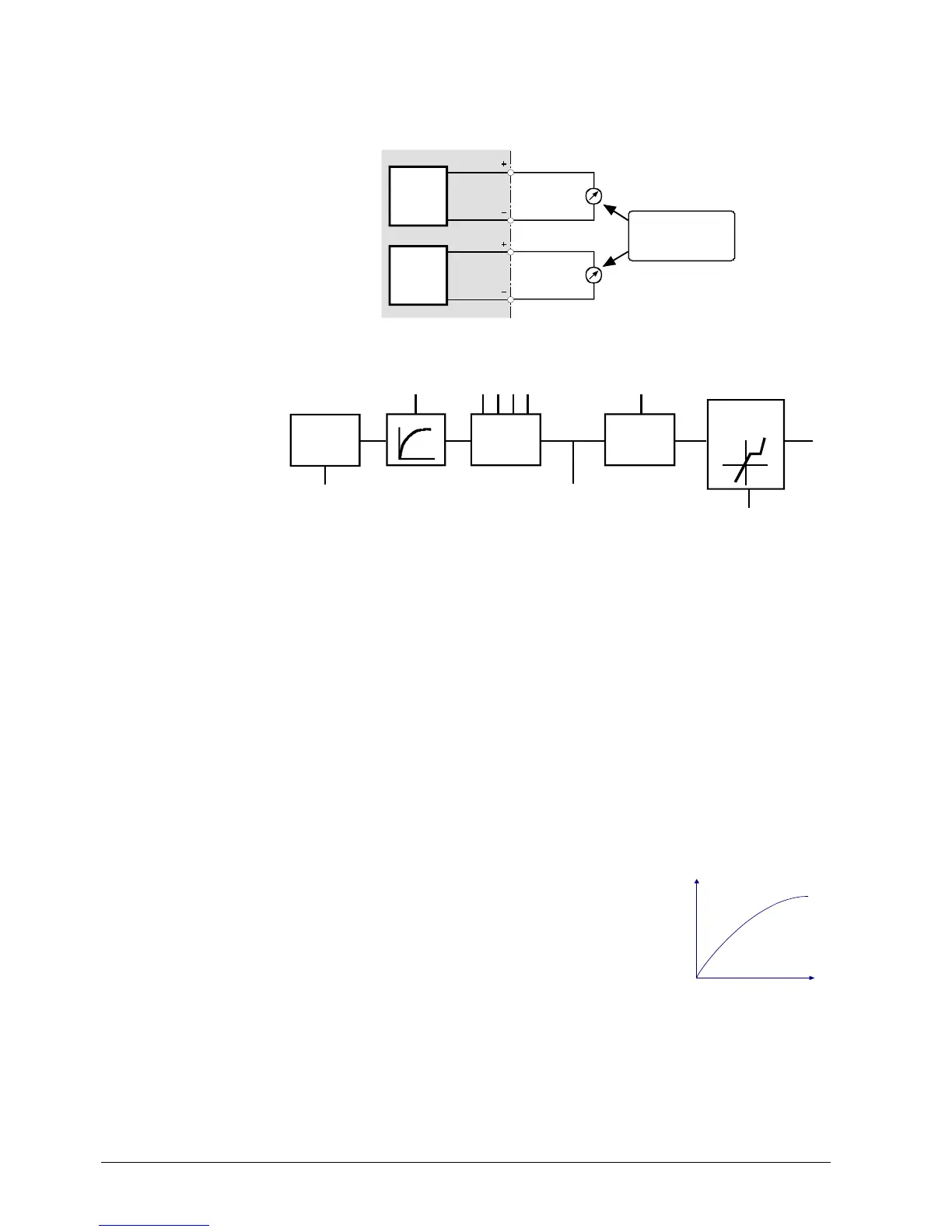

6.3.3 Analog outputs
The analog outputs primarily help display status variables such as output frequency,
motor voltage, or present motor current within the scaleable range.
AOUT1
D/A
V: 0 - 10 V
2-10V
I: 0 - 20mA
4-20mA
13
12
AOUT2
D/A
V: 0 - 10 V
2-10V
I: 0 - 20mA
4-20mA
27
26
Analog Output
r0770 - P0781
5192B03en
P0773
1+2
r0774
1+2
P0781
1+2
P0771
1+2
P0780
P0779
P0778
P0777
P0776
Function
SCAL
Output
Deadband
5192Z27en
Output:
Current or
voltage
r0770
Shows the number of available analog outputs.
P0771
Defines the physical status variable to be displayed as an analog signal.
Possible settings:
21 Present output frequency (scaled to P2000), (factory setting).
24 Present VSD output frequency (scaled to P2000).
25 Present output voltage (scaled to P2001).
26 Present link voltage (scaled to P2001).
27 Present output current (scaled to P2002).
Index:
P0771[0]: Analog output 1 (DAC 1).
P0771[1]: Analog output 2 (DAC 2).
P0773
This parameter enables smoothing for the DAC input with a
PT1 filter and determines the smoothing time in ms for the
analog output signals.
Setting range: 0 to 1000 ms
Recommended setting: 100 ms (factory setting)
Index:
P0773[0]: Analog output 1 (DAC 1).
P0773[1]: Analog output 2 (DAC 2).
Note: The filter is disabled for P0773 = 0.
Parameter setting for
AOUT1 and AOUT2
(commissioning)
Signal in %
Time in ms
