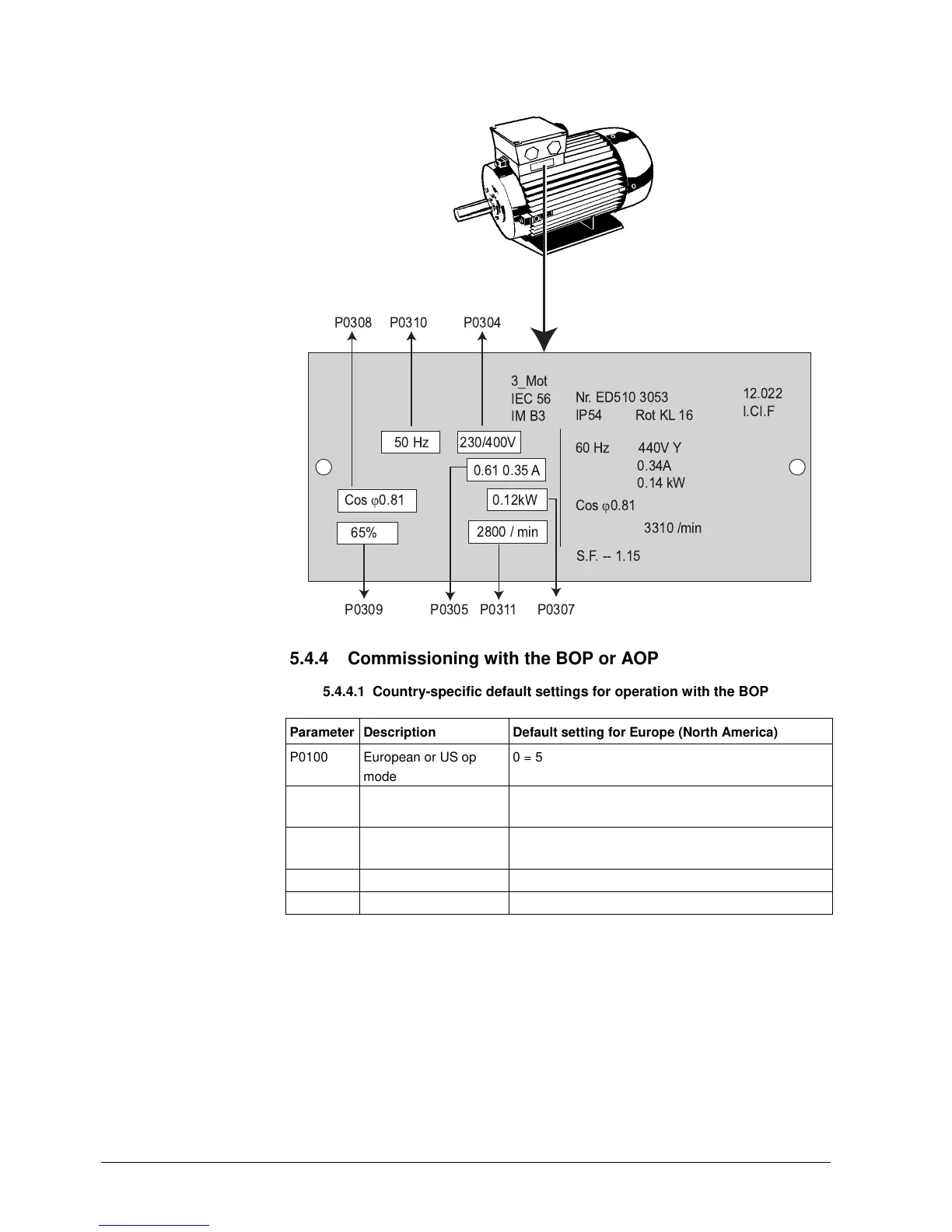

5.4.3 Motor data for parameterization
50 Hz
230/400V
0.61 0.35 A
Cos j 0.81
Cos j 0.81
65%
0.12kW
2800 / min
3_Mot
IEC 56
IM B3
Nr. ED510 3053
IP54 Rot KL 16
60 Hz 440V Y
0.34A
0.14 kW
3310 /min
S.F. -- 1.15
12.022
I.CI.F
P0308 P0310 P0304
P0309 P0305 P0311 P0307
5.4.4 Commissioning with the BOP or AOP
5.4.4.1 Country-specific default settings for operation with the BOP
Parameter Description Default setting for Europe (North America)
P0100
European or US op
mode
0=50Hz,kW
(1 = 60Hz, hp) (2 = 60Hz, kW)
1,2
.
P0307 Nominal motor power Value in kW (hp)
Unit depends on the setting in P0100
2
.
P0310
Nominal motor
frequency
50 Hz (60 Hz).
P0311 Nominal motor speed 1395 (1680) U/min (depends on model)
3
.
P1082 Max. motor frequency 50 Hz (60 Hz).
1
Use DIP switch 2 under the BOP/AOP. This overwrites the above parameter settings.
2
This parameter can only be modified if P00010 = 1 (commissioning mode).
3
This parameter can only be modified if P00010 = 1 or 3.
