Siemens SIMATIC HMI TP1200 Comfort User Manual

Technical information
8.10 Description of the ports
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
225

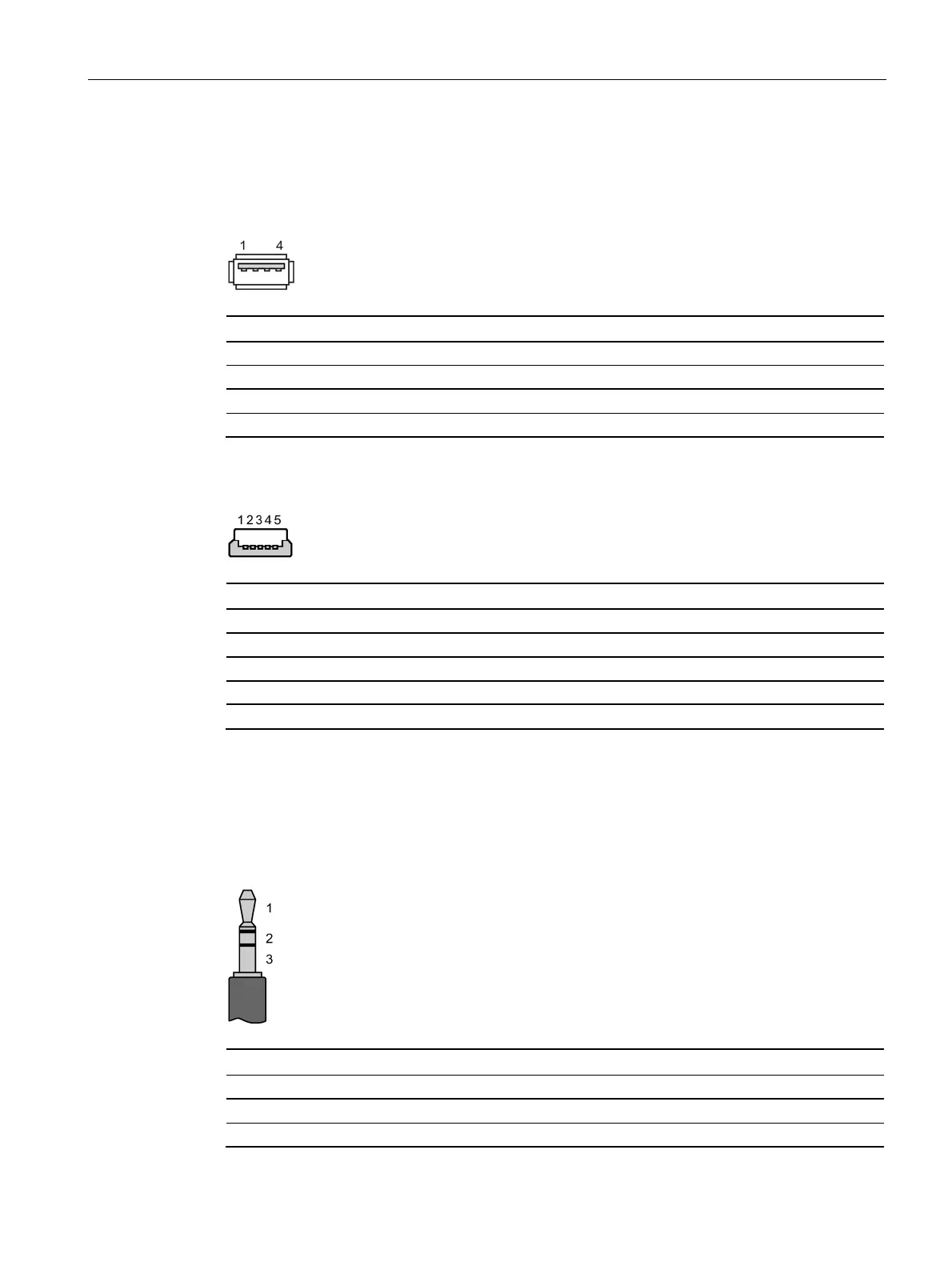

8.10.5
USB
USB socket type A
Name of interface on HMI device: X61/X62
Pin
Assignment
1 +5 VDC, out (max. 500 mA)
2
USB-DN
3 USB-DP
4
GND
USB socket type Mini-B of the Comfort V1/V1.1 devices
Name of interface on HMI device: X60
Pin
Assignment
1
-
2 USB-DN
3
USB-DP
4 -
5 GND
8.10.6
Audio
Name of interface on HMI device: X90
Audio plug
Pin
Assignment
1
Left audio channel
2
Right audio channel
3
GND
