Installing and connecting the device
3.2 Mounting the device
SIMATIC IOT2020, SIMATIC IOT2040
24 Operating Instructions, 10/2016, A5E37656492-AB
Mounting on DIN rails
Requirement
ā A DIN rail, 35 mm standard profile
The DIN rail is installed at the installation site.

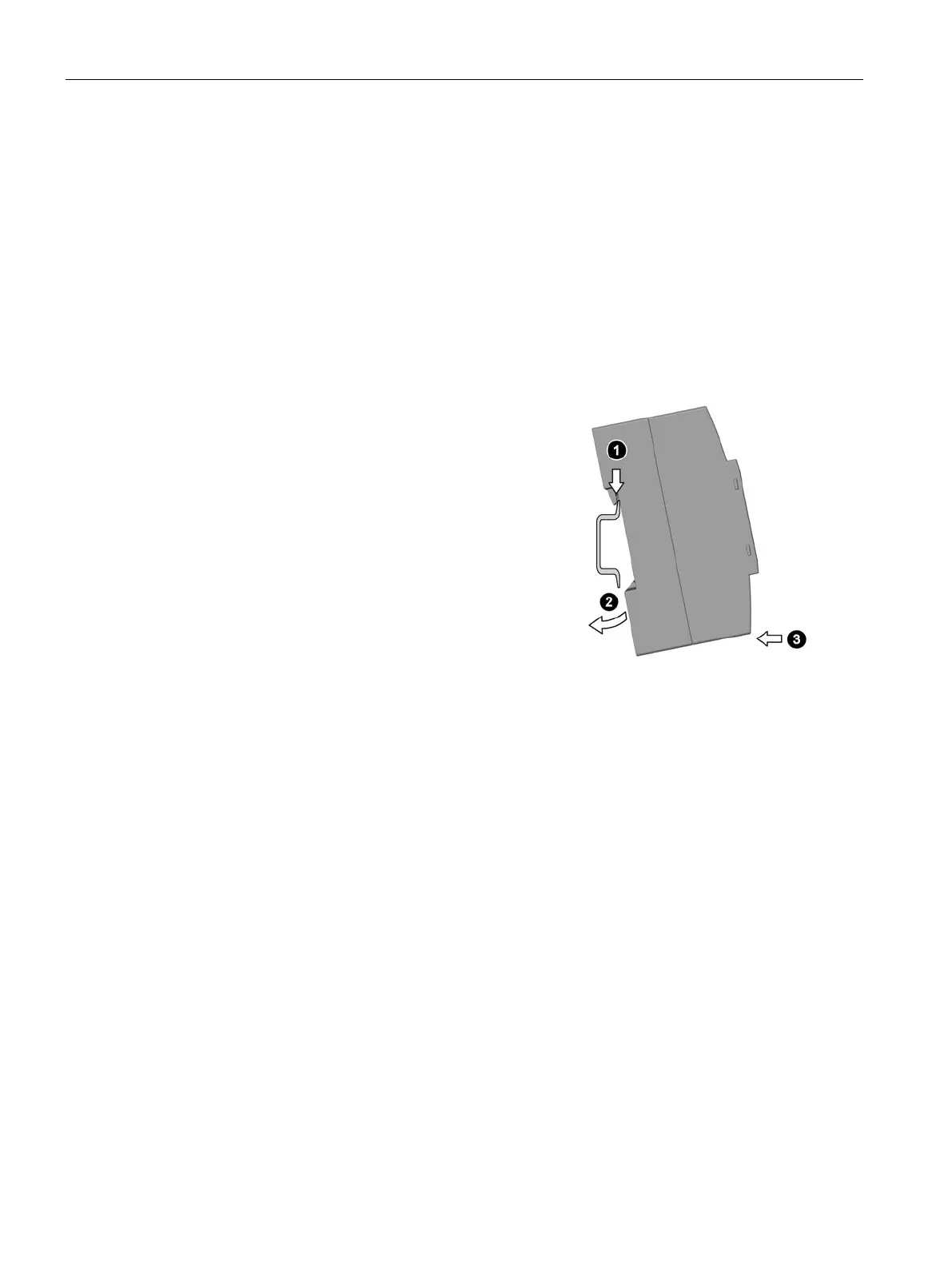

Place the device and rail clip on the upper
edge of the standard profile rail at the
position shown and push the device down.
Swing the rail clips of the device from
below via the standard profile rail.
Push the device in the direction of the
standard profile rail. You will hear the
device click into place.
1. Push down the device until it is released by the rail clips.
2. Swing the device out of the standard profile rail.
3. Lift the device up and off.
