Overview
1.2 Structure of the devices
SIMATIC IOT2020, SIMATIC IOT2040
Operating Instructions, 10/2016, A5E37656492-AB
9
1.2
Structure of the devices
1.2.1
SIMATIC IOT2020

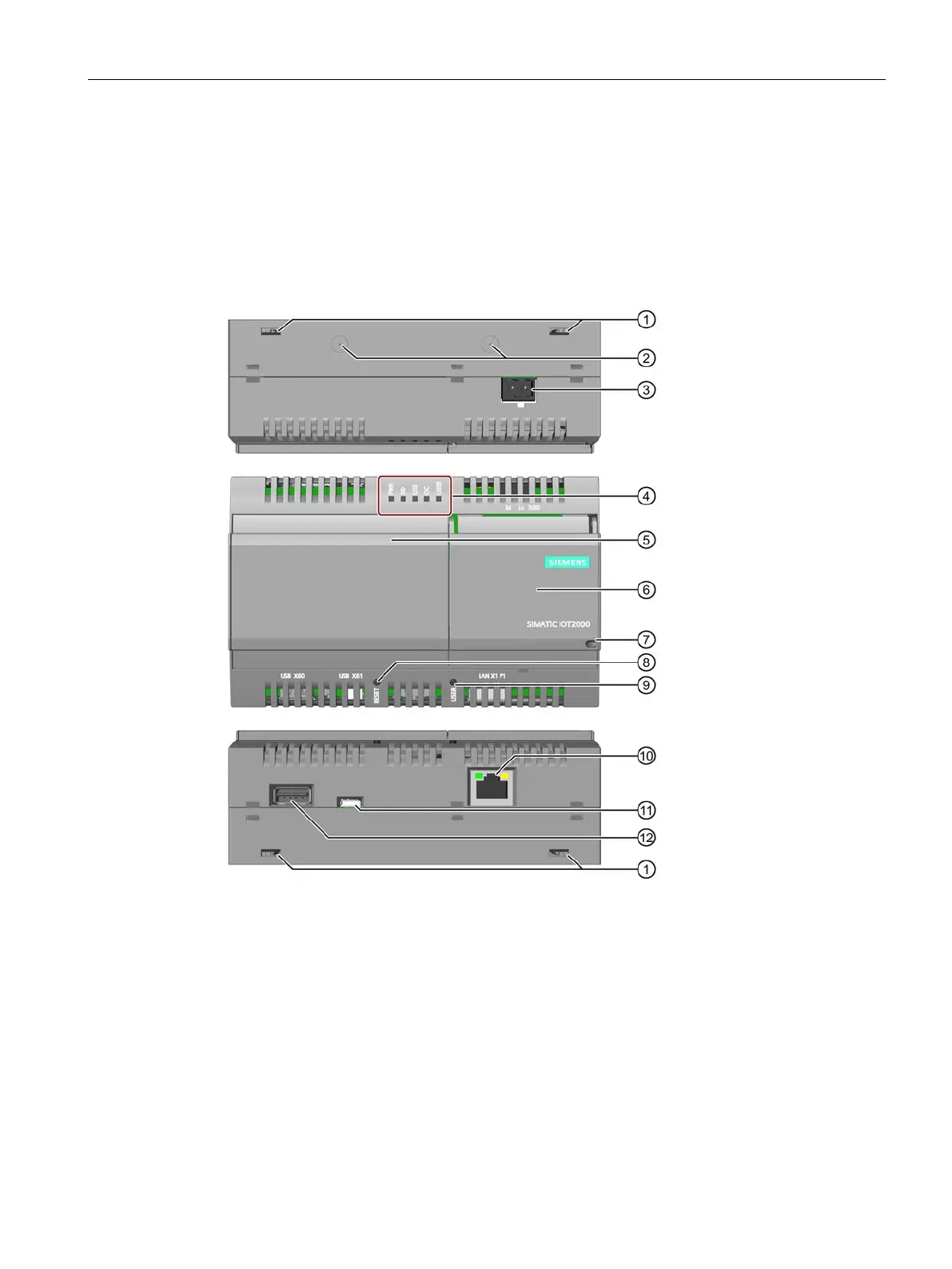

The following figures show the configuration and interfaces of the SIMATIC IOT2020.
Top view
Front view
Bottom view
①
Openings for push-in lugs for wall mounting
⑦
Securing device
②
Markings for the installation of antennae
⑧
RESET button for the CPU
③
Power supply connector
⑨
USER button, programmable
④
LED display, see section "Motherboard (Page 49)"
⑩
Ethernet interface 10/100 Mbps
⑤
Cover on left
⑪
USB Type Micro B
⑥
Cover on right
⑫
USB Type A
