Siemens SIMOCODE pro V PB User Manual

Description of system components
8.4 Current measuring modules (IM) for the SIMOCODE pro C, SIMOCODE pro S, and SIMOCODE pro V
device series
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
133
8.4 Current measuring modules (IM) for the SIMOCODE pro C,
SIMOCODE pro S, and SIMOCODE pro V device series
Current measuring modules can be used together with all device series.
The current measuring module must be selected according to the current setting to be
monitored for each feeder (rated operating current of the motor). The current measuring
modules cover current ranges between 0.3 A and 630 A, with interposing transformers up to
820 A.
Current measuring modules are available for the following current ranges (see figure below):
● 0.3 to 3 A with through-hole connection
● 2.4 to 25 A with through-hole connection
● 10 to 100 A with through-hole connection
● 20 to 200 A with through-hole technology or bus connection system
● 63 to 630 A with bus connection system

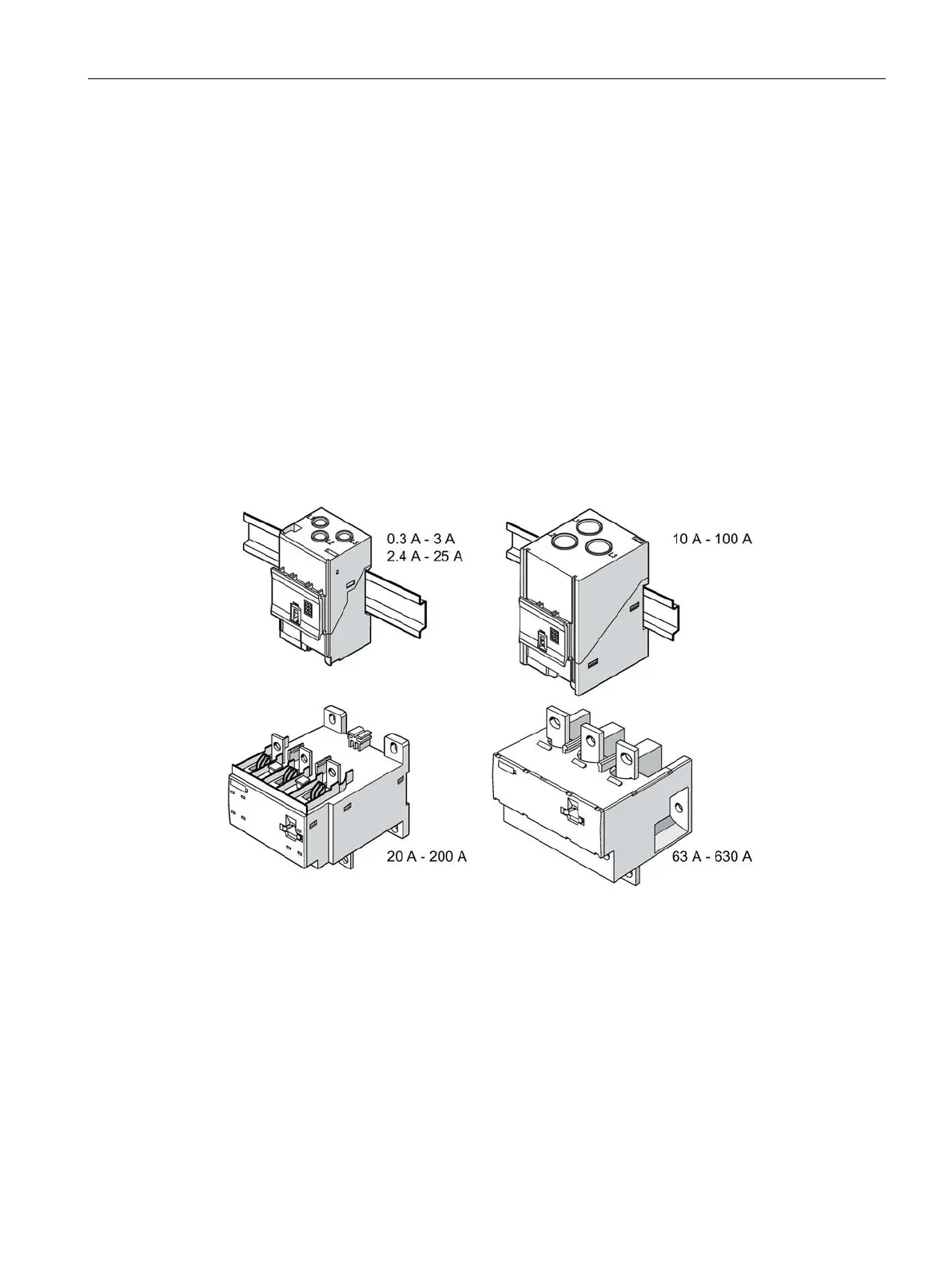

Figure 8-30 Types of current measuring modules
