Siemens SINAMICS G120P PM330 User Manual

Installing/Mounting
3.3 Mounting the Power Modules
Power Module PM330
Hardware Installation Manual, 10/2016, A5E32844552B AD
25
3.3.1
Chassis units
Drilling patterns, dimensions and clearances

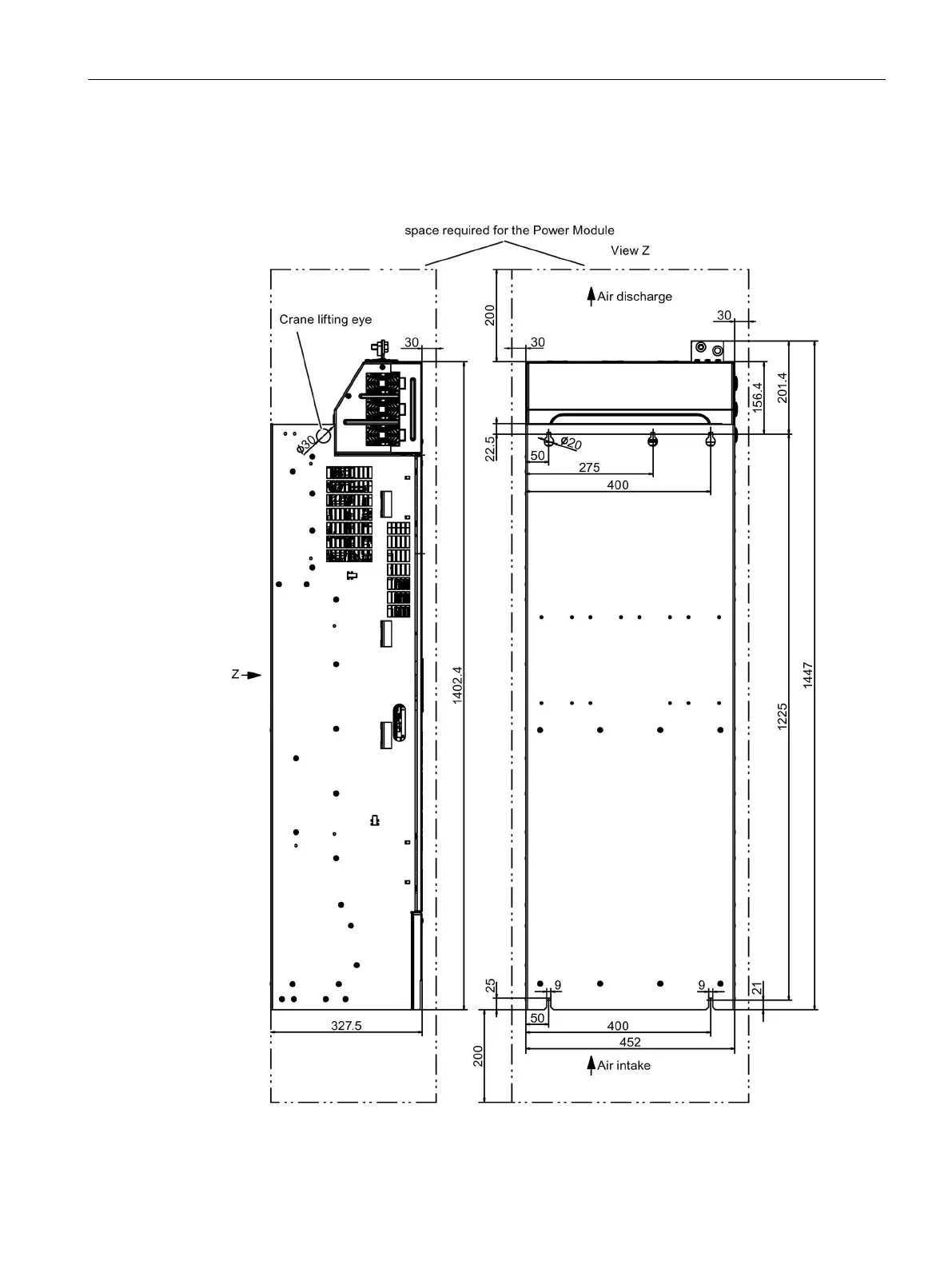

Figure 3-4 Dimension drawing of PM330 frame size GX, view from the side, view from the rear

Siemens SINAMICS G120P PM330 Specifications

General

Protection Class	IP20
Input Voltage	3AC 380-480V
Input Frequency	47 ... 63 Hz
Control Method	vector control
Ambient Temperature Range	-10°C to +50°C
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU, USS
