Siemens SINAMICS G120P PM330 User Manual

Technical specifications
6.3 Derating data
Power Module PM330
84 Hardware Installation Manual, 10/2016, A5E32844552B AD
Current

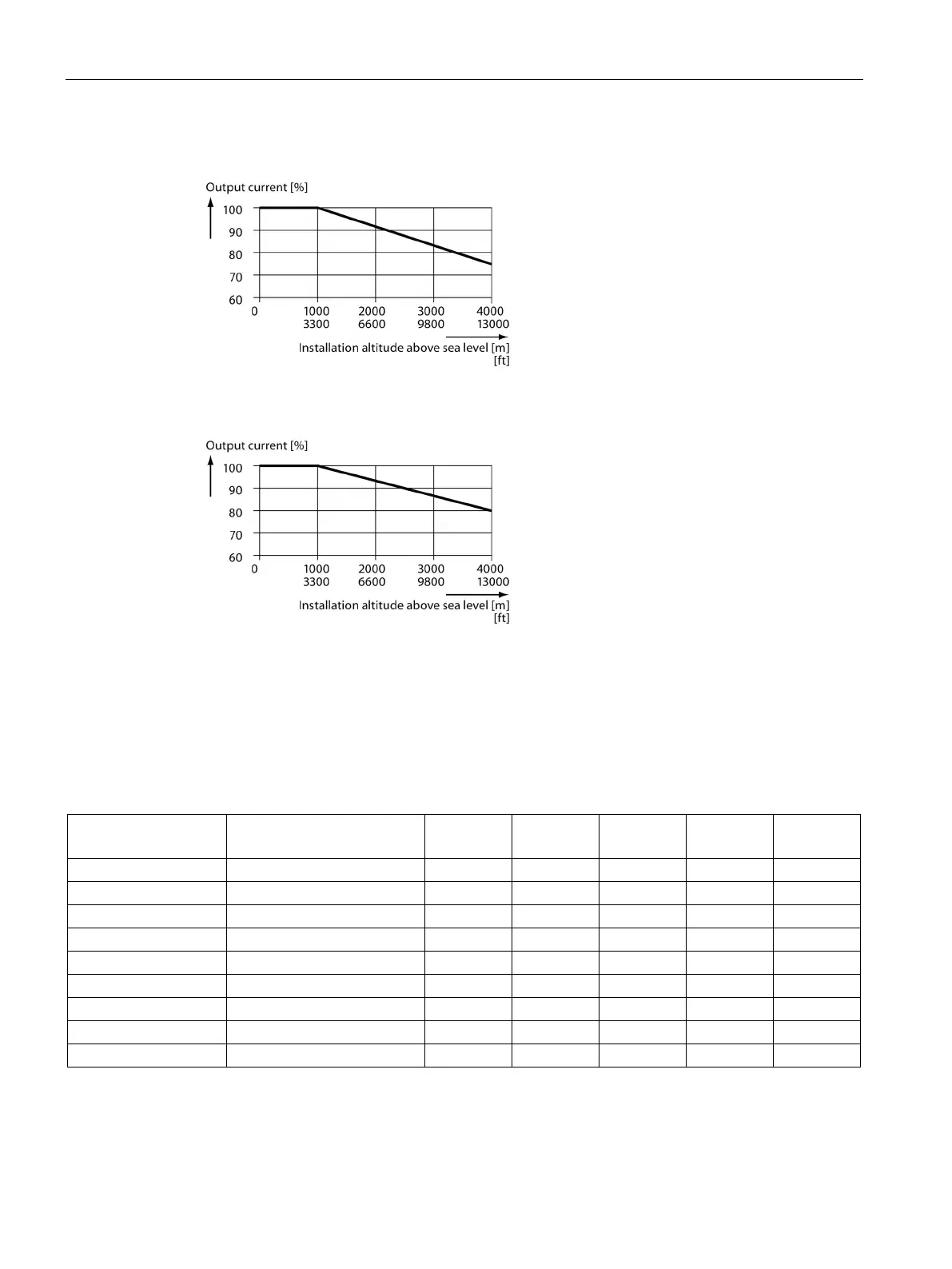

Figure 6-4 Derating of the output current in accordance with the installation altitude with frame
size GX
Figure 6-5 Derating of the output current as a function of the installation altitudes for frame sizes HX
and JX
6.3.3
Derating factor of the output current as a function of the line voltage
Table 6- 8 Derating of the output current as a function of the line voltage, 3 AC 380 V … 480 V
Power Module
Rated output current I
N
at
380 V/400 V
380 V
400 V
415 V
460 V
480 V
6SL3310-1PE33-0AA0
300 A
100 %
100 %
96.6 %
86.2 %
81.6 %
6SL3310-1PE33-7AA0
370 A
100 %
100 %
96.9 %
87.8 %
83.7 %
6SL3310-1PE34-6AA0
460 A
100 %
100 %
96.4 %
85.4 %
80.6 %
6SL3310-1PE35-8AA0
585 A
100 %
100 %
96.9 %
87.8 %
83.7 %
6SL3310-1PE36-6AA0
655 A
100 %
100 %
96.4 %
85.4 %
80.6 %
6SL3310-1PE37-4AA0
735 A
100 %
100 %
96.6 %
86.6 %
82.1 %
6SL3310-1PE38-4AA0
840 A
100 %
100 %
96.4 %
85.4 %
80.6 %
6SL3310-1PE38-8AA0
910 A
100 %
100 %
96.4 %
85.8%
81.2%
6SL3310-1PE41-0AA0
1021 A
100 %
100 %
96.8 %
87.3%
83.0%

Siemens SINAMICS G120P PM330 Specifications

General

Protection Class	IP20
Input Voltage	3AC 380-480V
Input Frequency	47 ... 63 Hz
Control Method	vector control
Ambient Temperature Range	-10°C to +50°C
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU, USS
