Modular Device Name Plate

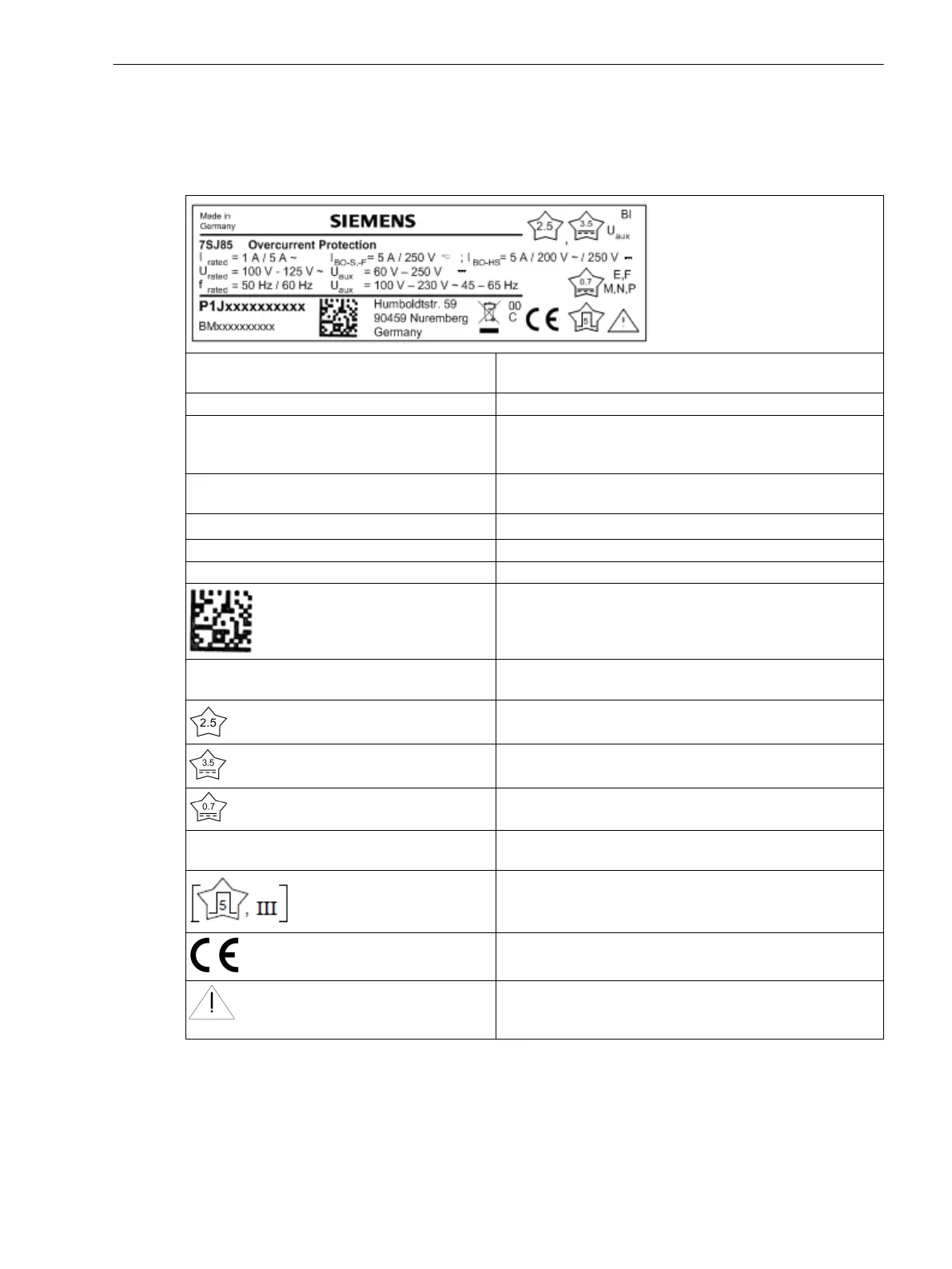

In the following table, the name plate of a modular device is explained as an example. The name plate is
located on the device.
7SJ85 Device type or, in the case of expansion modules, designa-
tion of the printed circuit board assembly
Overcurrent Protection Product group
I
rated
, U
rated
, f
rated
Rated values (which are specified when current and/or
voltage transformers are placed on the printed circuit board
assembly)
I
load
This value is specified when relays are placed on the printed
circuit board assembly.
V
aux
Values for the power supply
P1JXXXXXXXXXX Technical Numbering System (TNS), maximum 18 digits
BMXXXXXXXXXX Serial number
QR code
C Device hardware supports the operation of a redundant
power supply module
Insulation test of the voltage inputs, current inputs, and
binary outputs with AC 2.5 kV
Insulation test of the power supply (V
aux
) and binary inputs
(BI) with DC 3.5 kV
Insulation testing of all sealed-off interfaces with DC 700 V
E, F, M, N, P Designation of the ports into which the plug-in modules are
plugged.
5 kV impulse voltage test [type test] in compliance with
Class III
European CE marking
Pay attention to the overall documentation for the device
(Product information, Device manual, Hardware manual,
Operating manual, and Communication protocol manuals)
6.15
Technical Data
6.15 Modular Device Name Plate
SIPROTEC 5, Hardware Description, Manual 253
C53000-G5040-C002-F, Edition 06.2019
