29
Troubleshooting, Adjustment, & Service

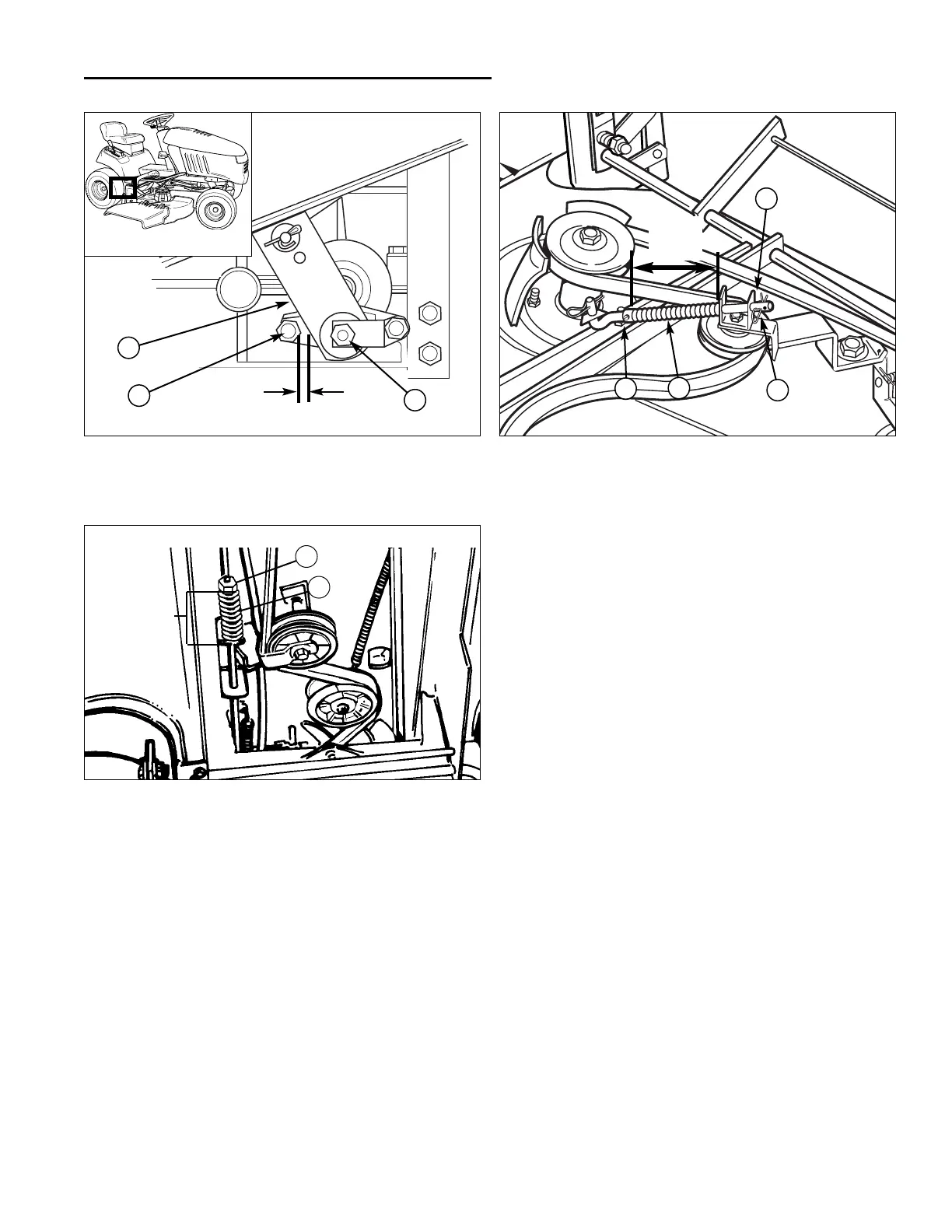

Figure 30. Brake Adjustment - Gear Models
A. Brake Cam Lever
B. Stop
C. Adjustment Nut
2-1/2 to
2-5/8
Figure 31. Brake Spring Adjustment - Gear Models
A. Nut B. Spring
B
A
BRAKE & BRAKE SPRING
ADJUSTMENT - GEAR MODELS
1. Place the transmission in gear and release the park-
ing brake.
2. See Figure 30. Move the brake cam lever (A) for-
ward. There should be a 1/8" (3 mm) gap between
the lever (A) and the stop (B) as shown.
3. To adjust clearance, turn nut (C) clockwise to
decrease the gap or turn nut counterclockwise to
increase the gap.
4. See Figure 31. Set the parking brake. Loosen or
tighten adjustment nut (C) to achieve a 2-1/2” to 2-
5/8” (6.35 cm to 6.67 cm) compressed spring length
as shown.
Figure 32a. PTO Clutch Adjustment
A. Clutch Spring D. U-Shaped Bracket
B. Set Collar
C. Cotter Pin
MOWER ADJUSTMENTS
PTO Clutch Adjustment
The PTO clutch adjustment should be checked whenev-
er clutch parts are replaced, when a new belt is installed,
or if the mower belt is slipping.
CLUTCH ROD ADJUSTMENT -
38” (97 CM) & 44”(112 CM) MODELS
NOTE: When adjusting 44” (112 cm) mowers, perform
the idler pulley adjustment found on the next page
FIRST. Clutch rod adjustment should only be performed
after the idler pulley has been adjusted.
1. Disengage the PTO lever. Set the mower height
adjustment lever to mid-cut position.
2. Loosen the set collar (B, Figure 32a).
3. Pull the clutch rod back until the cotter pin and wash-
er (C) contacts the U-shaped bracket (D). Slide the
set collar (B) forward to remove all slack from the
clutch rod and spring assembly. The collar should be
touching the spring, but not compressing it.
4. Tighten the set collar (B). Note: the set screw should
face the rear of the unit.
5. Engage the PTO lever.
6. Measure the length of the compressed clutch spring
(A). The spring should be 2-7/8” to 3” (7.3 cm to 7.62
cm) when compressed.
7. Check the mower blade stopping time. The blades
should stop within 5 seconds. If the blades do not
stop within 5 seconds contact your authorized dealer.
A
C
B
1/8”
Area of Detail
A
C
D
B
2-7/8
to 3”
To Next Page
