Sinee A90-4T060 User Manual

User Manual of A90 Series Inverter
223
Function
code
Function code name
Parameter
description
Unit
Default
setting
Attribute
F12.38
LCD large-line display parameter
1
0.00 - 99.99
18.00
●
F12.39
LCD large-line display parameter
2
0.00 - 99.99
18.06
●
F12.40
LCD large-line display parameter
3
0.00 - 99.99
18.09
●
Select the function code for LCD large line display. F12.38=18.00 means that the function
code F18.00 is displayed on the first line. When the LCD large line display is in the default
mode, three function codes (F18.00, F18.06 and F18.09) can be monitored on one screen.

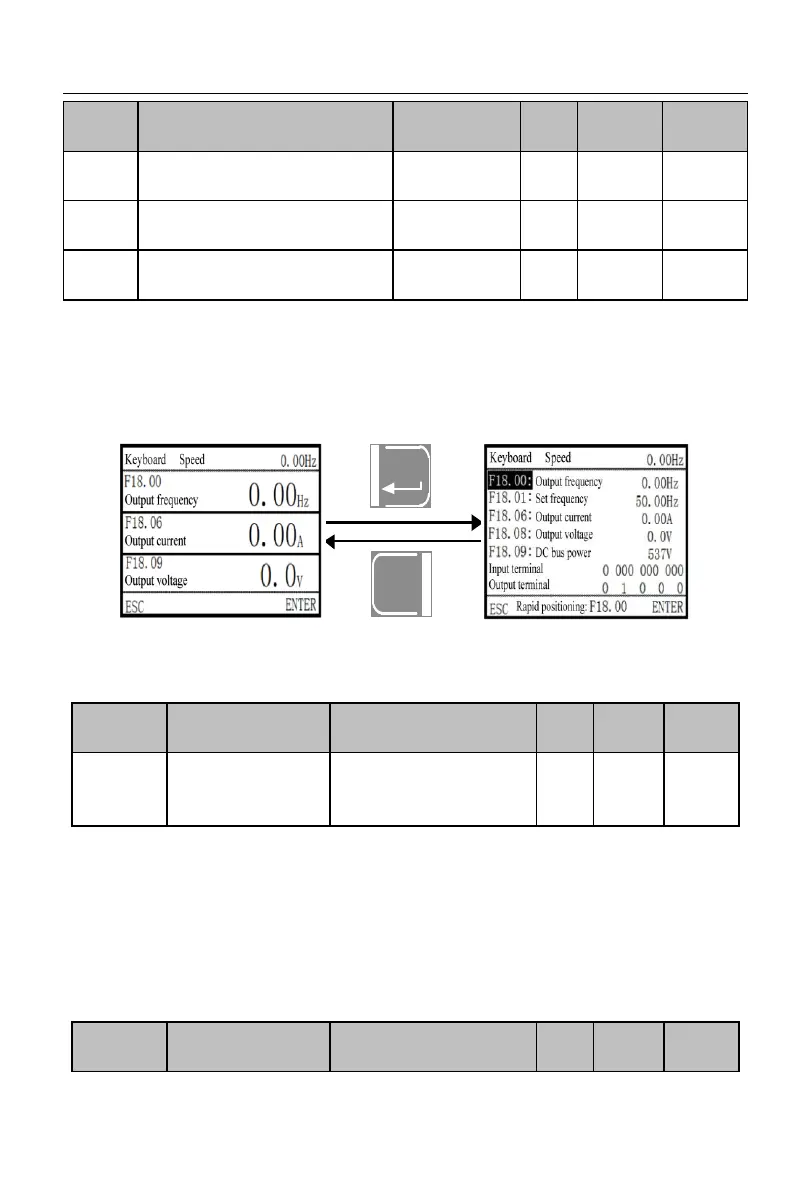

★ The small and large line display switching of the LCD keyboard is shown below.
ENTER
ESC
For the operation of the LCD keyboard, please refer to its instructions.
Refer to Section 4 of Chapter 4 for monitoring mode selection.
Function
code
Function code name
Parameter description
Unit
Default
setting
Attribute
F12.41
Options of
UP/DOWN zero
crossing
0: prohibit zero crossing
1: allow zero crossing
0
○
The UP/DOWN function is valid. When F12.41=0, the UP/DOWN function can
reduce the output frequency of the inverter to 0 without reversing. When F12.41=1, the
UP/DOWN function can reduce the output frequency of the inverter to 0, followed by
reverse running of the motor.
For the digital potentiometer setting, see the setting of the main frequency source A.
7.14 Torque Control Parameter Group of F13 Group
Function
code
Function code name
Parameter description
Unit
Default
setting
Attribute

Sinee A90-4T060 Specifications

General

Rated Power	60 kW
Output Power	60 kW
Frequency	50/60Hz
Input Voltage	380V - 480V
Output Voltage	380V - 480V
Efficiency	98%
Protection Features	Over voltage, Under voltage, Over current, Short circuit

Summary

Safety Precautions

Precautions

General safety guidelines before installation, during operation, and maintenance.

Before installation

Specific safety warnings and dangers related to inverter installation.

During installation

Safety warnings concerning installation location and components.

Warning

Warnings about handling components, installation location, and heat dissipation.

During wiring

Dangers and warnings associated with wiring the inverter and its components.

Before power-on

Safety checks required before powering on the inverter, including voltage and connections.

After power-on

Safety precautions to follow after the inverter is powered on, emphasizing avoiding contact with live parts.

During operation

Safety warnings to prevent injury or damage during inverter operation.

During maintenance

Critical safety measures for performing maintenance, including power-off procedures.

Chapter 2 Installation

2.1 Product check

2.3 Installation Site Requirements and Management

Critical conditions and management aspects for the inverter's installation site.

Chapter 3 Wiring

3.1 Connection of Peripheral Device

3.2 Wiring of Main Circuit Terminal

Composition and schematic layout of the inverter's main circuit terminals.

3.2.4 Input side wiring of main circuit

3.2.5 Output side wiring of main circuit

3.2.7 Ground wire

Essential requirements and methods for proper grounding of the inverter.

3.3 Wiring of Control Circuit Terminal

Introduction to the control circuit terminals and their functionalities.

Chapter 4 KEYBOARD OPERATIONS

4.1 Keyboard Functions

Chapter 5 Trial run

5.1 Inverter Commissioning Process

5.2 Confirmation before Power-on

A comprehensive checklist for verifying all connections and settings before powering on.

5.5 Start and Stop Control

5.7 Motor Parameter Identification

Explains the process of identifying motor parameters to optimize inverter control.

Chapter 7 Function Code Details

7.2 Motor 1 parameter group of F01 group

7.3 Function Parameter Group of Input Terminal of F02 Group

7.4 Function Parameter Group of Output Terminal of F03 Group

7.7 Vector Control Parameter Group of F06 Group

7.8 Fault Protection Parameter Group of F07 Group

7.11 Communication Function Parameter Group of F10 Group

7.13 Keyboard and Display Function Parameter Group of F12 Group

Chapter 8 Motor Parameter Self-identification

8.1 Motor Parameter Self-identification

Importance and process of motor parameter self-identification for vector control.

8.2 Precautions before Self-identification

Precautions to take before performing motor parameter self-identification.

8.3 Self-identification Steps

Step-by-step procedure for performing motor parameter self-identification.

Chapter 9 Fault/Warning Solutions

9.1 Fault content

Table detailing fault codes, types, causes, and solutions for common inverter issues.

9.2 Failure Analysis

Analysis of common failures related to parameter settings and motor rotation issues.

Chapter 10 Maintenance

10.1 Daily Maintenance of Inverter

Procedures for daily inspection and regular maintenance of the inverter.

Chapter 12 MODBUS Communication Protocol
