1 Construction Mode
1.1 Construction Mode Setup
Before power can be supplied to the controller, the controller should be placed in Construction Mode.
The required temporary connections and jumpers on a C4 controller under Construction Mode is shown
in Figure 1. Once the controller is in Construction Mode, it can be powered on.

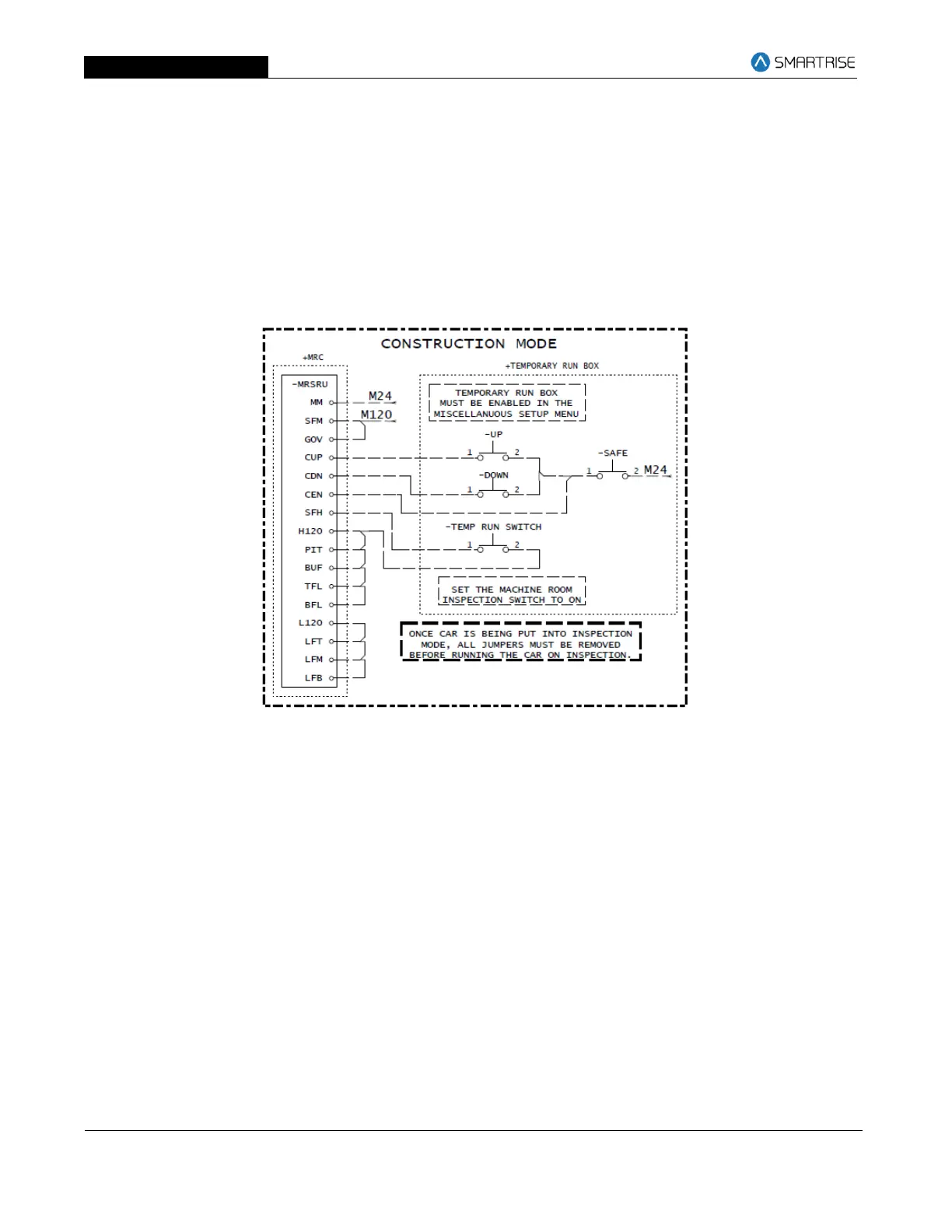

Figure 1: Construction Mode Connections on a C4 Controller
1.2 Drive Setup
Once the controller is powered on, the motor drive can be set up. See the Drive Specific Manual to know
how to set up the drive.
Induction (geared) motors can run immediately after the wiring is completed; however, if the drive type is
KEB, it is recommended to tune the motor first.
Permanent Magnet (gearless) motors will need to be tuned before they can operate. Follow the initial
tuning steps on the Drive Specific Manual.
1.3 Fire Service Bypass
To bypass the Fire Service, turn on DIP B6 and set parameter 01-0131 to ON.
Follow these instructions to set parameter 01-0131 to ON:
