Connect the System
7
Basic Installation Procedure
1. Connect the LAN: Connect the Wireless Barricade to your
PC, or to a hub or switch. Run Ethernet cable from one of the
LAN ports on the rear of the Wireless Barricade to your
computer’s network adapter or to another network device.
You may also connect the Wireless Barricade to your PC
(using a wireless client adapter) via radio signals.
2. Connect the WAN: Use an Ethernet cable for connecting the
Wireless Barricade
to a cable/xDSL modem or Ethernet router.
3. Power on: Connect the power adapter to the Wireless
Barricade.

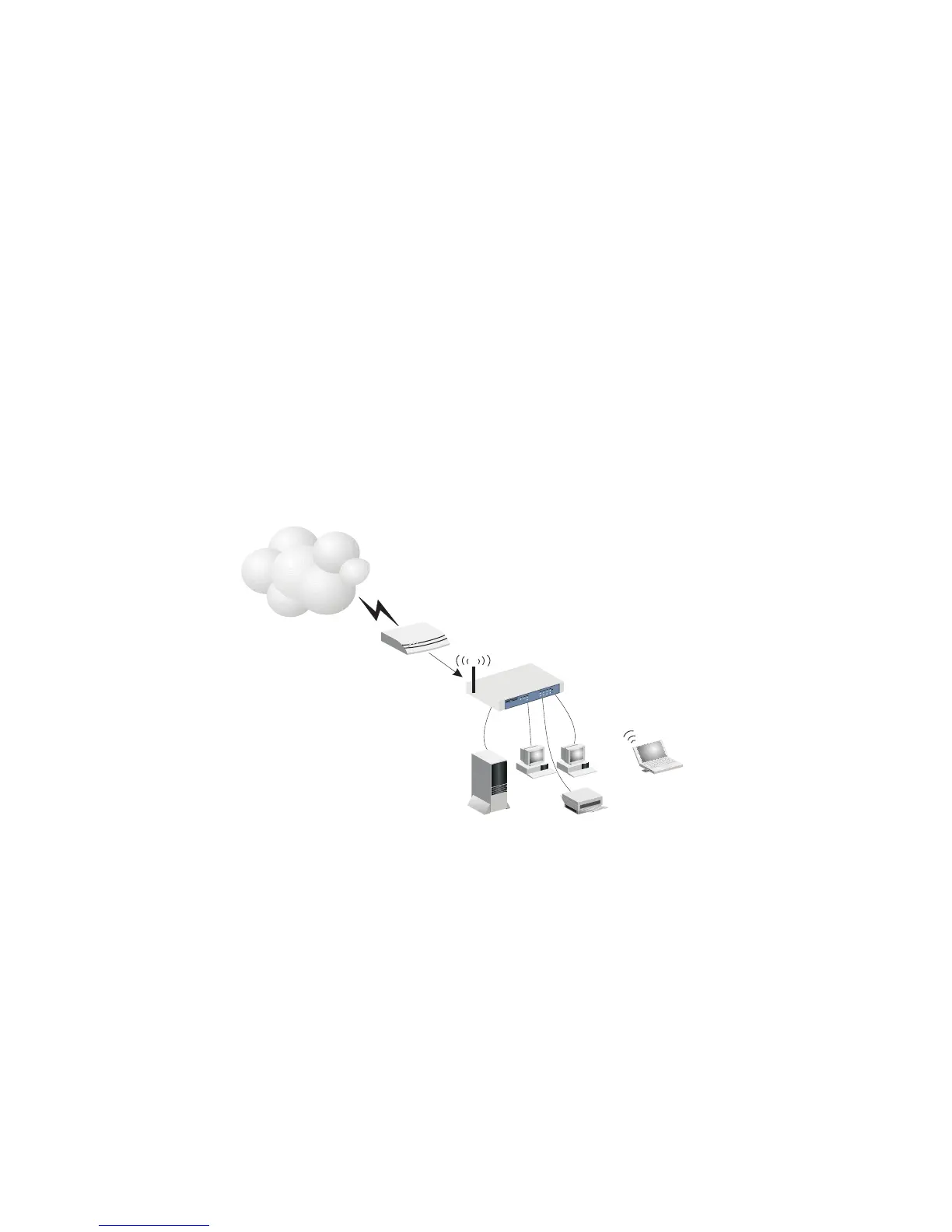

Figure 2. Example Network Configuration
Internet
Access
Device
Wireless
Router
Cable/DSL
Broadband
SOHO Office or Residence
Notebook with
Wireless PC Card
Internet
