I
NSTALLATION
2-8
Application Example

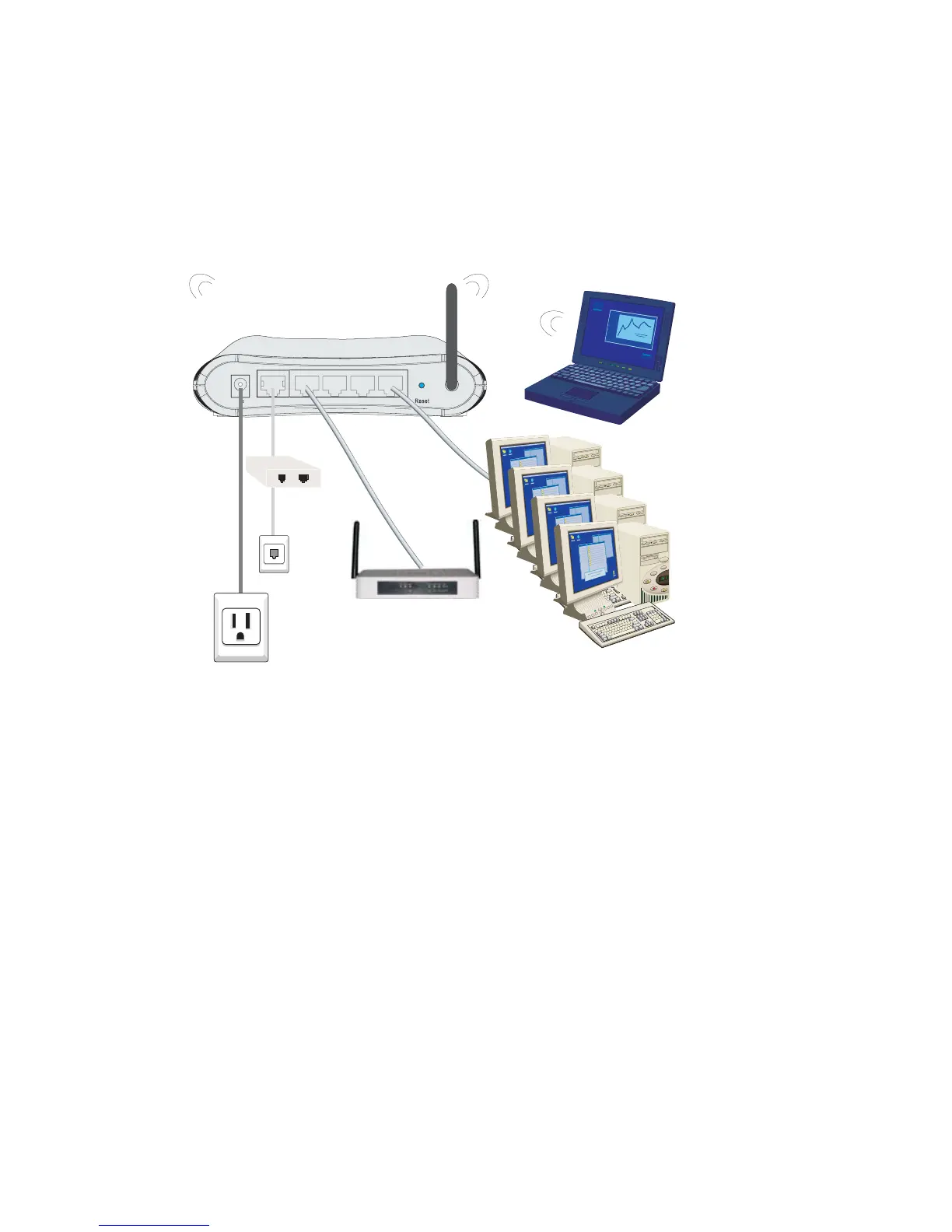

The following diagram shows a typical network application.
9V 1A WAN LAN1 LAN2 LAN3 LAN4
Phone
ADSL
