SMC Networks HRZ001-L User Manual

HRX-OM-I051
Chapter 5 System Operation
5.3 Operation Screen HRZ Series
5-4

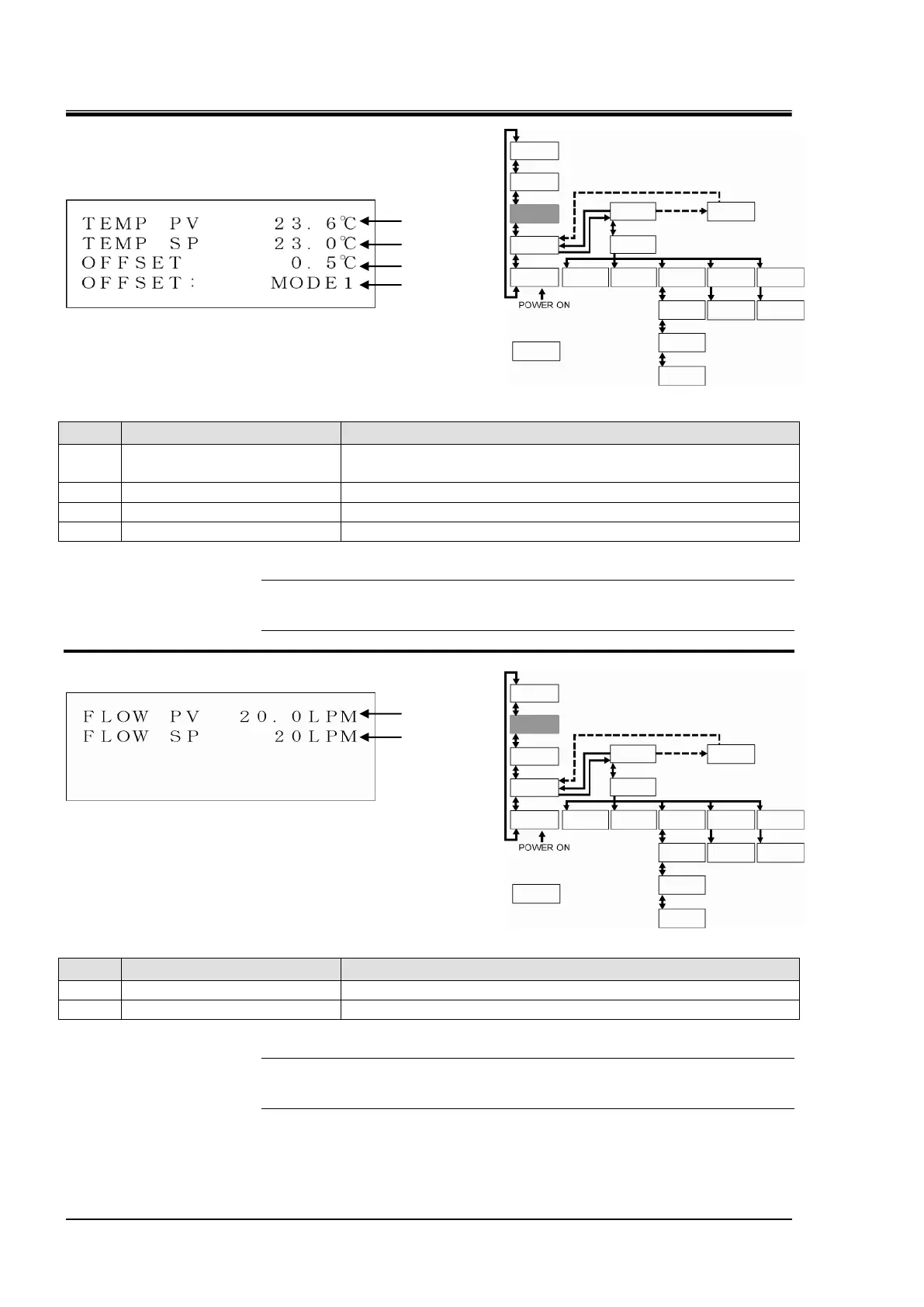

5.3.3 Status screen 2
Figure 5-5 Status Screen 2
Table 5-4 Status Screen 2
No.
Item
Descriptions
1
TEMP PV
Discharge temperature of the circulating fluid
(A value derived according to the offset
*1
if applied)
2
TEMP SP
Set circulating fluid temperature
3
OFFSET
Set offset
*1
4
OFFSET
The current offset mode
[Tips]
See “Appendix 8.4 Offset Function” in Chapter 8 on page 8-18 on offset
features (*1).
5.3.4 Status screen 3
*Status screen 3 is only indicated on HRZ010-W*S.
Figure 5-6 Status Screen 3
Table 5-5 Status Screen 3
No.
Item
Descriptions
1
FLOW PV*
1
Return flow rate of the circulating fluid
2
FLOW SP*
1
Set Return flow rate
[Tips]
When using accessory [by-pass piping set] flow becomes total of flow on
customer side and flow on by-pass (*1).
1
2
3
4
1
2
