No one but someone who has enough knowledge about the product and
incidental devices should reinstall in another place. And following instructions
must be executed.
If you move the product and reinstall it into another place after some operations (including trial running),
instructions that are not only following ones but also all of those in the chapter 2 should be followed.
Disassembly of the power cable
Cut off the power source when you disassemble the power cable.
Disassembly of the air piping
Remove the seal tape completely after detaching the piping. Remained tape will cause imperfect cooling
and failure by entering into the body of the product.
Residual compressed air pressure release procedure
Even while the dryer is removed, only when compressed air is needed, open the bypass piping valve.
Close the compressed air inlet and outlet valve.
Unscrew the front panel fixing screw (in 2 points) and remove the front panel with upholding it a little.

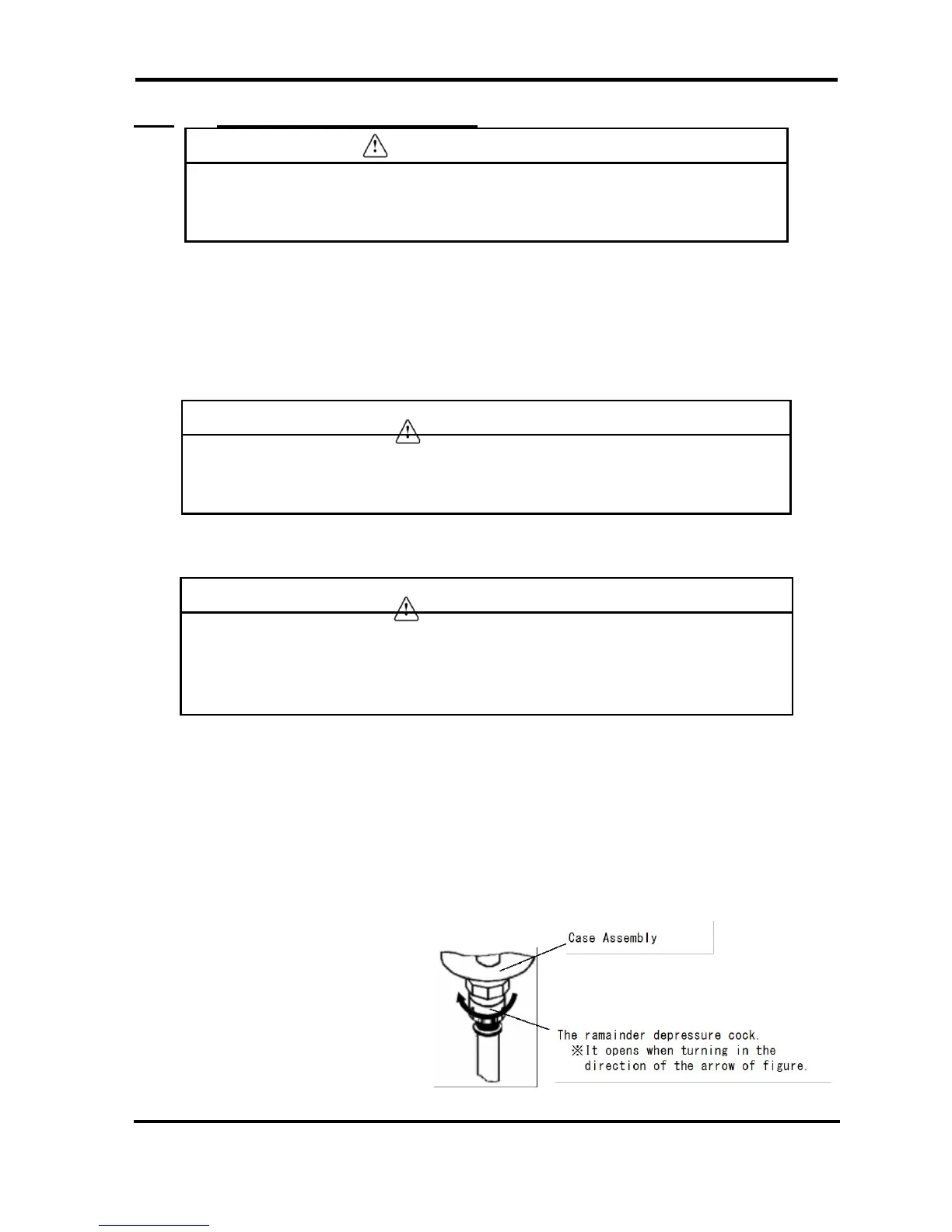

Open the residual pressure release cock of auto drain tube, and release compressed air pressure left inside of
the product. Refer to the figure at right .
No one but qualified personnel should do the electric wiring.
Cut off the power supply for safety before the wiring. Do not work under energized
condition.
No one but qualified personnel should do the air piping.
Separate the compressor from the product for safety before removing the piping.
Do not remove any piping when there is remaining compressed air pressure inside
of it.
To Next Page
