LUBRiCATiON
Service Interval: 25 hours.
Lubricate the unit at the locations shown in Figures 15
through 19 as well as the following lubrication points.
Gtease:
_/r • front wheel grease fittings
front wheel bushings
mower pivots
mower arbors
Use grease fittings when present.
Not all greases are compatible. Use automotive-type
lithium grease.
Oil:
• hydro linkage
brake linkage
mower deck height adjustment linkage
control lever linkage
Generally, all moving metal parts should be oiled
where contact is made with other parts. Keep oil and
grease off belts and pulleys. Remember to wipe fittings
and surfaces clean both before and after lubrication.

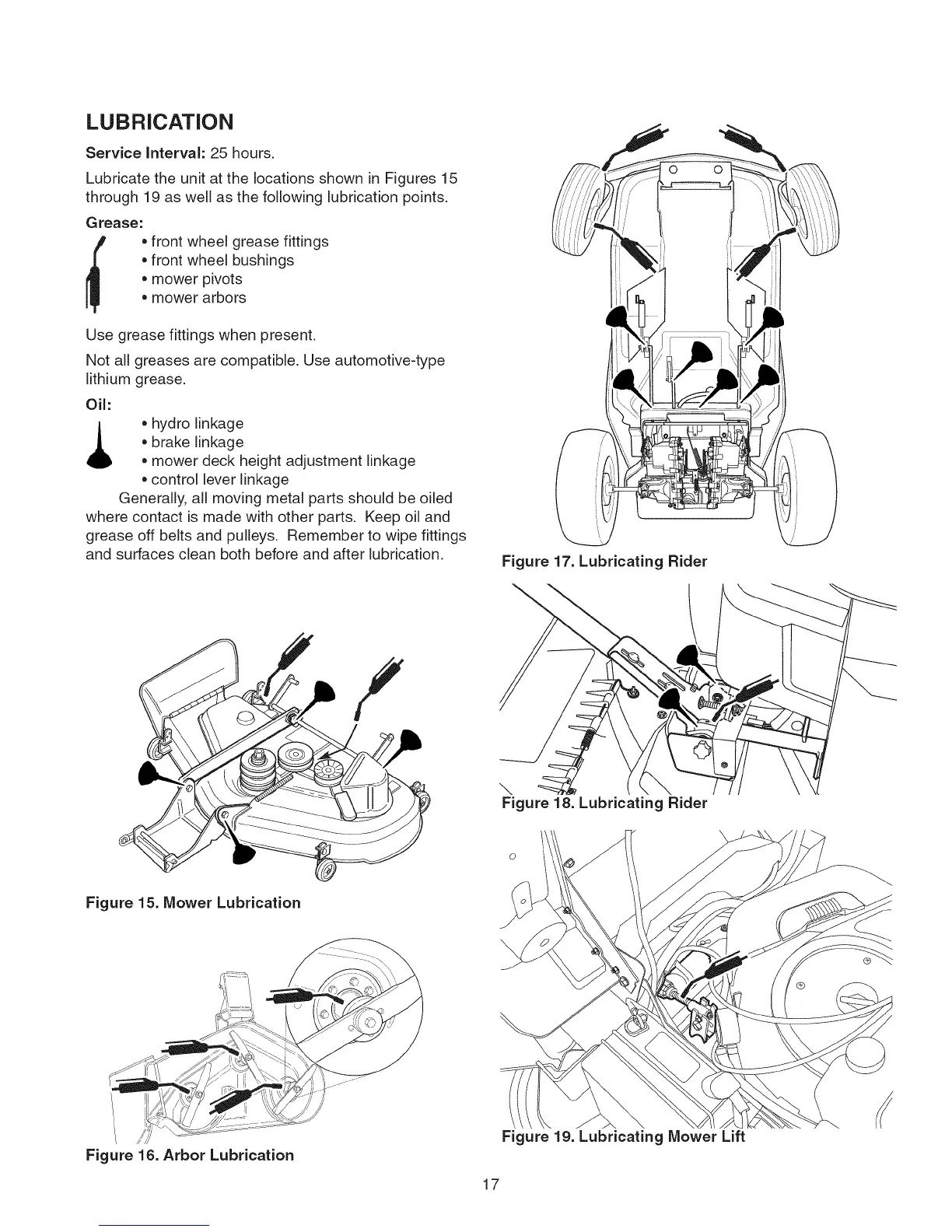

Figure 15. Mower Lubrication
Figure 17. Lubricating Rider
\
\
Figure 18. Lubricating Rider
Figure 16. Arbor Lubrication
Figure 19. Lubricating Mower Lift
17
