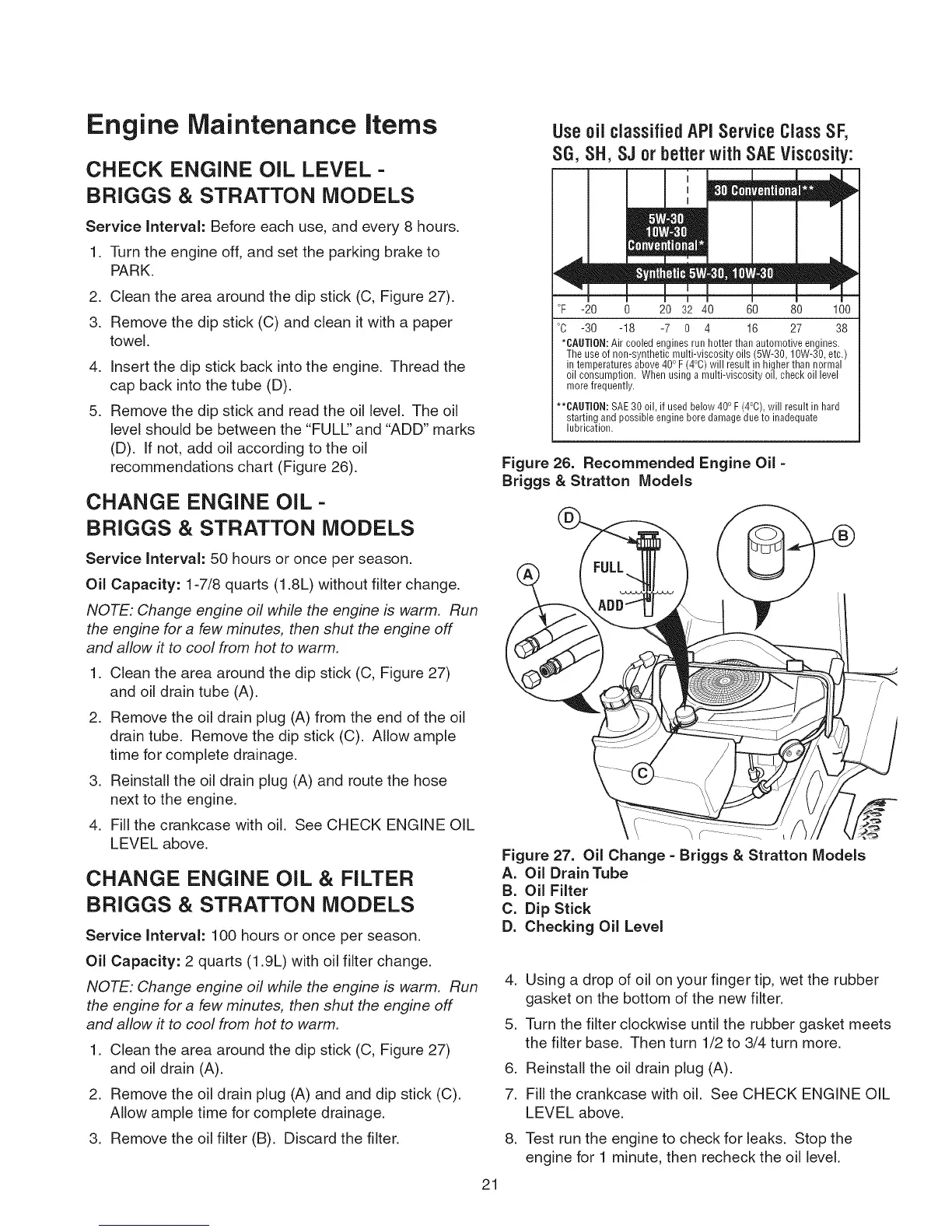

Engine Maintenance items
CHECK ENGINE OiL LEVEL -
BRIGGS & STRATTON MODELS
Service Interval: Before each use, and every 8 hours.
1. Turn the engine off, and set the parking brake to
PARK.
2. Clean the area around the dip stick (C, Figure 27).
3. Remove the dip stick (C) and clean it with a paper
towel.
.
.
Insert the dip stick back into the engine. Thread the
cap back into the tube (D).
Remove the dip stick and read the oil level. The oil
level should be between the "FULl" and "ADD" marks
(D). If not, add oil according to the oil
recommendations chart (Figure 26).
CHANGE ENGINE OiL -
BRIGGS & STRATTON MODELS
Service Interval: 50 hours or once per season.
Oil Capacity: 1-7/8 quarts (1.8L) without filter change.
NOTE: Change engine oil while the engine is warm, Run
the engine for a few minutes, then shut the engine off
and allow # to cool from hot to warm,
1. Clean the area around the dip stick (C, Figure 27)
and oil drain tube (A).
2. Remove the oil drain plug (A) from the end of the oil
drain tube. Remove the dip stick (C). Allow ample
time for complete drainage.
3. Reinstall the oil drain plug (A) and route the hose
next to the engine.
4. Fill the crankcase with oil. See CHECK ENGINE OIL
LEVEL above.
CHANGE ENGINE OiL & FILTER
BRIGGS & STRATTON MODELS
Service Interval: 100 hours or once per season.
Oil Capacity: 2 quarts (1.9L) with oil filter change.
NOTE: Change engine oil while the engine is warm. Run
the engine for a few minutes, then shut the engine off
and allow it to cool from hot to warm.
1. Clean the area around the dip stick (C, Figure 27)
and oil drain (A).
2. Remove the oil drain plug (A) and and dip stick (C).
Allow ample time for complete drainage.
3. Remove the oil filter (B). Discard the filter.
21
Useoil classifiedAPI Service ClassSF,
SG, SH,SJ or better with SAEViscosity:
i
,
I r-
!N
'1
I
°F -20 0 20 32 40 60 80 100
°C -30 -18 -7 O 4 16 27 38
*CAUTION:Air cooled engines run hotter than automotive engines.
The use of non-synthetic multi-viscosity oils (5W-30, 10W-30, etc.)
in temperatures above 400F(4°C) will result in higher than normal
oil consumption. When using a multi-viscosity oil, check oil level
more frequently.
**CAUTION: SAE30 oil, if usedbelow 40° F (4°C), will result in hard
starting and possible engine bore damagedue to inadequate
lubrication.
Figure 26. Recommended Engine Oil =
Briggs & Stratton Models
Figure 27. Oil Change =Briggs & Stratton Models
A. Oil Drain Tube
B. Oil Filter
C. Dip Stick
D. Checking Oil Level
4. Using a drop of oil on your finger tip, wet the rubber
gasket on the bottom of the new filter.
5. Turn the filter clockwise until the rubber gasket meets
the filter base. Then turn 1/2 to 3/4 turn more.
6. Reinstall the oil drain plug (A).
7. Fill the crankcase with oil. See CHECK ENGINE OIL
LEVEL above.
8. Test run the engine to check for leaks. Stop the
engine for 1 minute, then recheck the oil level.
To Next Page
