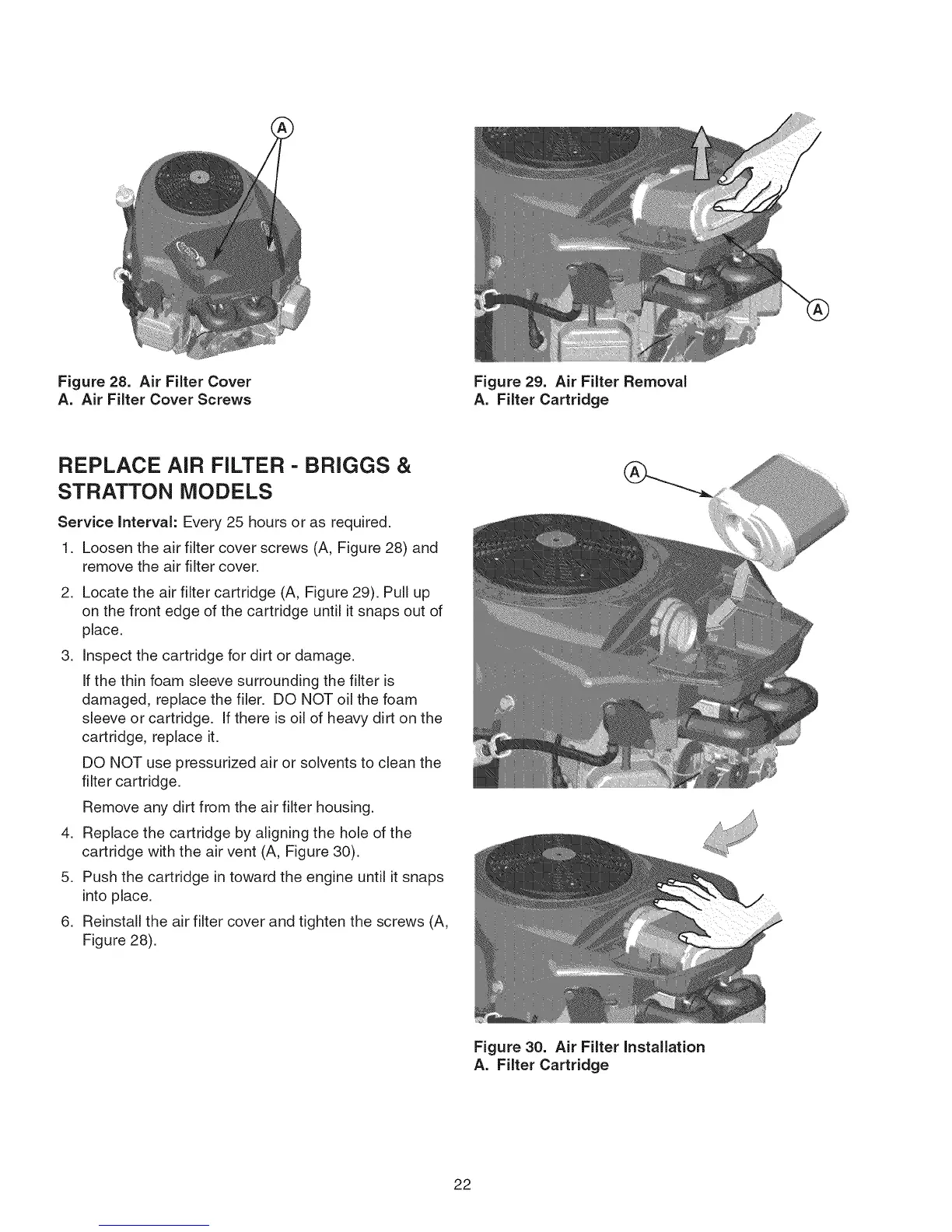

Figure 28. Air Filter Cover
A. Air Filter Cover Screws
REPLACE AIR FILTER - BRIGGS &
STRATTON MODELS
Service Intervah Every 25 hours or as required.
1. Loosen the air filter cover screws (A, Figure 28) and
remove the air filter cover.
2. Locate the air filter cartridge (A, Figure 29). Pull up
on the front edge of the cartridge until it snaps out of
place.
3. Inspect the cartridge for dirt or damage.
If the thin foam sleeve surrounding the filter is
damaged, replace the filer. DO NOT oil the foam
sleeve or cartridge. If there is oil of heavy dirt on the
cartridge, replace it.
DO NOT use pressurized air or solvents to clean the
filter cartridge.
Remove any dirt from the air filter housing.
4. Replace the cartridge by aligning the hole of the
cartridge with the air vent (A, Figure 30).
5. Push the cartridge in toward the engine until it snaps
into place.
6. Reinstall the air filter cover and tighten the screws (A,
Figure 28).
Figure 29. Air Filter Removal
A. Filter Cartridge
Figure 30. Air Filter Installation
A. Filter Cartridge
22
