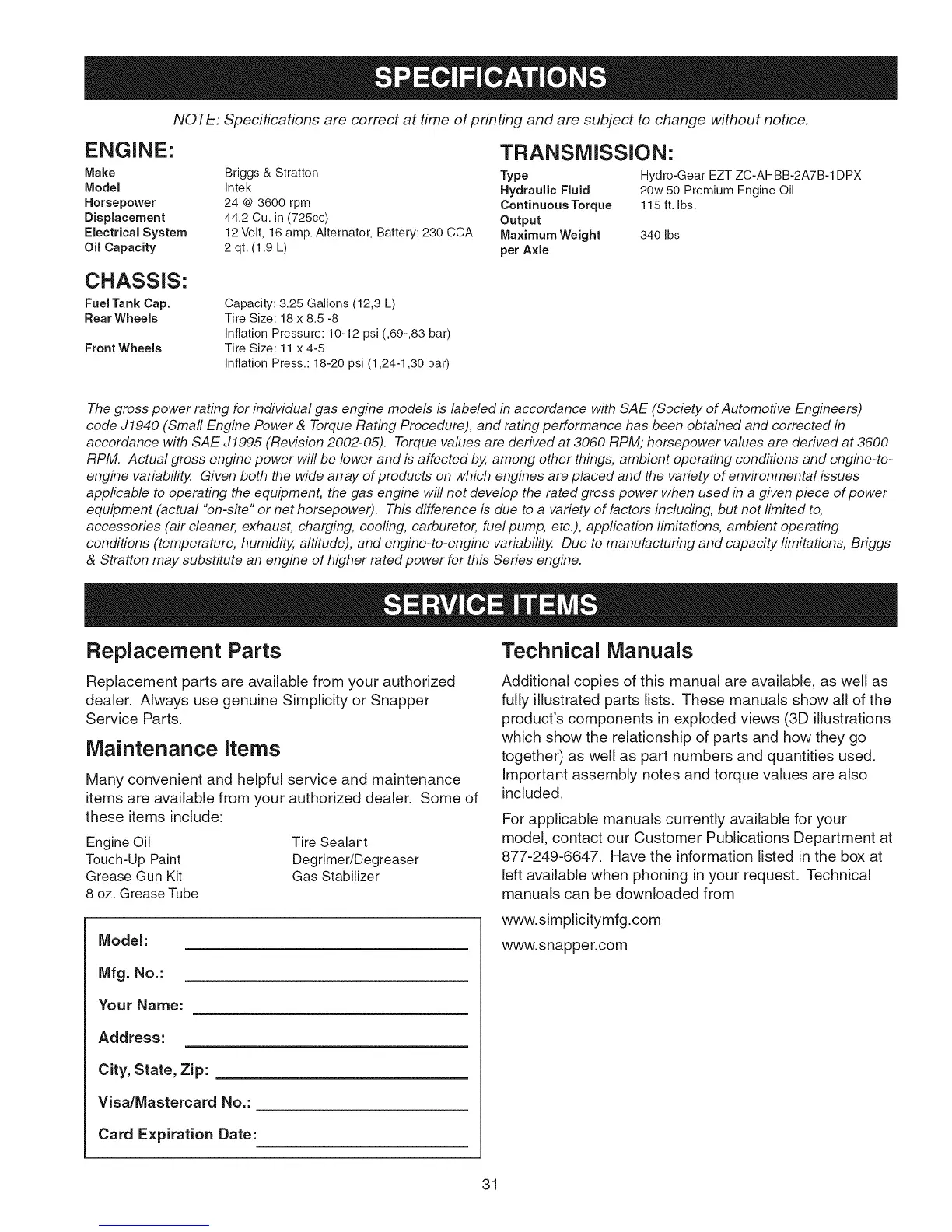

NOTE: Specifications are correct at time of printing and are subject to change without notice.
ENGINE:
Make Briggs & Stratton
Model Jntek
Horsepower 24 @3600 rpm
Displacement 44.2 Cu. in (725cc)
EJectrical System 12 Volt, 16amp.Alternator, Battery: 230 CCA
OiJCapacity 2 qt. (1.9 L)
TRANSMISSION:
Type Hydro-Gear EZT ZC-AHBB-2A7B-1DPX
HydrauJic Fluid 20w 50 Premium EngineOil
Continuous Torque 115 ft. Ibs.
Output
MaximumWeight 340 Ibs
per Axle
CHASSIS:
FueJTank Cap.
Rear WheeJs
Front WheeJs
Capacity: 3.25 Gallons (12,3 L)
Tire Size: 18 x 8.5 -8
Inflation Pressure: 10-12 psi (,69-,83 bar)
Tire Size: 11 x 4-5
Inflation Press.: 18-20 psi (1,24-1,30 bar)
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engineers)
code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in
accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values are derived at 3600
RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operating conditions and engine-to-
engine variability, Given both the wide array of products on which engines are placed and the variety of environmental issues
applicable to operating the equipment, the gas engine will not develop the rated gross power when used in a given piece of power
equipment (actual "on-site" or net horsepower). This difference is due to a variety of factors including, but not limited to,
accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating
conditions (temperature, humidity, altitude), and engine-to-engine variability, Due to manufacturing and capacity limitations, Briggs
& Stratton may substitute an engine of higher rated power for this Series engine.
Replacement Parts
Replacement parts are available from your authorized
dealer. Always use genuine Simplicity or Snapper
Service Parts.
Maintenance items
Many convenient and helpful service and maintenance
items are available from your authorized dealer. Some of
these items include:
Engine Oil
Touch-Up Paint
Grease Gun Kit
8 oz. Grease Tube
Tire Sealant
Degrimer/Degreaser
Gas Stabilizer
Model:
Mfg. No.:
Your Name:
Address:
City, State, Zip:
Visa/Mastercard No.:
Card Expiration Date:
Technical Manuals
Additional copies of this manual are available, as well as
fully illustrated parts lists. These manuals show all of the
product's components in exploded views (3D illustrations
which show the relationship of parts and how they go
together) as well as part numbers and quantities used.
Important assembly notes and torque values are also
included.
For applicable manuals currently available for your
model, contact our Customer Publications Department at
877-249-6647. Have the information listed in the box at
left available when phoning in your request. Technical
manuals can be downloaded from
www.simplicitymfg.com
www.snapper.com
