MaJflteflaflce
3. Push the idler pulley arm (A, Figure 28) to relieve belt
tension. Drop the belt from the PTO (electric clutch)
pulley (B).
IMPORTANT: Note the position of all belt guides relative
to the belt and pulleys before loosening,
Left Side of Mower

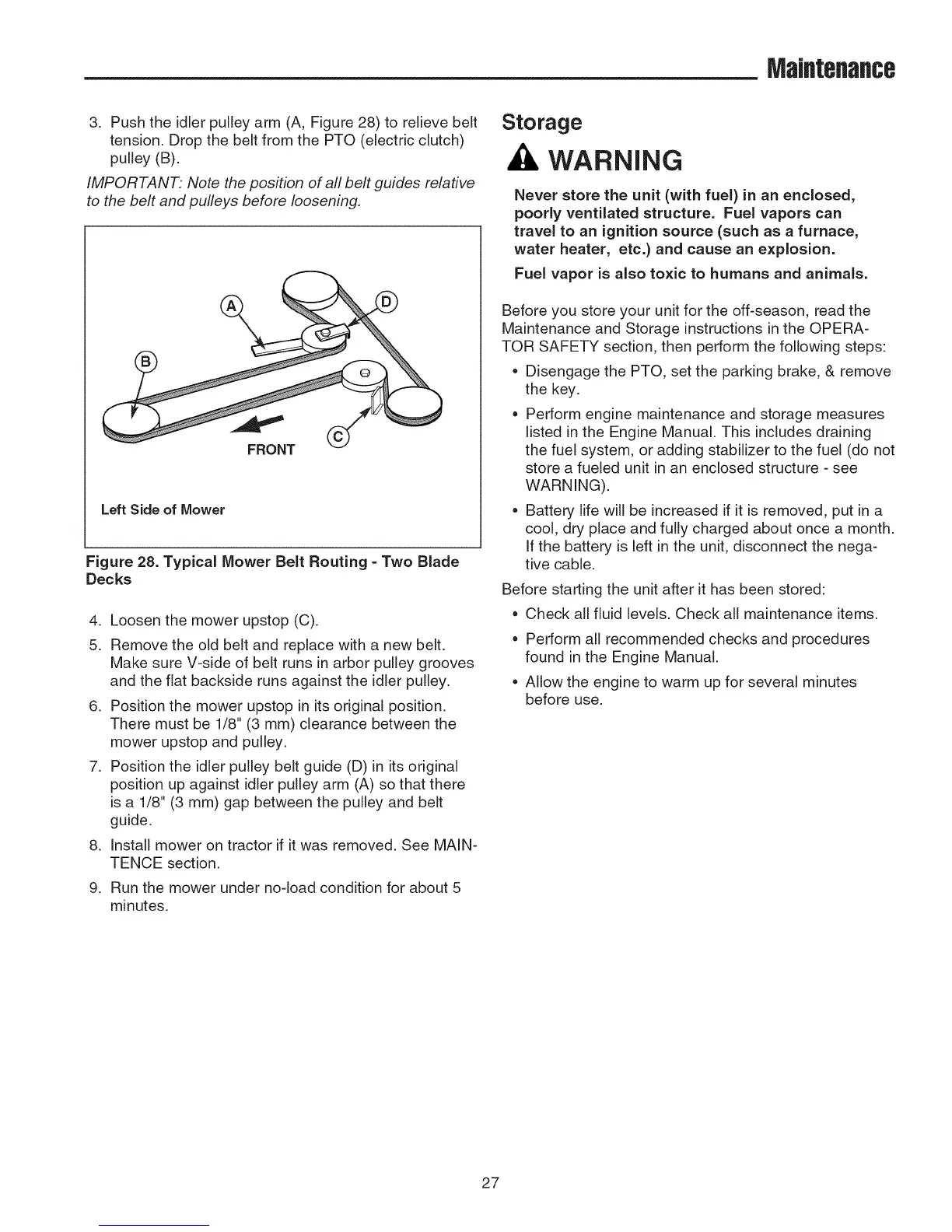

Figure 28. Typical Mower Belt Routing =Two Blade
Decks
,
9.
4. Loosen the mower upstop (C).
5. Remove the old belt and replace with a new belt.
Make sure V-side of belt runs in arbor pulley grooves
and the fiat backside runs against the idler pulley.
6. Position the mower upstop in its original position.
There must be 1/8" (3 mm) clearance between the
mower upstop and pulley.
7. Position the idler pulley belt guide (D) in its original
position up against idler pulley arm (A) so that there
is a 1/8" (3 mm) gap between the pulley and belt
guide.
Install mower on tractor if it was removed. See MAIN-
TENCE section.
Run the mower under no-load condition for about 5
minutes.
Storage
WARNING
Never store the unit (with fuel) in an enclosed,
poorly ventilated structure. Fuel vapors can
travel to an ignition source (such as a furnace,
water heater, etc.) and cause an explosion.
Fuel vapor is also toxic to humans and animals.
Before you store your unit for the off-season, read the
Maintenance and Storage instructions in the OPERA-
TOR SAFETY section, then perform the following steps:
* Disengage the PTO, set the parking brake, & remove
the key.
Perform engine maintenance and storage measures
listed in the Engine Manual. This includes draining
the fuel system, or adding stabilizer to the fuel (do not
store a fueled unit in an enclosed structure - see
WARNING).
* Battery life will be increased if it is removed, put in a
cool, dry place and fully charged about once a month.
If the battery is left in the unit, disconnect the nega-
tive cable.
Before starting the unit after it has been stored:
Check all fluid levels. Check all maintenance items.
Perform all recommended checks and procedures
found in the Engine Manual.
Allow the engine to warm up for several minutes
before use.
