4 SOCOMEC - Réf. : 875 518 B-GB
• the package contains the product
fitted with a pull-out terminal block,
• operating instructions.
Check the following points as soon
as you receive the Diris Ap package:
• the packing is in good condition,
• the product has not been damaged
during transit,
• the product reference number con-
forms to your order,
NB:
For personnel and product safety
please read the contents of these
operating instructions carefully before
connecting.
PRELIMINARY OPERATIONS
GENERAL INFORMATION
INSTALLATION
FUNCTIONS
This module provides 2 entirely con-
figurable 0/4-20 mA analog outputs
(threshold at 0 or 4 mA and threshold
at 20 mA) on I1, I2, I3, In, U12, U23,
U31,V1, V2, V3, ΣP, ΣQ, ΣS, ΣPF and F.
Up to a maximum of 2 modules, that
is 4 analog outputs installed on one
Diris Ap.

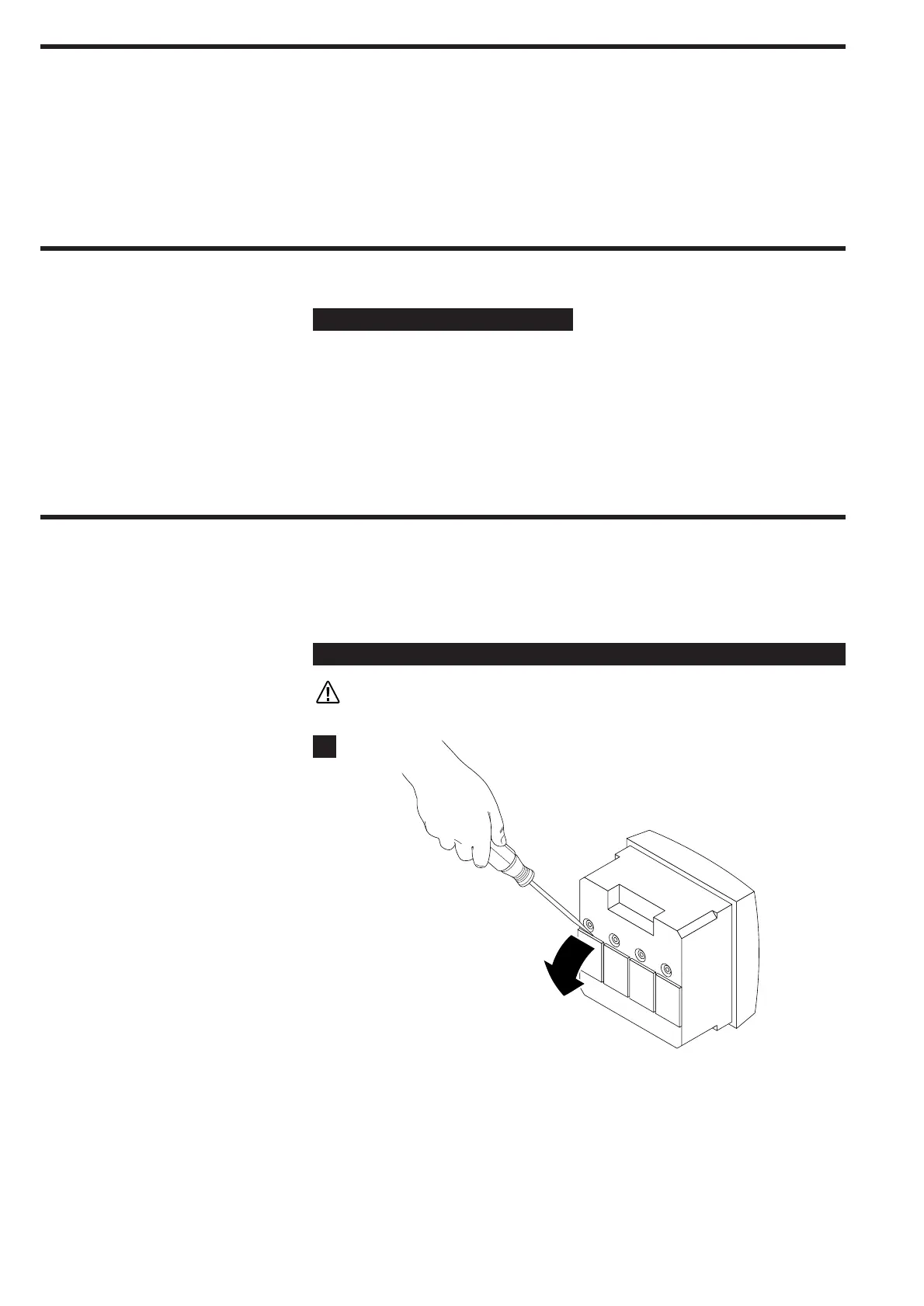

The module is fitted onto the back of
the DIRIS Ap in one of the 4 positions
provided.
CONNECTION
DIRIS 342 A
1
The DIRIS Ap must be switched off
