6 SOCOMEC - Réf. : 875 518 B-GB
PROGRAMMING

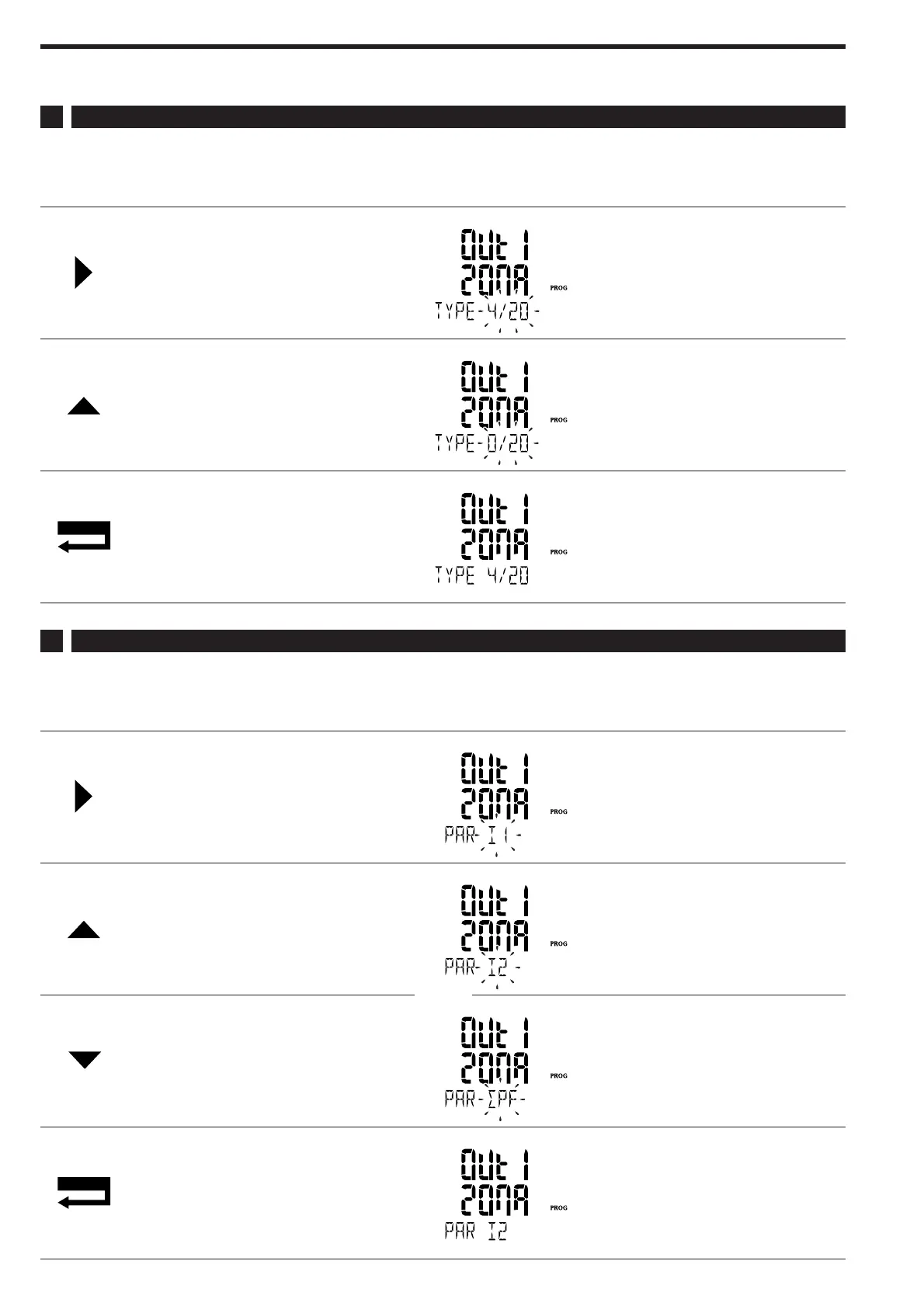

PROGRAMMING THE N° 1 ANALOG OUTPUT TYPE (OUt 1 20 MA TYPE)1
NB: The type default setting is 4-20 mA. If you want this setting, press ▼. You will pass to number 1 analog output
allocation programming (OUt 1 20 MA PAR). If not, proceed as follows:
KEYS INSTRUCTIONS DISPLAY COMMENT
Press once To display flashing 4-20 mA.
PROGRAMMING OF THE N° 1 ANALOG OUTPUT ALLOCATION (OUt 1 20 MA PAR)2
NB: The allocation default setting is I1. If you want this allocation, press ▼. You will pass to value at 0 or 4 mA pro-
gramming (OUt 1 20 MA LV). If not, proceed as follows:
KEYS INSTRUCTIONS DISPLAY COMMENT
Press once To display flashing I1.
Press once
Press again for:
I3, In, U12, U23, U31, V1, V2, V3, ΣP,
ΣQ, ΣS, ΣPF, F, I1, I2.
Press once
Press again for:
F, ΣS, ΣQ, ΣP, V3, V2, V1, U31, U23,
U12, In, I3, I2, I1.
Press once
Confirm size.
Press ▼ to programme the value at 0
or 4 mA (LV).
Press once
To select 0-20 mA.
Press again for 4 – 20 mA.
Press once
Confirm type.
Press ▼ to programme its allocation
or
