socomec DIRIS Ap User Manual

SOCOMEC - Réf. : 875 518 B-GB 7

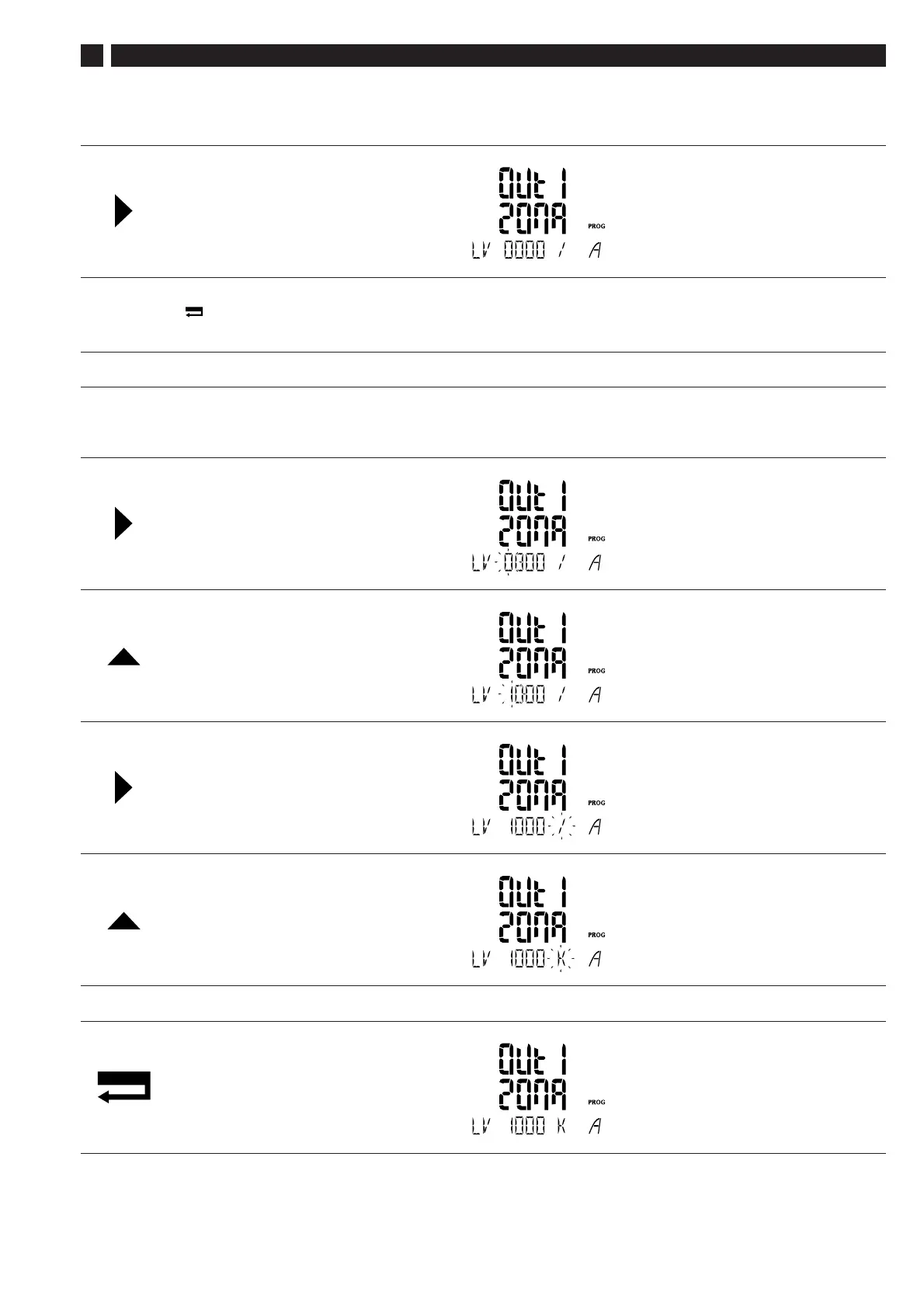

PROGRAMMING OF THE N° 1 ANALOG OUTPUT VALUE AT 0 OR 4 mA (OUt 1 20 MA LV)3
NB: The type default setting is 0 mA (LV 0000). If you want this setting, press ▼. You will pass to value at 20 mA pro-
gramming (OUt 1 0 MA HV). If not, proceed as follows:
KEYS INSTRUCTIONS DISPLAY COMMENT
Press once
Press as many times as necessary to
move to the right or on  to move to
the left.
KEYS INSTRUCTIONS DISPLAY COMMENT
Press once To display flashing 1
st
digit.
Press once To increment the 1
st
digit.
Press four times To display flashing 5
th
digit.
Press once Press again for : M, / and K
Press once
To confirm value .
Press ▼ to programme the value at 20
mA (HV).
Press on ▼ to decrement or on ▲ to increment selected digit value.
Press once on to confirm value.
Press once on ▼ to pass to value at 20 mA programming (OUt 1 20 MA HV).
NB: the first four digits correspond to the value in decimals and the sixth digit to the weight /, K (kilo) or M (Mega).
NB: for ∑P, ∑Q, ∑S and ∑PF the lower threshold (LV) corresponds to the negative value (example : -1000 kW).
Example: programming of 1000 kilo once entered in the OUt 1 20 MA LV menu
