Sony Bravia KDL-75W850C User Manual

8
US
ȩǬ VIDEO IN, /ǧ COMPONENT
IN
• For a composite connection:
Use VIDEO IN, and ǧ (L/R) of /ǧ
COMPONENT IN*.
• For a component connection:
Use Y, P
B, PR, and ǧ (L/R).
Ȫ DIGITAL AUDIO OUT (OPTICAL)
ȫˤ LAN
Ȭ CABLE/ANTENNA
Connect to your cable or antenna.
ȭ REMOTE IR IN
REMOTE Serial Control
• These jacks are for receiving the
external control signal. Enables
extended control of the TV using
RS232C via the IR IN and Serial Control
jacks.
IR IN : connect to the IR out terminal
of
the home controller.
Serial Control : connect to the RS232C
terminal of the home controller.
• Take care to not connect to
headphones or an external audio
system.
• If [RS232C Control] is set to [On],
[B
RAVIA Sync Settings] are not
available.
 USB 1/2
• Connecting a large USB device may
interfere with other connected
devices beside it.
• When connecting a large USB device,
connect to the USB 1 jack.
ȯ HDMI IN 2/3/4
If connecting a digital audio system
that is compatible with Audio Return
Channel (ARC) technology, use HDMI
IN 4. If not, an additional connection
with DIGITAL AUDIO OUT (OPTICAL) is
necessary.
Ȱ AUDIO OUT /
To listen to the TV's sound through
the connected equipment, press
HOME. Select [Settings]  [Sound]
 [Headphone/Audio Out] and then
select the desired item.
ȱ HDMI IN 1/MHL
You can connect your MHL (Mobile
High-definition Link) device using an
HD quality MHL cable.
* When connecting mono equipment, connect to
the L (MONO) audio jack.

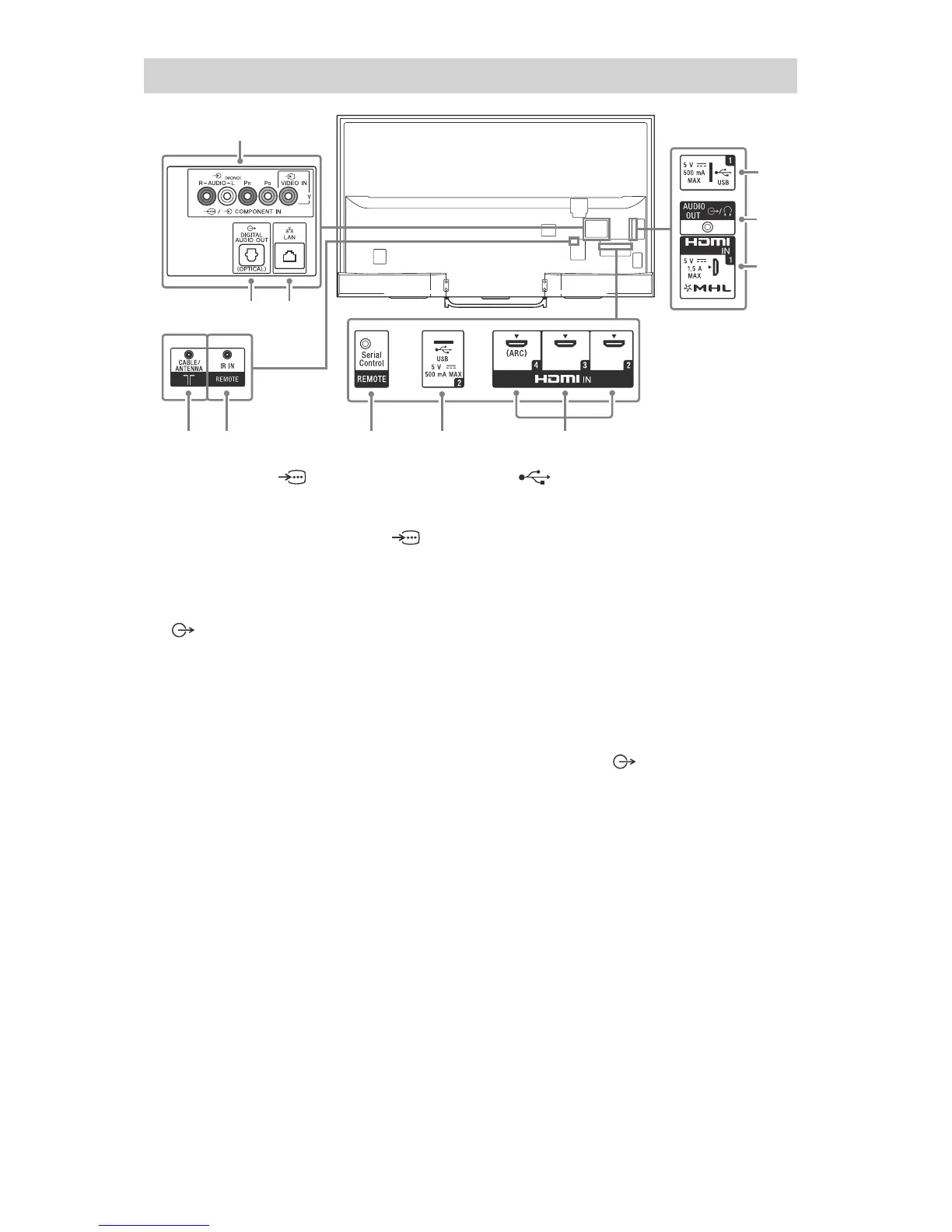

Inputs and Outputs
Ȯ
Ȱ
ȱ
Ȫȫ
ȭȬ
ȭ Ȯ
ȩ
ȯ

Sony Bravia KDL-75W850C Specifications

General

Screen Type	led
Wall Mount	400mm x 300mm
Tuner	digital
Screen Size	74.5 inches, 75 inches
Refresh Rate	120hz
Closed Captioning	yes
HDR	no
Built-In Speakers	yes
Surround Sound	dolby digital plus, dolby pulse, surround sound
Speakers Output	20 watts
USB Ports	2
RF Antenna	yes
Network	built-in wi-fi
Headphones Output	yes
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
SmartTV	sony smart tv
Remote Control	standard
3D	yes
Power Consumption	250 kilowatt hours
Depth with Stand	13 inches
Height with Stand	40 inches
Width with Stand	66 inches
Net Weight with Stand	76.9 pounds
Depth without Stand	3.125 inches
Height without Stand	38.25 inches
Net Weight without Stand	74.3 pounds
