− 9 (EN) −
EN
Note
Pilot holes must be drilled to a depth of 75mm
(3inch), using a 5.5mm (7/32inch) diameter drill
bit.

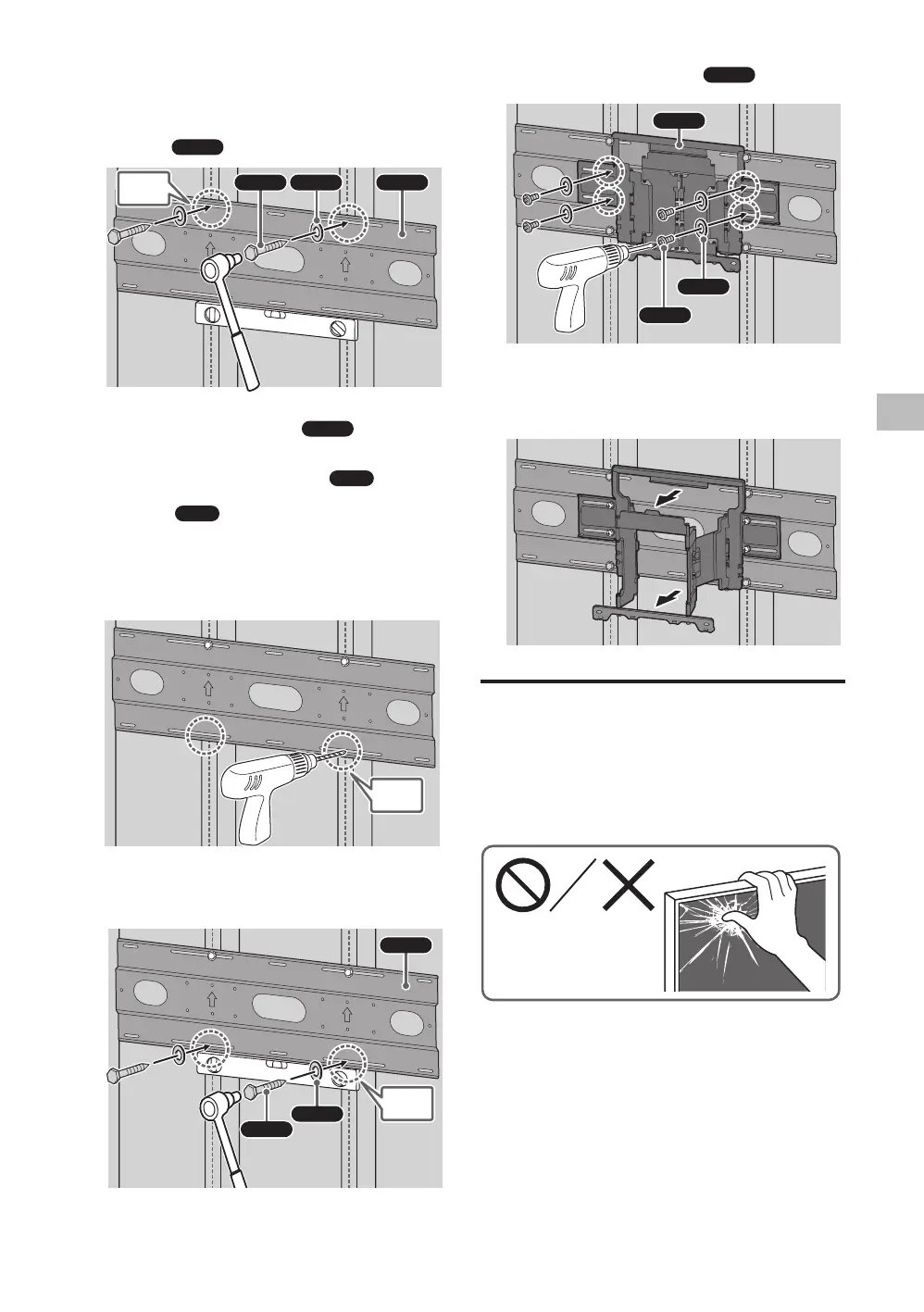

5 Install
WM4
on the wall.
× 2
WW1WS2 WM4
Note
Use a level to check whether
WM4
is level.
Precaution
Do not over-tighten the lag bolts
WS2
. Improper
tightening could reduce the holding power of the
lag bolts
WS2
.
6 Drill lower pilot holes on the
marks. (Refer step 4 for the drill
instruction.)
× 2
7 Fit the screws and spacers to the
holes.
WS2
WW1
× 2
WM4
Note
Use a level to check whether
WM4
is level.
8
WM1
WW2
WS1
9 Pull out the arm of the bracket to
the end.
Preparing for the Installation
of the TV
Note
Be sure to store the removed screws and unused parts
in a safe place, keeping them away from children.
To Next Page
