1-4. Installing the Main Panel
n
When installing the main panel into the control console, be
sure to install it with three persons or more.
Install the main panel by following the procedure de-
scribed below.
Tools required
For the 4-line configuration (4ME/3ME with built-in AUX
bus, as a single unit)
Screws (B4 x 6) : 8 pcs
For the 3-line configuration (3ME with AUX bus separate
type/2ME)
Screws (B4 x 6) : 6 pcs
1. Remove the module covers in the right and left.
2. Remove the screws and remove the cap (L) and (R)
respectively.
1-4. Installing the Main Panel
3. Two persons should hold the main panel while a third
person positions into the control console.
4. Fix the main panel to the control console with the
screws.
(The illustration below shows the 4-row configuration.)
5. Install all of the right and left module covers, and the
caps (L) and (R) by reversing the steps 1 and 2 of
removal.

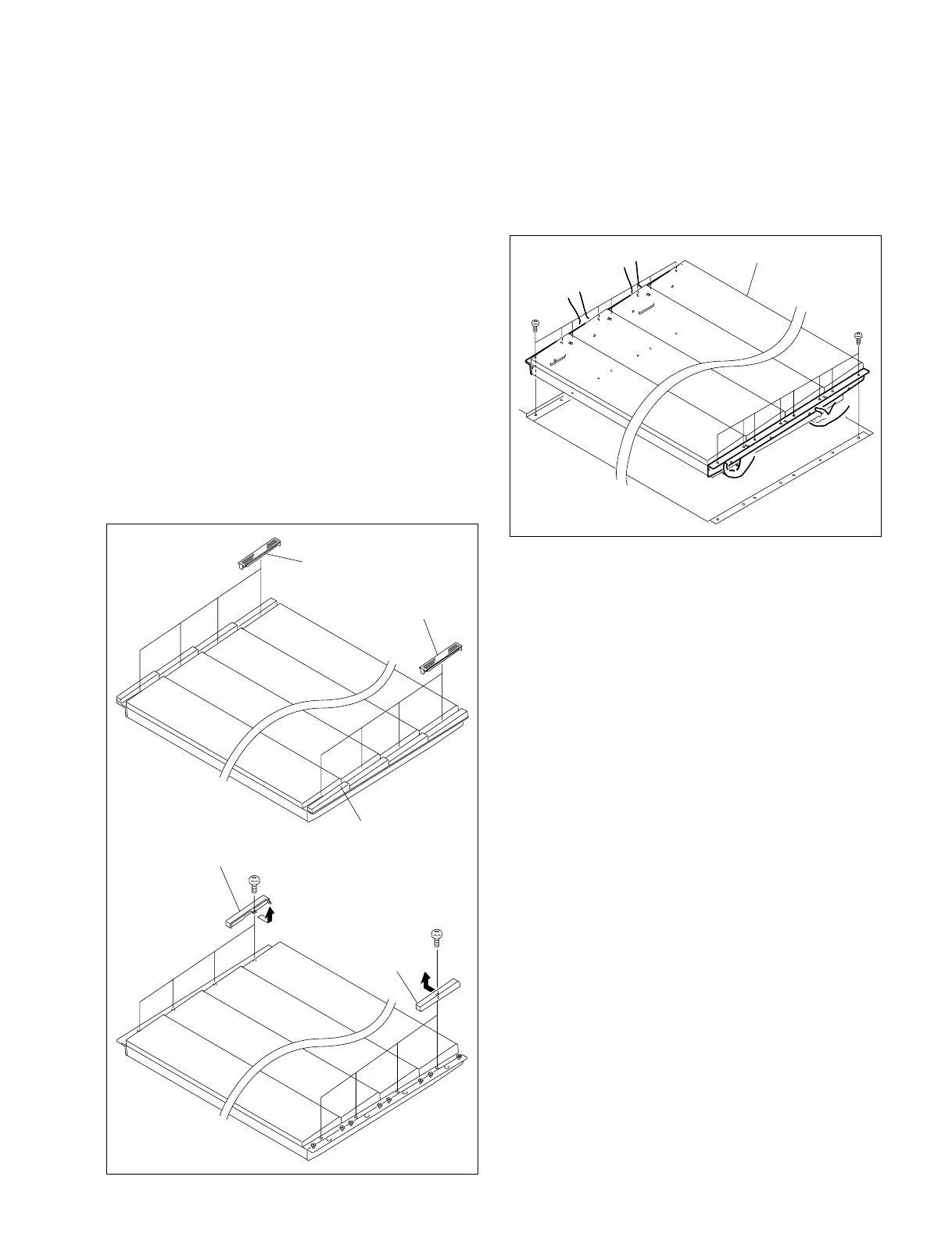

Module cover
Cap
Module cover
B3 x 6
B3 x 6
Cap (R)
Cap (L)
B4 x 6
B4 x 6
Main panel
