1-11. System Connection
1-11-1. System Connection of the MVS-8000 Series
Configure the MVS-8000 series system connection referring to the connection example as shown below.
(This connection example uses MKS-8010A. The same terminals are used for MKS-8010.)

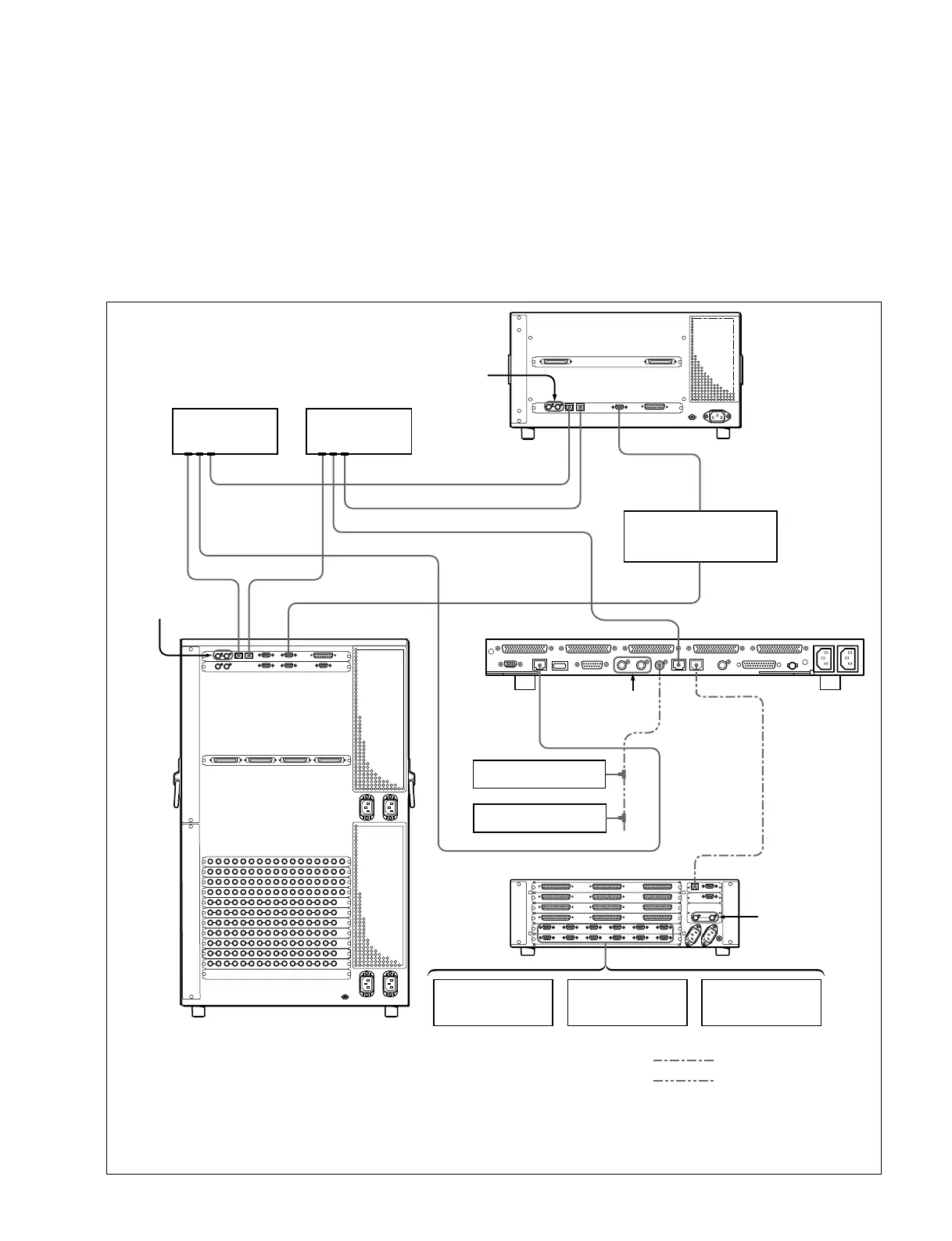

Connection example
1-11. System Connection
Reference video
signal (*2)
CTRL EDITOR
DATA LAN
DATA CTRL REMOTE 1
PERIPH
Ethernet switch
(*1)
Ethernet switch
(*1)
Reference video signal (*2)
Reference video
signal (*2)
DME Processor Pack
MVE-8000
Editing Control System
BVE-9100
Device Control Unit Pack DCU-8000
VTR DDR
Audio mixer
Switcher Processor Pack
MVS-8400/8300/8200
Crossover cable
BNC cable
CTRL
REMOTE
DATA
PERIPH
System Control Unit
MKS-8010A
Reference video
signal (*2)
BKS-R series
HDS-X series
(*1) : Connect each LAN (CTRL, DATA) to the separate Ethernet switches respectively.
However, a single Ethernet switch can be used for connecting each LAN.
For information about Ethernet switches that can be used in an MVS system, contact your local Sony Sales Office/Service Center.
For detailed information about setting up the Ethernet switch, refer to the documentation supplied with the switch.
(*2) : Terminate the system with the 75Z terminators supplied. The 75Z terminators are supplied with the equipment.
